22303 TE (320-D) - Toro Dingo Compact Utility Loader (SN: 099000001 - 099999999) (1999) HYDRAULIC TANK ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

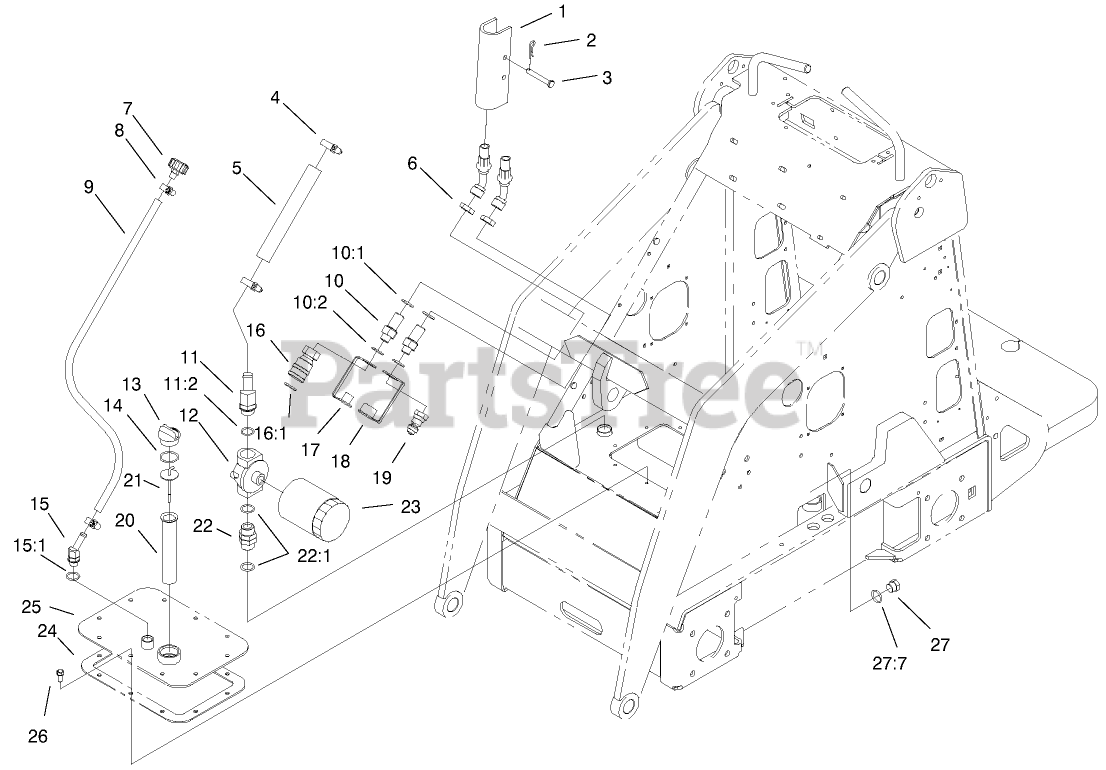

HYDRAULIC TANK ASSEMBLY Parts Diagram

  • Title
1

Toro 98-4675-01

LOCK-CYLINDER

$34.99

$

Usually ships in 3-6 days

0

2

Toro 3290-467

PIN-HAIR

$0.99

$

In Stock, Qty 6

0

3

Toro 283-52

PIN-CLEVIS

$12.99

$

In Stock, only 1 left!

0

4

Toro 2412-129

CLAMP-HOSE

$4.99

$

In Stock, Qty 7

0

5

Toro 98-2713

HOSE-SUCTION, HYD

$31.99

$

In Stock, only 2 left!

0

6

Toro 340-127

NUT-BULKHEAD

$6.99

$

Usually ships in 3-6 days

0

7

Toro 68-6150

BREATHER

$28.99

$

In Stock, only 1 left!

0

8

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

9

Toro 100-1748

HOSE-VENT

$81.99

$

Usually ships in 3-6 days

0

10

Toro 98-9907

UNION-BULKHEAD

$92.99

$

Usually ships in 3-6 days

0

10:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

10:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 8

0

11

Toro 99-3016

FITTING-45 DEG

$

$

Not available

11:2

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

12

Toro 92-5821

HEAD-FILTER

$199.99

$

Usually ships in 3-6 days

0

13

Toro 93-7498

PLUG-PLASTIC

$27.99

$

In Stock, only 1 left!

0

14

Toro 237-123

O-RING
(Superseded to 237-101)

$4.49

$

In Stock, only 1 left!

0

15

Toro 354-126

FITTING-HYD, 45 DEG

$58.99

$

Usually ships in 3-6 days

0

15:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 8

0

16

Toro 98-4699

FEMALE-DISCONNECT, QUICK

$153.99

$

In Stock, only 2 left!

0

16:1

Toro 100-4165

SEAL KIT

$

$

Not available

17

Toro 98-9913

Dust Plug
(Superseded to 104-1281)

$27.99

$

Usually ships in 3-6 days

0

18

Toro 98-9912

Cap-Dust
(Superseded to 104-1282)

$

$

Not available

19

Toro 98-4698

MALE-DISCONNECT, QUICK

$66.99

$

In Stock, only 1 left!

0

20

Toro 61-2790

FILTER-SCREEN

$

$

Not available

21

Toro 99-1351

DIPSTICK

$

$

Not available

22

Toro 98-9906

FITTING-THREAD, STRAIGHT

$74.99

$

Usually ships in 3-6 days

0

22:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

23

Toro 54-0110

FILTER-OIL, TRANSMISSION

$15.99

$

In Stock, only 2 left!

0

24

Toro 98-9927

GASKET-COVER

$70.99

$

Usually ships in 3-6 days

0

25

$213.99

$

Usually ships in 3-6 days

0

26

Toro 98-9940

SCREW

$2.49

$

In Stock, only 3 left!

0

27

Toro 353-988

PLUG-HEX

$14.99

$

Usually ships in 3-6 days

0

27:7

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 8

0
