22303 TE (320-D) - Toro Dingo Compact Utility Loader (SN: 099000001 - 099999999) (1999) FUEL TANK AND AIR FILTER ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

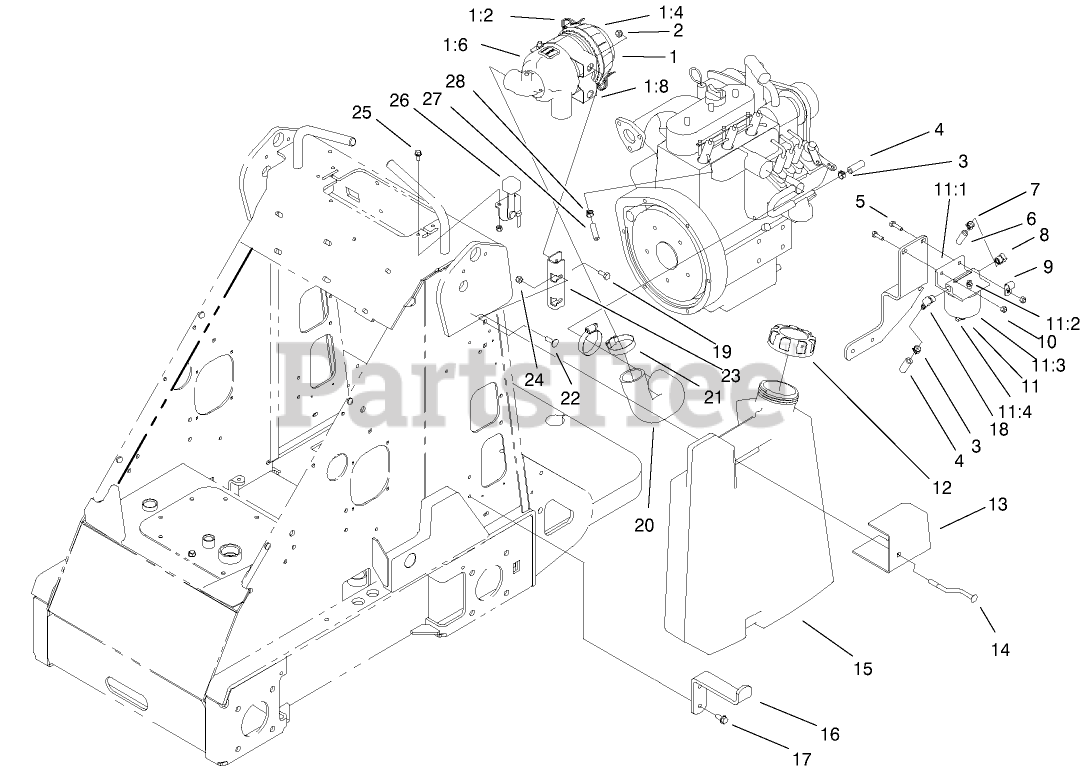

FUEL TANK AND AIR FILTER ASSEMBLY Parts Diagram

  • Title

1

Toro 99-3160

AIR CLEANER ASM

$331.99

$

Usually ships in 3-6 days

0

1:2

Toro 99-3174

CLIP-CLEANER, AIR

$17.99

$

In Stock, Qty 11

0

1:4

Toro 99-3176

COVER

$86.99

$

In Stock, only 1 left!

0

1:6

Toro 99-3184

HOUSING
(Superseded to 117-1727)

$189.99

$

In Stock, only 2 left!

0

1:8

Toro 99-3197

MOUNTING BRACKET ASM

$105.99

$

Usually ships in 3-6 days

0

1:1

Toro 99-3173

ELEMENT-FILTER, AIR

Note: Not illustrated

$64.99

$

In Stock, only 1 left!

0

1:3

Toro 99-3175

VALVE-EJECTOR, DUST

Note: Not illustrated

$35.99

$

Usually ships in 3-6 days

0

1:5

Toro 99-3183

TUBE ASM
(Superseded to 99-3160)

Note: Not illustrated

$331.99

$

Usually ships in 3-6 days

0

1:7

Toro 99-3198

FILTER-SAFETY

Note: Not illustrated

$64.99

$

Usually ships in 3-6 days

0

2

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

3

Toro 92-2379

CLAMP-HOSE

$0.99

$

Usually ships in 3-6 days

0

4

Toro 63-7627

HOSE-FUEL
(Superseded to 110-4113)

$11.99

$

Usually ships in 3-6 days

0

5

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Toro 99-1438

HOSE-FUEL
(Superseded to 94-1349)

$9.99

$

Usually ships in 3-6 days

0

7

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

8

Toro 304-96

ELBOW

$40.99

$

Usually ships in 3-6 days

0

9

Toro 2412-73

CLAMP-R

$3.49

$

Usually ships in 3-6 days

0

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

11

Toro 63-7650

SEPARATOR-FILTER / WATER

$177.99

$

Usually ships in 3-6 days

0

11:1

Toro 63-8280

HEAD ASM
(Superseded to 63-7650)

$177.99

$

Usually ships in 3-6 days

0

11:2

Toro 63-8290

VENT-AIR

$22.99

$

In Stock, only 1 left!

0

11:3

Toro 63-8300

ELEMENT-SPIN ON

$31.99

$

Usually ships in 3-6 days

0

11:4

Toro 63-8310

VALVE-DRAIN

$15.99

$

Usually ships in 3-6 days

0

12

Toro 98-2710

DIESEL FUEL CAP ASM

$59.99

$

Usually ships in 3-6 days

0

13

Toro 99-1444-03

PLATE-MOUNT, LEFT

$75.99

$

In Stock, only 1 left!

0

14

Toro 98-4657

BOLT-MOUNT

$40.99

$

Usually ships in 3-6 days

0

15

Toro 99-1425

Fuel Tank ASM
(Superseded to 105-4050)

$

$

Not available

15:3

Toro 100-1596

FITTING-90 DEG
(Superseded to 104-5228)

Note: Not illustrated

$18.99

$

Usually ships in 3-6 days

0

15:4

Toro 104048

VALVE-FUEL

Note: Not illustrated

$31.99

$

In Stock, only 1 left!

0

16

Toro 98-4656-03

MOUNT-BOTTOM, TANK

$36.99

$

Usually ships in 3-6 days

0

17

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

18

Toro 353-781

FITTING-ELBOW

$27.99

$

Usually ships in 3-6 days

0

19

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Toro 99-5041

HOSE-CLEANER, AIR

$111.99

$

Usually ships in 3-6 days

0

21

Toro 2412-92

CLAMP-HOSE

$3.49

$

Usually ships in 3-6 days

0

22

Toro 3230-2

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

23

Toro 99-3080-03

MOUNT-CLEANER, AIR

$82.99

$

Usually ships in 3-6 days

0

24

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

25

Toro 3234-33

SCREW-HHF

$0.99

$

In Stock, Qty 10

0

26

Toro 99-1422

CONTROL-THROTTLE

$150.99

$

Usually ships in 3-6 days

0

27

Toro 76-4420

HOSE-LINE, FUEL

$

$

Not available

28

Toro 2412-146

CLAMP-HOSE

$1.99

$

In Stock, Qty 10

0
