22303 TE (320-D) - Toro Dingo Compact Utility Loader (SN: 099000001 - 099999999) (1999) CYLINDER HEAD ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

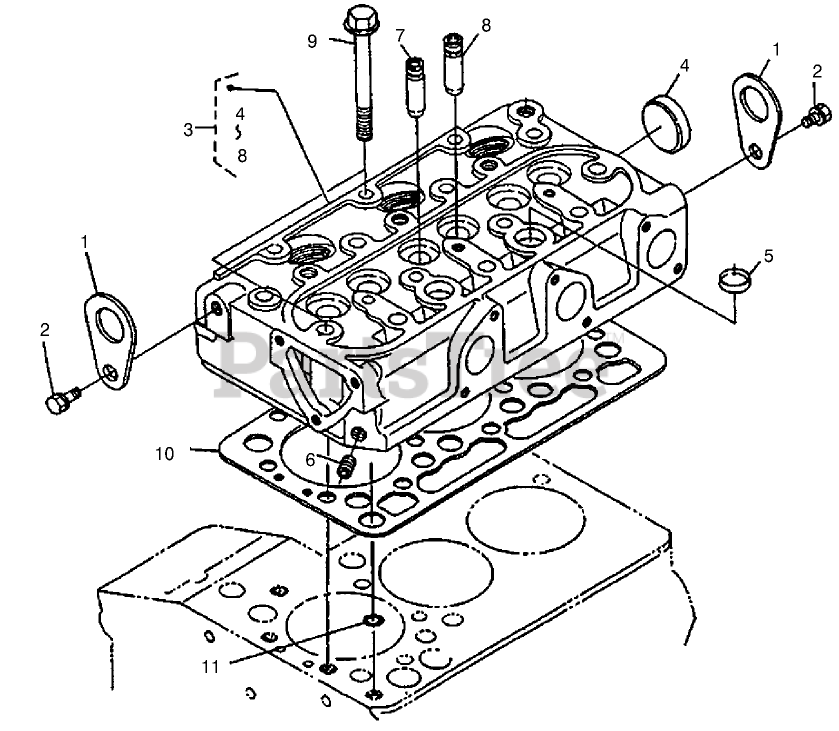

CYLINDER HEAD ASSEMBLY Parts Diagram

  • Title

1

Toro 98-7531

HOOK-ENGINE

$11.99

$

Usually ships in 3-6 days

0

2

Toro 98-7526

BOLT

$1.49

$

Usually ships in 3-6 days

0

3

Toro 100-2246

HEAD-CYLINDER, COMP.

$1632.99

$

Usually ships in 3-6 days

0

4

Toro 98-9395

CAP-SEALING
(Superseded to 105-3705)

$9.99

$

Usually ships in 3-6 days

0

5

Toro 98-9389

CAP-SEALING

$8.49

$

Usually ships in 3-6 days

0

6

Toro 98-7540

PLUG
(Superseded to 98-9687)

$4.49

$

Usually ships in 3-6 days

0

7

Toro 100-1882

GUIDE-VALVE, INLET

$16.99

$

In Stock, only 3 left!

0

8

Toro 100-1883

GUIDE-VALVE, EXHAUST

$16.99

$

In Stock, only 3 left!

0

9

Toro 100-1820

BOLT-HEAD, CYLINDER

$15.99

$

Usually ships in 3-6 days

0

10

Toro 100-2043

GASKET-HEAD, CYLINDER

$

$

Not available

11

Toro 98-7509

O-RING

$5.99

$

Usually ships in 3-6 days

0
