22303 (320-D) - Toro Dingo Compact Utility Loader (SN: 260000001 - 260999999) (2006) WATER FLANGE AND THERMOSTAT ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

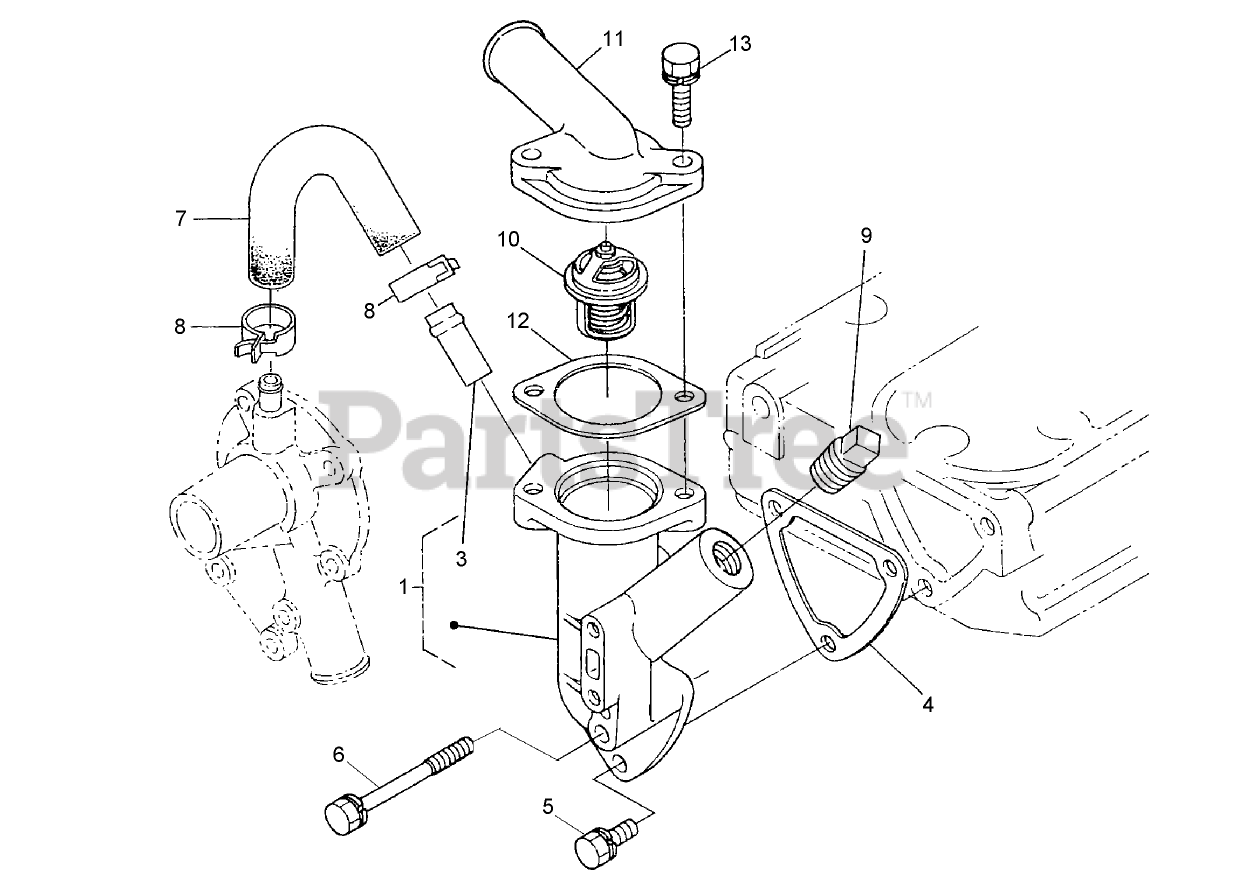

WATER FLANGE AND THERMOSTAT ASSEMBLY Parts Diagram

  • Title

1

Toro 100-2165

WATER FLANGE ASM

$142.99

$

Usually ships in 3-6 days

0

3

Toro 98-9580

PIPE-RETURN, WATER

$6.49

$

Usually ships in 3-6 days

0

4

Toro 112-2834

GASKET-FLANGE, WATER
(Superseded to 110-3820)

$3.99

$

Usually ships in 3-6 days

0

5

Toro 98-7692

BOLT

$1.49

$

Usually ships in 3-6 days

0

6

Toro 105-3797

BOLT

$2.49

$

Usually ships in 3-6 days

0

7

Toro 100-2017

PIPE-RETURN, WATER

$15.99

$

Usually ships in 3-6 days

0

8

Toro 98-9579

BAND-PIPE

$6.99

$

Usually ships in 3-6 days

0

9

Toro 100-2169

PLUG

$14.99

$

Usually ships in 3-6 days

0

10

Toro 100-2053

THERMOSTAT ASM

$89.99

$

Usually ships in 3-6 days

0

11

Toro 100-2231

COVER-THERMOSTAT

$16.99

$

Usually ships in 3-6 days

0

12

Toro 100-2157

GASKET-THERMOSTAT

$15.99

$

In Stock, only 2 left!

0

13

Toro 98-9353

BOLT

$1.49

$

Usually ships in 3-6 days

0
