22303 (320-D) - Toro Dingo Compact Utility Loader (SN: 260000001 - 260999999) (2006) HYDRAULIC TANK AND FILTER ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

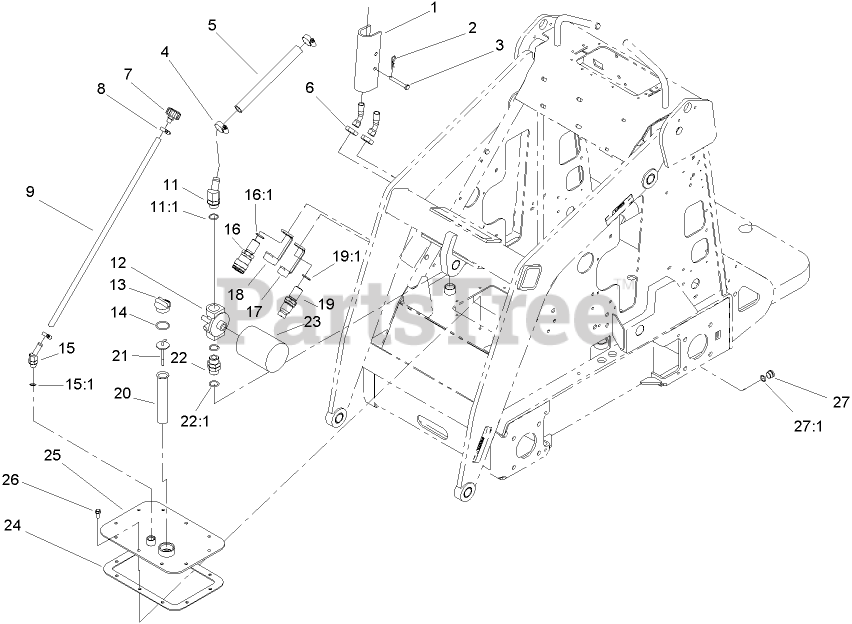

HYDRAULIC TANK AND FILTER ASSEMBLY Parts Diagram

  • Title
1

Toro 98-4675-01

LOCK-CYLINDER

$33.99

$

Usually ships in 3-6 days

0

2

Toro 3290-467

PIN-HAIR

$0.99

$

In Stock, Qty 6

0

3

Toro 283-52

PIN-CLEVIS

$12.99

$

In Stock, only 1 left!

0

4

Toro 2412-129

CLAMP-HOSE

$4.99

$

In Stock, Qty 7

0

5

Toro 98-4745

HOSE-HYD, SUCTION, HI

$63.99

$

Usually ships in 3-6 days

0

6

Toro 340-74

NUT-LOCK, BULKHEAD

$5.49

$

Usually ships in 3-6 days

0

7

Toro 68-6150

BREATHER

$27.99

$

In Stock, only 1 left!

0

8

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

9

Toro 100-1748

HOSE-VENT

$80.99

$

Usually ships in 3-6 days

0

11

Toro 354-127

ELBOW-45 DEG

$85.99

$

Usually ships in 3-6 days

0

11:1

Toro 237-81

O-RING

$2.99

$

In Stock, Qty 5

0

12

Toro 92-5821

HEAD-FILTER

$189.99

$

Usually ships in 3-6 days

0

13

Toro 93-7498

PLUG-PLASTIC

$27.99

$

In Stock, only 1 left!

0

14

Toro 237-123

O-RING
(Superseded to 237-101)

$3.99

$

In Stock, only 1 left!

0

15

Toro 354-126

FITTING-HYD, 45 DEG

$56.99

$

Usually ships in 3-6 days

0

15:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 13

0

16

Toro 105-8394

BULKHEAD COUPLER ASM

$292.99

$

Usually ships in 3-6 days

0

16:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 8

0

16:2

Toro 105-8396

SEAL KIT
(Superseded to 106-7692)

Note: Not illustrated

$233.99

$

Usually ships in 3-6 days

0

17

Toro 100-8815

CAP-DUST, NIPPLE

$15.99

$

Usually ships in 3-6 days

0

18

Toro 100-8816

CAP-DUST, COUPLER

$15.99

$

Usually ships in 3-6 days

0

19

Toro 105-8395

BULKHEAD NIPPLE ASM

$241.99

$

Usually ships in 3-6 days

0

19:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 8

0

19:2

Toro 100-6120

SEAL KIT

Note: Not illustrated

$104.99

$

Usually ships in 3-6 days

0

20

Toro 61-2790

FILTER-SCREEN

$

$

Not available

21

Toro 100-2097

DIPSTICK-OIL

$62.99

$

Usually ships in 3-6 days

0

22

Toro 98-9906

FITTING-THREAD, STRAIGHT

$72.99

$

Usually ships in 3-6 days

0

22:1

Toro 237-81

O-RING

$2.99

$

In Stock, Qty 5

0

23

Toro 54-0110

FILTER-OIL, TRANSMISSION

$15.99

$

In Stock, only 2 left!

0

24

Toro 98-9927

GASKET-COVER

$69.99

$

Usually ships in 3-6 days

0

25

$209.99

$

Usually ships in 3-6 days

0

26

Toro 98-9940

SCREW

$1.99

$

In Stock, only 3 left!

0

27

Toro 353-988

PLUG-HEX

$13.99

$

Usually ships in 3-6 days

0

27:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 13

0
