22303 (320-D) - Toro Dingo Compact Utility Loader (SN: 260000001 - 260999999) (2006) GEAR CASE AND OIL FILTER ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

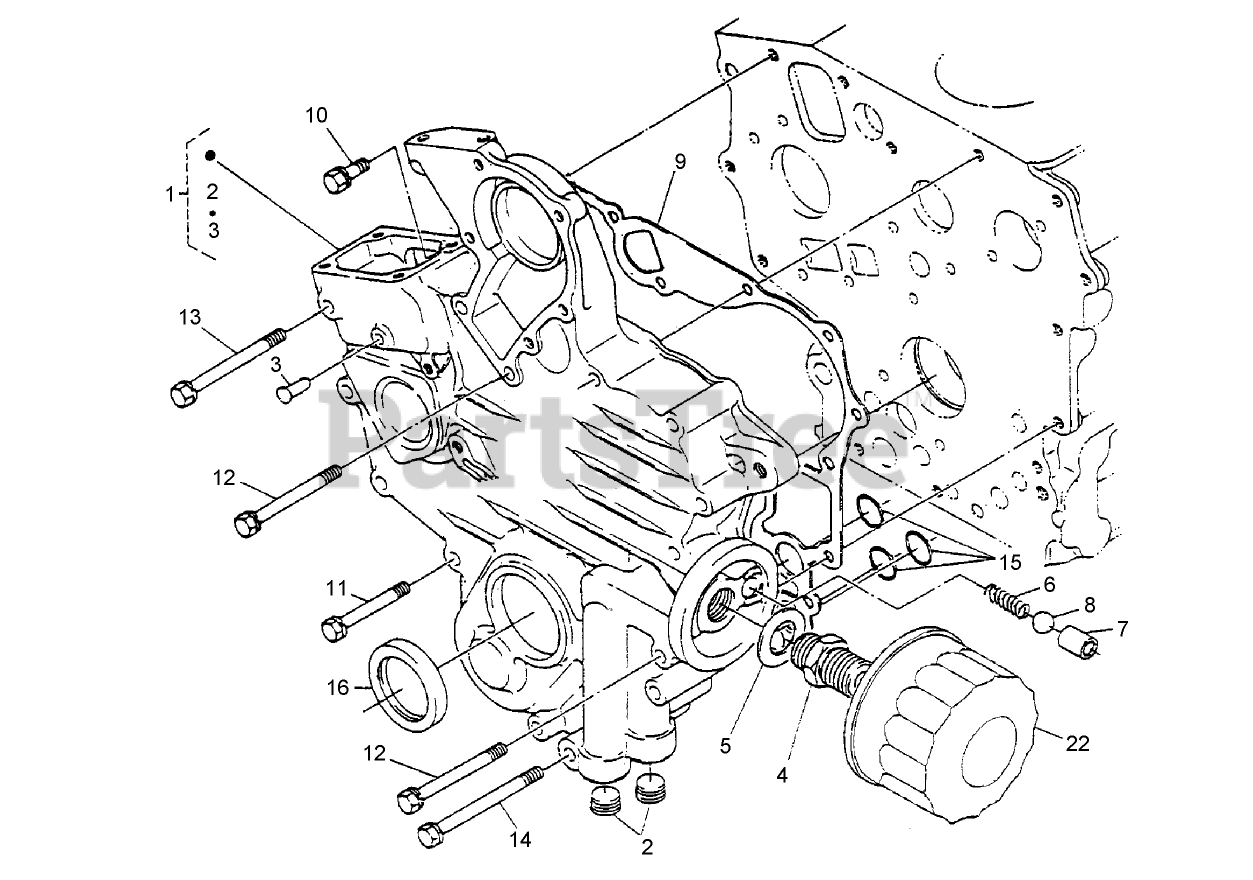

GEAR CASE AND OIL FILTER ASSEMBLY Parts Diagram

  • Title

1

Toro 112-2804

GEAR CASE ASM

$

$

Currently unavailable

2

Toro 98-7488

PLUG

$4.49

$

Usually ships in 3-6 days

0

3

Toro 100-1910

PIN-SPRING, START

$6.99

$

Usually ships in 3-6 days

0

4

Toro 98-9388

JOINT-PIPE

$48.99

$

Usually ships in 3-6 days

0

5

Toro 100-1926

WASHER-PLAIN

$2.99

$

Usually ships in 3-6 days

0

6

Toro 100-2004

SPRING

$22.99

$

Usually ships in 3-6 days

0

7

Toro 100-1894

SEAT-VALVE

$16.99

$

Usually ships in 3-6 days

0

8

Toro 100-1792

BALL

$2.49

$

Usually ships in 3-6 days

0

9

Toro 112-2805

GASKET-CASE, GEAR

$41.99

$

Usually ships in 3-6 days

0

10

Toro 98-7605

BOLT

$1.49

$

In Stock, Qty 7

0

11

Toro 105-3797

BOLT

$2.49

$

Usually ships in 3-6 days

0

12

Toro 100-1922

BOLT

$3.99

$

Usually ships in 3-6 days

0

13

Toro 100-1766

BOLT

$4.99

$

Usually ships in 3-6 days

0

14

Toro 100-1767

BOLT

$4.99

$

Usually ships in 3-6 days

0

15

Toro 100-1785

O-RING
(Superseded to 100-2206)

$8.49

$

Usually ships in 3-6 days

0

16

Toro 100-1971

SEAL-OIL
(Superseded to 120-7852)

$55.99

$

In Stock, only 1 left!

0

22

Toro 100-1892

CARTRIDGE-FILTER, OIL
(Superseded to 115-8189)

$18.99

$

In Stock, only 4 left!

0
