22303 (320-D) - Toro Dingo Compact Utility Loader (SN: 250000001 - 250999999) (2005) HYDRAULIC VALVE ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

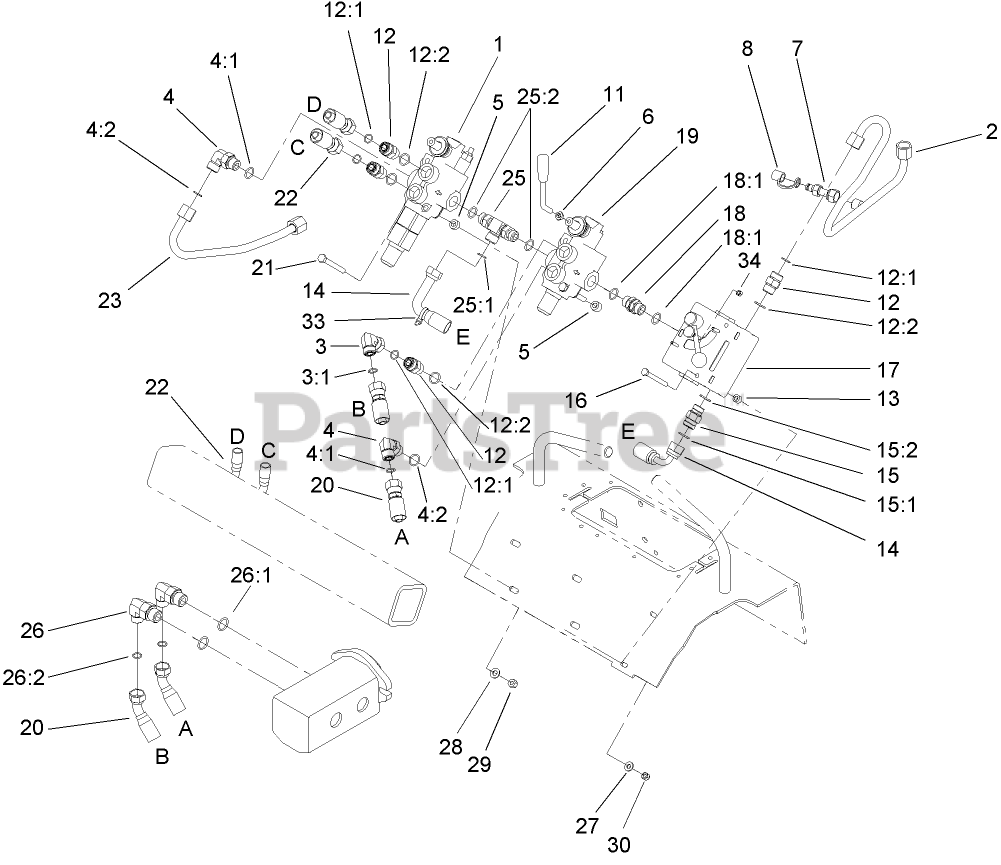

HYDRAULIC VALVE ASSEMBLY Parts Diagram

  • Title
1

Toro 99-3077

VALVE-HYD, AUXILIARY

$1895.99

$

Usually ships in 3-6 days

0

2

Toro 105-7878

TUBE-HYD

$216.99

$

Usually ships in 3-6 days

0

3

Toro 94-6031

FITTING-HYD

$81.99

$

Usually ships in 3-6 days

0

3:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

4

Toro 340-98

FITTING-ELBOW-90 DEG

$33.99

$

In Stock, only 2 left!

0

4:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

4:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

5

Toro 98-4695

SPACER

$7.99

$

Usually ships in 3-6 days

0

6

Toro 42-9580

NUT-HEX
(Superseded to 33014-00)

$0.99

$

In Stock, Qty 20+

0

7

Toro 86-5480

NIPPLE-TEST

$79.99

$

Usually ships in 3-6 days

0

8

Toro 354-79

CAP-DUST

$9.99

$

Usually ships in 3-6 days

0

11

Toro 98-4729

LEVER-VALVE

$82.99

$

In Stock, only 1 left!

0

12

Toro 340-4

FITTING-STRAIGHT

$12.99

$

In Stock, only 3 left!

0

12:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

12:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

13

Toro 98-4799

SPACER

$7.99

$

In Stock, only 2 left!

0

14

Toro 100-2245

HOSE-HYD

$240.99

$

Usually ships in 3-6 days

0

15

Toro 98-4735

VALVE-CHECK, HYD

$296.99

$

Usually ships in 3-6 days

0

15:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

15:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

16

Toro 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

0

17

Toro 104-4221

HYD VALVE KIT

$941.99

$

Usually ships in 3-6 days

0

18

Toro 95-3209

FITTING-THREAD, STRAIGHT

$27.99

$

Usually ships in 3-6 days

0

18:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

19

Toro 99-3072

VALVE-SELECTOR, HYD

$1026.99

$

Usually ships in 3-6 days

0

20

Toro 100-1730

HOSE-PUMP, HYD

$292.99

$

Usually ships in 3-6 days

0

21

Toro 322-13

SCREW-HH

$3.49

$

In Stock, only 2 left!

0

22

Toro 100-8817

HOSE-HYD

$403.99

$

Usually ships in 3-6 days

0

23

Toro 105-7879

TUBE-HYD

$104.99

$

Usually ships in 3-6 days

0

25

Toro 98-9079

ADAPTER-TEE, ADJUSTABLE

$250.99

$

Usually ships in 3-6 days

0

25:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

25:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

26

Toro 340-105

FITTING-ELBOW 90

$42.99

$

In Stock, only 1 left!

0

26:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

26:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

27

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

29

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

30

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 10

0

33

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

34

Toro 3296-27

NUT-LOCK, NI

$1.49

$

In Stock, Qty 10

0
