22303 (320-D) - Toro Dingo Compact Utility Loader (SN: 250000001 - 250999999) (2005) FUEL CAMSHAFT ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

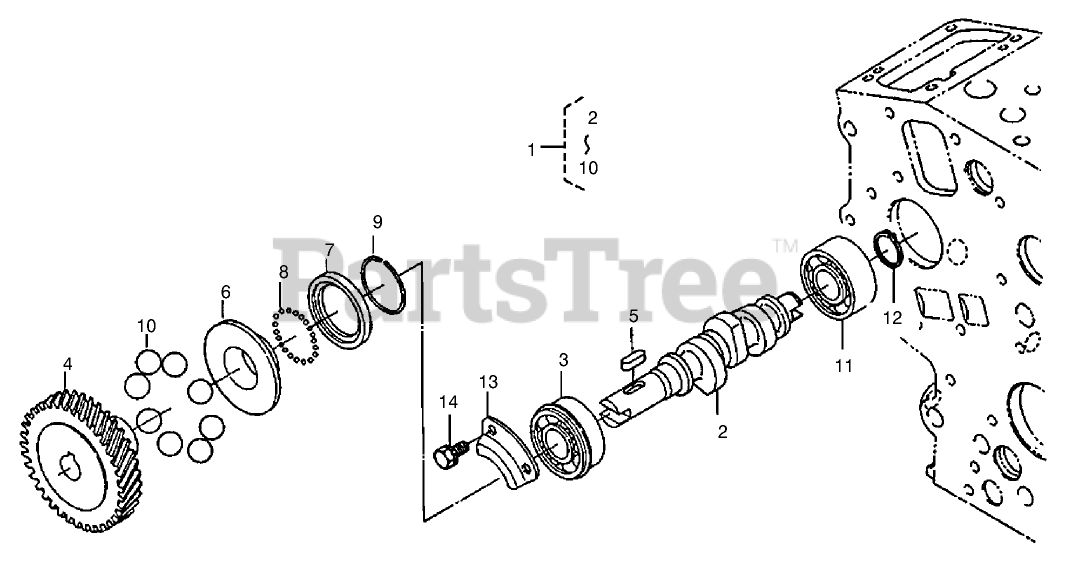

FUEL CAMSHAFT ASSEMBLY Parts Diagram

  • Title
1

Toro 100-2031

FUEL CAMSHAFT ASM

$

$

Not available

2

Toro 100-1965

CAMSHAFT

$

$

Not available

3

Toro 100-1795

BEARING-BALL

$9.49

$

Usually ships in 3-6 days

0

4

Toro 100-2006

GEAR-PUMP, INJECTION

$81.99

$

Usually ships in 3-6 days

0

5

Toro 100-1752

KEY-FEATHER

$4.49

$

Usually ships in 3-6 days

0

6

Toro 100-1903

SLEEVE-GOVERNOR

$11.99

$

Usually ships in 3-6 days

0

7

Toro 100-1904

CASE-BALL, GOVERNOR

$33.99

$

Usually ships in 3-6 days

0

8

$2.49

$

Usually ships in 3-6 days

0

9

Toro 100-1843

CIRC-CLIP

$2.49

$

Usually ships in 3-6 days

0

10

$2.49

$

Usually ships in 3-6 days

0

11

Toro 100-1794

BEARING-BALL

$

$

Not available

12

Toro 100-1784

CIRC-CLIP, EXTERNAL

$2.49

$

Usually ships in 3-6 days

0

13

Toro 100-1888

STOPPER-FUEL, CAMSHAFT

$3.99

$

Usually ships in 3-6 days

0

14

$1.49

$

Usually ships in 3-6 days

0
