22303 (320-D) - Toro Dingo Compact Utility Loader (SN: 230000001 - 230999999) (2003) GASKET KIT Parts Diagram

Dingo Compact Utility Loader

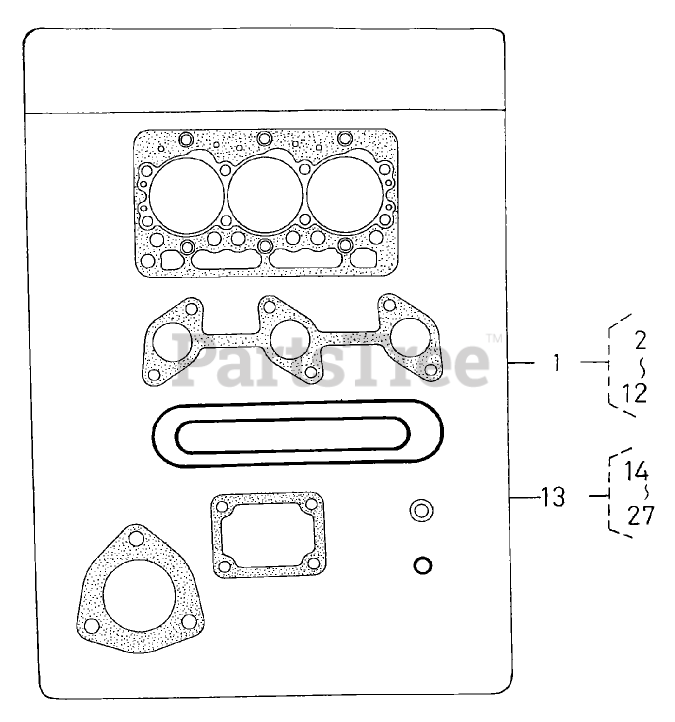

GASKET KIT Parts Diagram

  • Title
1

Toro 100-2176

UPPER GASKET KIT

$425.99

$

Usually ships in 3-6 days

0

2

Toro 98-7509

O-RING

$5.49

$

Usually ships in 3-6 days

0

10

Toro 100-1919

GASKET-FLANGE, WATER
(Superseded to 110-3820)

$3.49

$

Usually ships in 3-6 days

0

11

Toro 100-2157

GASKET-THERMOSTAT

$13.99

$

In Stock, only 2 left!

0

3

Toro 100-2043

GASKET-HEAD, CYLINDER

$

$

Not available

4

Toro 100-1937

GASKET-MANIFOLD, INTAKE

$12.99

$

Usually ships in 3-6 days

0

5

Toro 100-1957

GASKET

$13.99

$

Usually ships in 3-6 days

0

6

Toro 100-1797

SEAL-STEM, VALVE

$9.49

$

Usually ships in 3-6 days

0

7

Toro 100-2030

GASKET-COVER, HEAD

$17.99

$

Usually ships in 3-6 days

0

8

Toro 98-7654

GASKET

$12.99

$

Usually ships in 3-6 days

0

9

Toro 99-3446

O-RING

$9.49

$

Usually ships in 3-6 days

0

12

Toro 100-2238

GASKET-MUFFLER

$18.99

$

Usually ships in 3-6 days

0

13

Toro 100-2174

LOWER GASKET KIT

$61.99

$

Usually ships in 3-6 days

0

14

Toro 100-1976

GASKET-PUMP, WATER
(Superseded to 117-8846)

$15.99

$

In Stock, only 1 left!

0

15

Toro 100-1954

GASKET-CASE, GEAR
(Superseded to 112-2805)

$40.99

$

Usually ships in 3-6 days

0

16

Toro 100-2206

O-RING

$7.99

$

Usually ships in 3-6 days

0

17

Toro 100-1929

GASKET-CASE, BEARING
(Superseded to 100-1873)

$10.99

$

Usually ships in 3-6 days

0

18

Toro 100-1876

GASKET-COVER, CASE

$17.99

$

Usually ships in 3-6 days

0

19

Toro 100-2209

O-RING

$11.99

$

Usually ships in 3-6 days

0

20

Toro 100-2205

O-RING
(Superseded to 105-3776)

$8.49

$

Usually ships in 3-6 days

0

21

Toro 100-2003

GASKET-PUMP, OIL

$7.49

$

Usually ships in 3-6 days

0

22

Toro 98-9636

GASKET-PUMP, FUEL

$3.99

$

Usually ships in 3-6 days

0

23

Toro 100-2061

GASKET-GEARCASE
(Superseded to 100-2062)

$2.49

$

Usually ships in 3-6 days

0

24

Toro 100-1914

GASKET
(Superseded to 100-1962)

$8.99

$

In Stock, only 1 left!

0

25

Toro 98-7428

GASKET

$1.49

$

Usually ships in 3-6 days

0

26

Toro 100-2208

O-RING

$3.99

$

Usually ships in 3-6 days

0

27

Toro 100-2207

O-RING

$3.99

$

Usually ships in 3-6 days

0
