22303 (320-D) - Toro Dingo Compact Utility Loader (SN: 220000001 - 220999999) (2002) ENGINE MOUNT ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

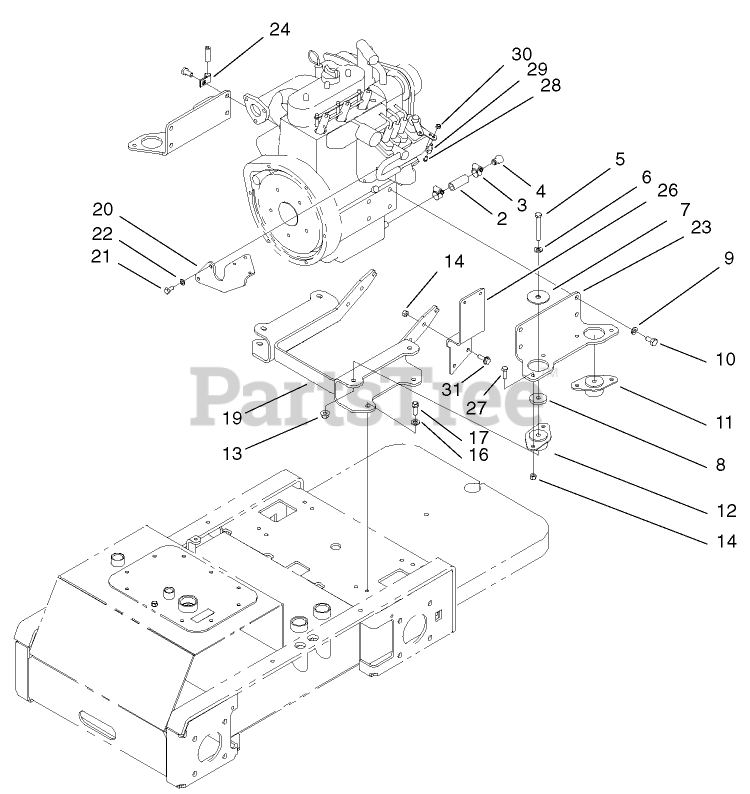

ENGINE MOUNT ASSEMBLY Parts Diagram

  • Title
2

Toro 56-2230

HOSE-FUEL

$4.99

$

Usually ships in 3-6 days

0

3

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

4

Toro 99-1445

PLUG-OIL

$56.99

$

Usually ships in 3-6 days

0

5

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 12

0

6

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 87-5100

WASHER-SNUBBING

$4.49

$

Usually ships in 3-6 days

0

8

Toro 98-4596

WASHER-MOUNT, ENGINE

$27.99

$

Usually ships in 3-6 days

0

9

Toro 42-9600

WASHER-LOCK, SPRING
(Superseded to 48-9590)

$0.99

$

Usually ships in 3-6 days

0

10

$8.99

$

Usually ships in 3-6 days

0

11

Toro 83-1030

MOUNT-ENGINE
(Superseded to 121-9076)

$45.99

$

In Stock, only 1 left!

0

12

Toro 93-5265

MOUNT-ENGINE

$143.99

$

Usually ships in 3-6 days

0

13

Toro 32128-29

NUT-LOCK, FLANGE

$2.49

$

Usually ships in 3-6 days

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 3256-80

WASHER-PLAIN

$0.99

$

In Stock, Qty 5

0

17

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

19

Toro 98-0066-01

MOUNT-ENGINE

$556.99

$

Usually ships in 3-6 days

0

20

Toro 105-4054-01

MOUNT-SOLENOID

$39.99

$

Usually ships in 3-6 days

0

21

Toro 99-5132

BOLT
(Superseded to 139-9940)

$2.49

$

Usually ships in 3-6 days

0

22

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

23

Toro 98-0055-01

PLATE-MOUNT, ENGINE

$272.99

$

Usually ships in 3-6 days

0

24

Toro 2412-138

R-CLAMP

$1.99

$

Usually ships in 3-6 days

0

26

Toro 98-0059-01

MOUNT-FILTER, FUEL

$103.99

$

Usually ships in 3-6 days

0

27

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

28

Toro 25-8640

SCREW-HH

$1.99

$

In Stock, only 1 left!

0

29

Toro 93-0021

SWIVEL-CABLE, THROTTLE

$46.99

$

Usually ships in 3-6 days

0

30

Toro 3296-13

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

31

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0
