22303 (320-D) - Toro Dingo Compact Utility Loader (SN: 210000001 - 210999999) (2001) HOOD AND SCREEN ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

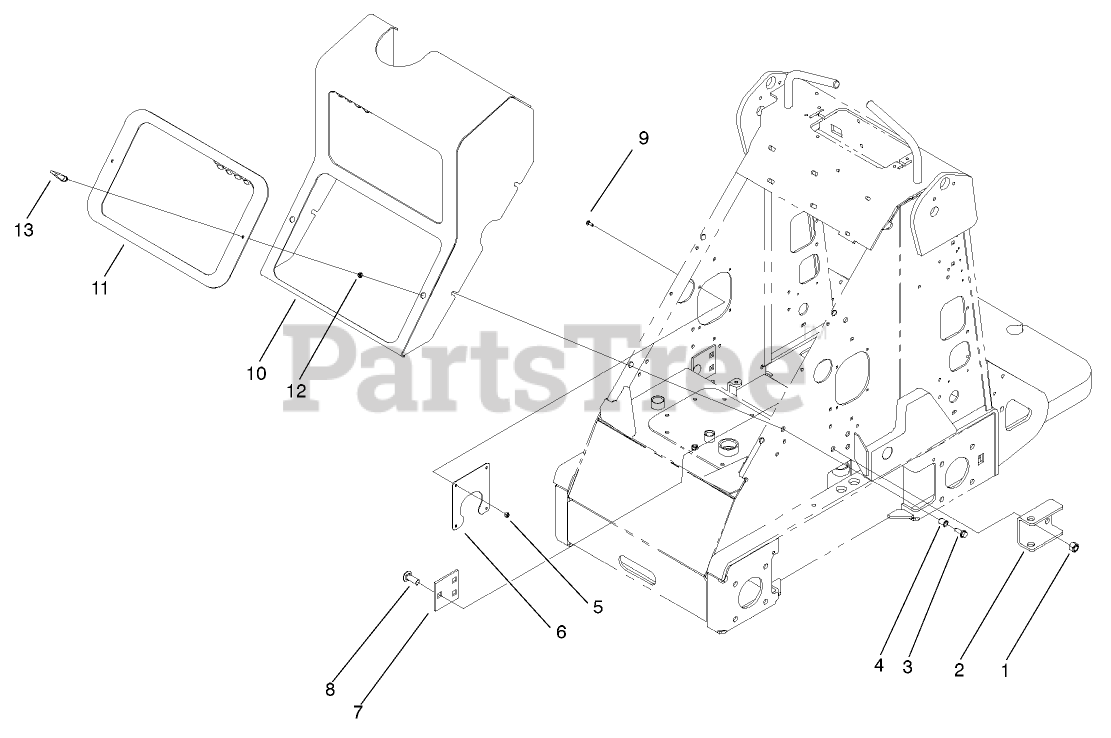

HOOD AND SCREEN ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

2

Toro 100-4122-01

BRACKET-ANCHOR

$223.99

$

Usually ships in 3-6 days

0

3

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

4

Toro 32148-8

INSERT-THREADED

$3.49

$

Usually ships in 3-6 days

0

5

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Toro 99-1427-03

GUARD-MUFFLER

$

$

Not available

7

Toro 100-4116-01

PLATE-ANCHOR

$148.99

$

Usually ships in 3-6 days

0

8

Toro 3233-26

SCREW-CARR, SHORT NECK

$2.99

$

Usually ships in 3-6 days

0

9

Toro 3229-34

SCREW-CARR

$2.49

$

Usually ships in 3-6 days

0

10

Toro 99-3120-03

HOOD

$1067.99

$

Usually ships in 3-6 days

0

11

Toro 99-3118-03

COVER

$279.99

$

Usually ships in 3-6 days

0

12

Toro 99-3058

WASHER

$3.49

$

In Stock, Qty 20+

0

13

Toro 74-5950

LATCH-SWELL

$22.99

$

In Stock, Qty 10

0
