22303 (320-D) - Toro Dingo Compact Utility Loader (SN: 210000001 - 210999999) (2001) HEAD COVER ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

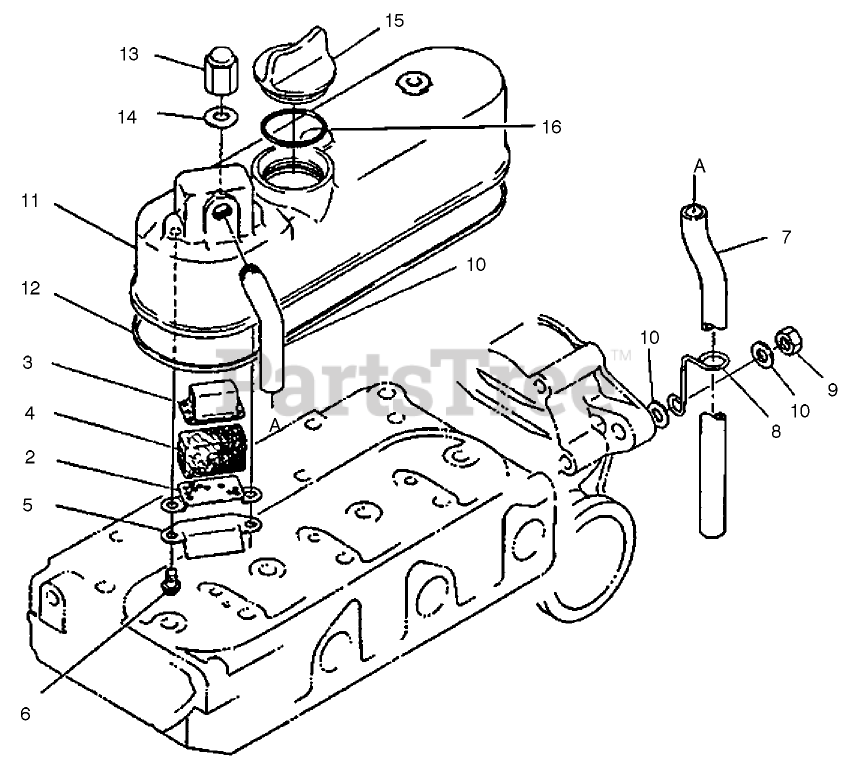

HEAD COVER ASSEMBLY Parts Diagram

  • Title

1

Toro 100-1972

JOINT-PIPE, BREATHER

$

$

Not available

2

Toro 100-1877

PLATE-ELEMENT

$

$

Not available

3

Toro 100-1878

PLATE-ELEMENT

$8.49

$

Usually ships in 3-6 days

0

4

Toro 100-1881

ELEMENT-BREATHER

$9.49

$

Usually ships in 3-6 days

0

5

Toro 100-1879

BREATHER-SHIELD, OIL

$

$

Not available

6

Toro 100-2040

SCREW

$8.49

$

Usually ships in 3-6 days

0

7

Toro 100-1880

PIPE-BREATHER

$13.99

$

Usually ships in 3-6 days

0

8

Toro 100-1973

CLAMP-PIPE

$

$

Not available

9

Toro 98-7739

NUT

$1.99

$

Usually ships in 3-6 days

0

10

Toro 98-7660

WASHER-PLAIN

$0.99

$

In Stock, only 4 left!

0

11

Toro 100-2029

COVER-HEAD, CYLINDER

$128.99

$

Usually ships in 3-6 days

0

12

Toro 100-2030

GASKET-COVER, HEAD

$18.99

$

Usually ships in 3-6 days

0

13

Toro 98-7655

NUT-CAP

$7.99

$

Usually ships in 3-6 days

0

14

Toro 98-7654

GASKET

$13.99

$

Usually ships in 3-6 days

0

15

Toro 98-9449

PLUG-FILLER, OIL
(Superseded to 107-9075)

$10.99

$

In Stock, only 2 left!

0

16

Toro 99-3446

O-RING

$9.99

$

Usually ships in 3-6 days

0
