22303 (320-D) - Toro Dingo Compact Utility Loader (SN: 200000501 - 200999999) (2000) GEAR CASE ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

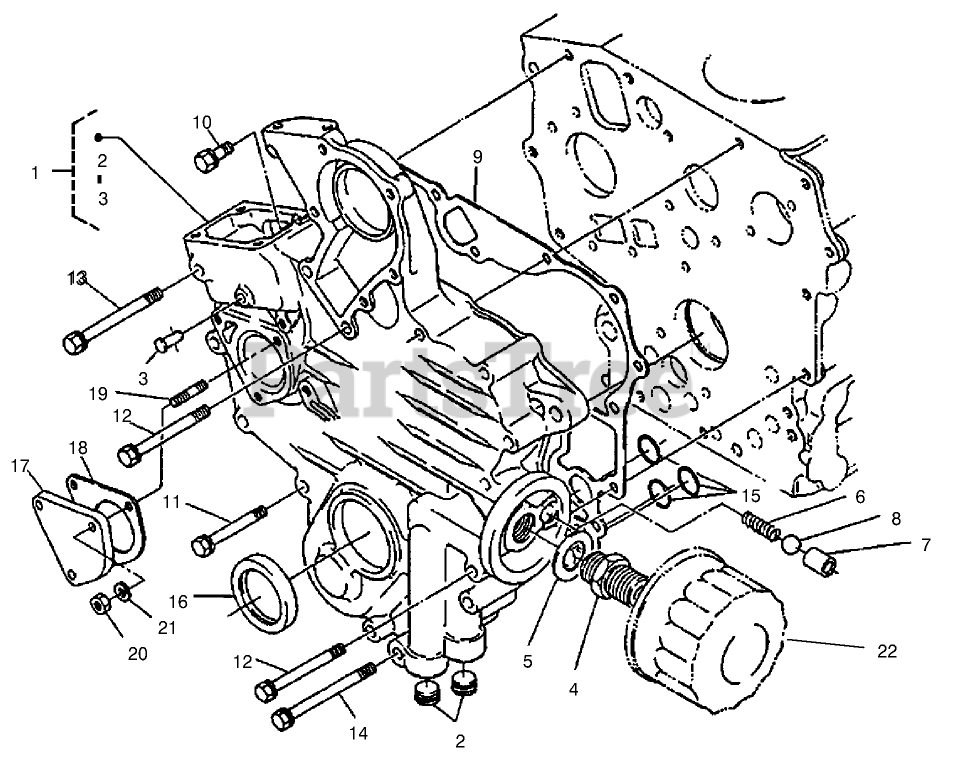

GEAR CASE ASSEMBLY Parts Diagram

  • Title

1

Toro 100-2048

CASE-GEAR, COMP.

$

$

Not available

2

Toro 98-7546

PLUG
(Superseded to 107-0108)

$

$

Not available

3

Toro 100-1910

PIN-SPRING, START

$6.99

$

Usually ships in 3-6 days

0

4

Toro 98-9388

JOINT-PIPE

$48.99

$

Usually ships in 3-6 days

0

5

Toro 100-1926

WASHER-PLAIN

$2.99

$

Usually ships in 3-6 days

0

6

Toro 100-2004

SPRING

$22.99

$

Usually ships in 3-6 days

0

7

Toro 100-1894

SEAT-VALVE

$16.99

$

Usually ships in 3-6 days

0

8

Toro 100-1792

BALL

$2.49

$

Usually ships in 3-6 days

0

9

Toro 100-1954

GASKET-CASE, GEAR
(Superseded to 112-2805)

$41.99

$

Usually ships in 3-6 days

0

10

Toro 98-7605

BOLT

$1.49

$

In Stock, Qty 7

0

11

Toro 100-2201

BOLT
(Superseded to 105-3797)

$2.49

$

Usually ships in 3-6 days

0

12

Toro 100-1922

BOLT

$3.99

$

Usually ships in 3-6 days

0

13

Toro 100-1766

BOLT

$4.99

$

Usually ships in 3-6 days

0

14

Toro 100-1767

BOLT

$4.99

$

Usually ships in 3-6 days

0

15

Toro 100-2206

O-RING

$8.49

$

Usually ships in 3-6 days

0

16

Toro 100-1971

SEAL-OIL
(Superseded to 120-7852)

$55.99

$

In Stock, only 1 left!

0

17

Toro 100-2060

Cover

$

$

Not available

18

Toro 100-2061

GASKET-GEARCASE
(Superseded to 100-2062)

$2.99

$

Usually ships in 3-6 days

0

19

Toro 98-7571

STUD

$3.49

$

Usually ships in 3-6 days

0

20

Toro 98-7572

NUT

$0.99

$

Usually ships in 3-6 days

0

21

Toro 98-9367

WASHER-SPRING
(Superseded to 98-7699)

$0.99

$

Usually ships in 3-6 days

0

22

Toro 100-1892

CARTRIDGE-FILTER, OIL
(Superseded to 115-8189)

$18.99

$

In Stock, only 4 left!

0
