22303 (320-D) - Toro Dingo Compact Utility Loader (SN: 200000501 - 200999999) (2000) DYNAMO AND PULLEY ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

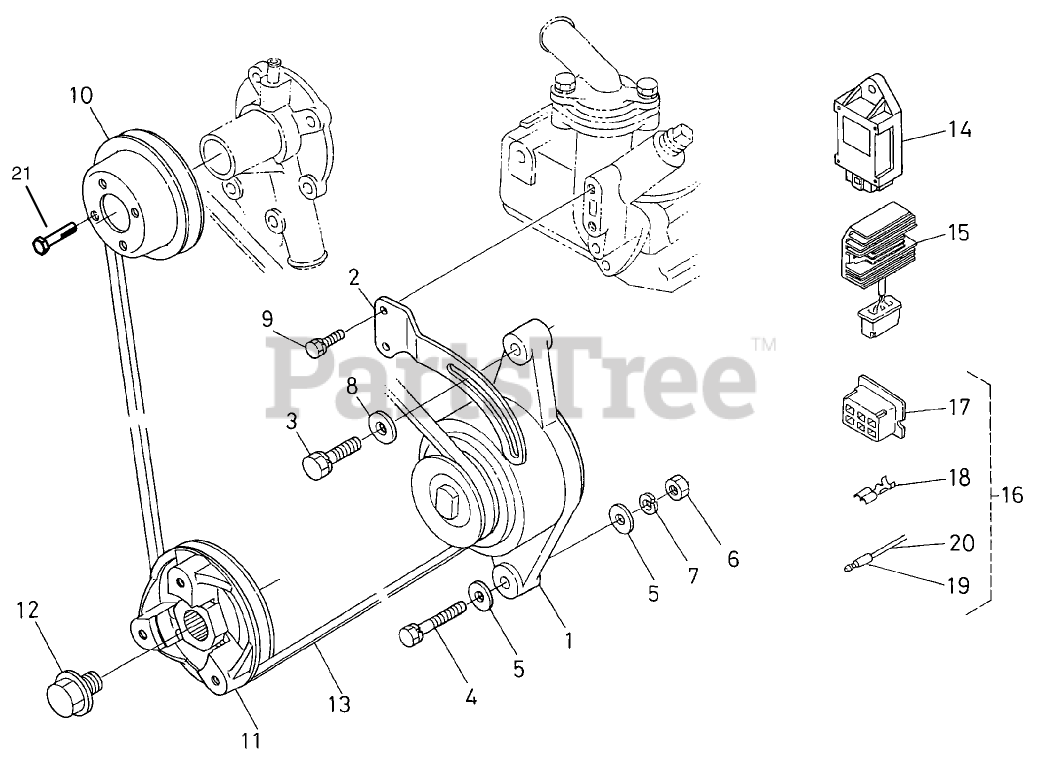

DYNAMO AND PULLEY ASSEMBLY Parts Diagram

  • Title

1

Toro 100-2168

DYNAMO ASM

$707.99

$

Usually ships in 3-6 days

0

2

Toro 100-2214

STAY-DYNAMO

$18.99

$

Usually ships in 3-6 days

0

3

Toro 98-7697

BOLT

$1.99

$

Usually ships in 3-6 days

0

4

Toro 100-1771

BOLT

$3.49

$

Usually ships in 3-6 days

0

5

Toro 98-7660

WASHER-PLAIN

$0.99

$

In Stock, only 4 left!

0

6

Toro 98-7739

NUT

$1.99

$

Usually ships in 3-6 days

0

7

Toro 98-7535

WASHER-SPRING

$0.99

$

Usually ships in 3-6 days

0

8

Toro 100-1782

WASHER-PLAIN
(Superseded to 100-9233)

$0.99

$

Usually ships in 3-6 days

0

9

Toro 98-7692

BOLT

$1.49

$

Usually ships in 3-6 days

0

10

Toro 100-1921

PULLEY-FAN

$108.99

$

Usually ships in 3-6 days

0

11

Toro 100-2039

PULLEY-DRIVE, FAN

$367.99

$

Usually ships in 3-6 days

0

12

Toro 100-1978

BOLT

$23.99

$

In Stock, only 2 left!

0

13

Toro 100-1979

V-BELT

$37.99

$

Usually ships in 3-6 days

0

14

Toro 98-7611

CONTROLLER-GLOW

$463.99

$

Usually ships in 3-6 days

0

15

Toro 100-2057

REGULATOR ASM

$341.99

$

Usually ships in 3-6 days

0

16

Toro 100-2058

COUPLER ASM

$7.99

$

Usually ships in 3-6 days

0

17

Toro 100-2056

CONNECTOR

$5.49

$

Usually ships in 3-6 days

0

18

Toro 98-9699

TERMINAL

$1.49

$

Usually ships in 3-6 days

0

19

Toro 98-9701

TERMINAL

$0.99

$

Usually ships in 3-6 days

0

20

Toro 98-9702

SLEEVE

$0.99

$

Usually ships in 3-6 days

0

21

Toro 100-1773

BOLT-FLANGE
(Superseded to 99-8363)

$2.49

$

In Stock, only 2 left!

0
