22303 (320-D) - Toro Dingo Compact Utility Loader (SN: 200000001 - 200000500) (2000) HYDRAULIC TANK ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

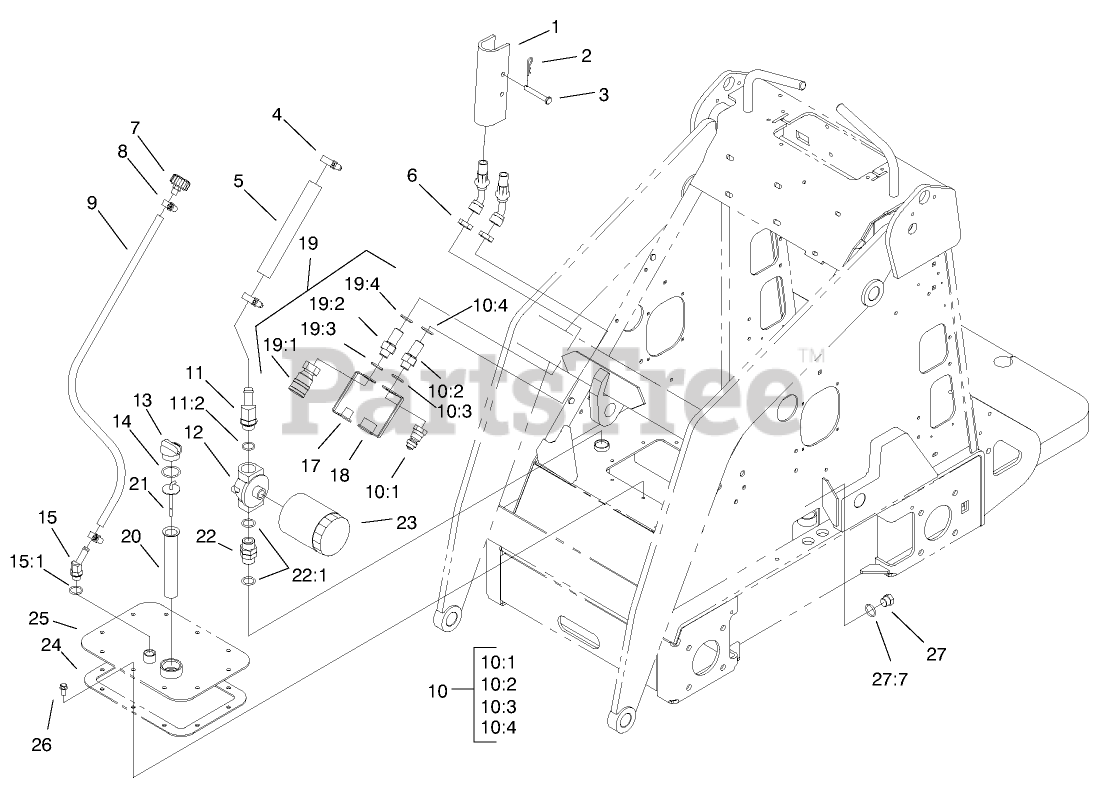

HYDRAULIC TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 98-4675-01

LOCK-CYLINDER

$34.99

$

Usually ships in 3-6 days

0

2

Toro 3290-467

PIN-HAIR

$0.99

$

In Stock, Qty 5

0

3

Toro 283-52

PIN-CLEVIS

$12.99

$

Usually ships in 3-6 days

0

4

Toro 2412-129

CLAMP-HOSE

$5.49

$

In Stock, Qty 7

0

5

Toro 98-2713

HOSE-SUCTION, HYD

$31.99

$

In Stock, only 2 left!

0

6

Toro 340-74

NUT-LOCK, BULKHEAD

$5.99

$

Usually ships in 3-6 days

0

7

Toro 68-6150

BREATHER

$28.99

$

In Stock, only 1 left!

0

8

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

9

Toro 100-1748

HOSE-VENT

$81.99

$

Usually ships in 3-6 days

0

10

Toro 100-4748

BULKHEAD NIPPLE ASM
(Superseded to 105-8395)

$248.99

$

Usually ships in 3-6 days

0

10:1

Toro 100-4235

NIPPLE-FACE, FLUSH
(Superseded to 106-7692)

$240.99

$

Usually ships in 3-6 days

0

10:2

Toro 100-4236

FITTING-ADAPTER, BULKHEAD

$

$

Not available

10:3

Toro 237-65

O-RING

$2.99

$

In Stock, only 4 left!

0

10:4

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

11

Toro 99-3016

FITTING-45 DEG

$

$

Not available

11:2

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

12

Toro 92-5821

HEAD-FILTER

$199.99

$

Usually ships in 3-6 days

0

13

Toro 93-7498

PLUG-PLASTIC

$27.99

$

In Stock, only 4 left!

0

14

Toro 237-123

O-RING
(Superseded to 237-101)

$3.49

$

In Stock, only 1 left!

0

15

Toro 354-126

FITTING-HYD, 45 DEG

$58.99

$

Usually ships in 3-6 days

0

15:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

17

Toro 100-8815

CAP-DUST, NIPPLE

$15.99

$

Usually ships in 3-6 days

0

18

Toro 100-8816

CAP-DUST, COUPLER

$15.99

$

Usually ships in 3-6 days

0

19

Toro 100-4747

BULKHEAD COUPLER ASM
(Superseded to 105-8394)

$301.99

$

Usually ships in 3-6 days

0

19:1

Toro 100-4234

COUPLER-FACE, FLUSH
(Superseded to 104-6134)

$267.99

$

Usually ships in 3-6 days

0

19:2

Toro 100-4236

FITTING-ADAPTER, BULKHEAD

$

$

Not available

19:3

Toro 237-65

O-RING

$2.99

$

In Stock, only 4 left!

0

19:4

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

20

Toro 61-2790

FILTER-SCREEN

$

$

Not available

21

Toro 100-2097

DIPSTICK-OIL

$63.99

$

Usually ships in 3-6 days

0

22

Toro 98-9906

FITTING-THREAD, STRAIGHT

$74.99

$

Usually ships in 3-6 days

0

22:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

23

Toro 54-0110

FILTER-OIL, TRANSMISSION

$15.99

$

In Stock, Qty 14

0

24

Toro 98-9927

GASKET-COVER

$70.99

$

Usually ships in 3-6 days

0

25

Toro 100-1713-01

COVER

$213.99

$

Usually ships in 3-6 days

0

26

Toro 98-9940

SCREW

$2.49

$

In Stock, only 3 left!

0

27

Toro 353-988

PLUG-HEX

$14.99

$

Usually ships in 3-6 days

0

27:7

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0
