22303 (320-D) - Toro Dingo Compact Utility Loader (SN: 099000001 - 099999999) (1999) WATER FLANGE AND THERMOSTAT ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

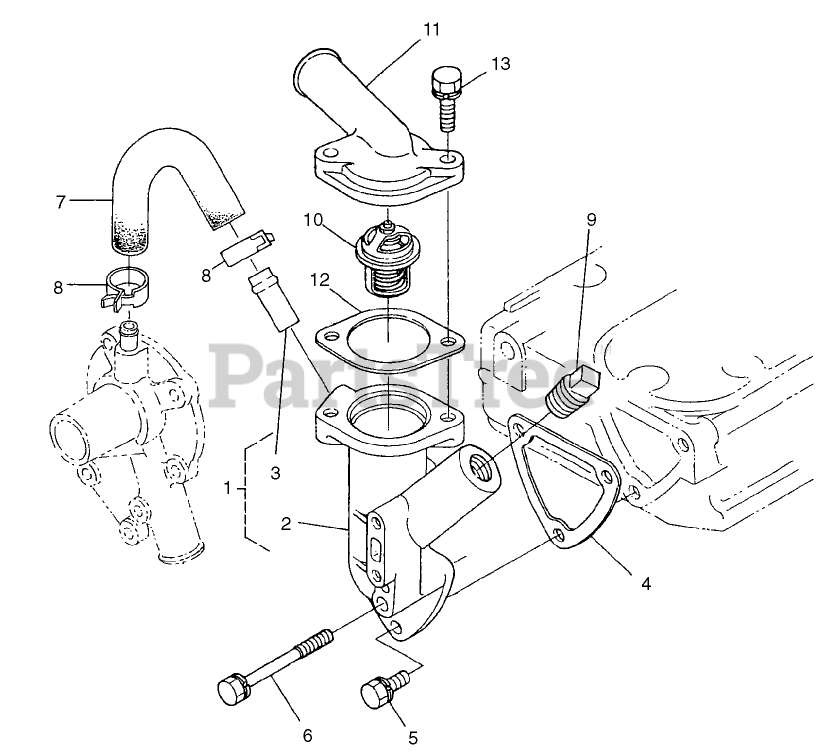

WATER FLANGE AND THERMOSTAT ASSEMBLY Parts Diagram

  • Title

1

Toro 100-2165

WATER FLANGE ASM

$135.99

$

Usually ships in 3-6 days

0

2

Toro 100-2166

FLANG-WATER
(Superseded to 100-2165)

$135.99

$

Usually ships in 3-6 days

0

3

Toro 98-9580

PIPE-RETURN, WATER

$6.49

$

Usually ships in 3-6 days

0

4

Toro 100-1919

GASKET-FLANGE, WATER
(Superseded to 110-3820)

$3.99

$

Usually ships in 3-6 days

0

5

Toro 98-7692

BOLT

$1.49

$

Usually ships in 3-6 days

0

6

Toro 100-1977

BOLT

$

$

Not available

7

Toro 100-2017

PIPE-RETURN, WATER

$14.99

$

Usually ships in 3-6 days

0

8

Toro 98-9579

BAND-PIPE

$6.99

$

Usually ships in 3-6 days

0

9

Toro 100-1789

PLUG
(Superseded to 105-3747)

$5.99

$

Usually ships in 3-6 days

0

10

Toro 100-2053

THERMOSTAT ASM

$85.99

$

Usually ships in 3-6 days

0

11

Toro 100-1920

COVER, THERMOSTAT

$15.99

$

Usually ships in 3-6 days

0

12

Toro 100-1869

GASKET, THERMOSTAT (THRU AUG. 1994)
(Superseded to 100-2157)

$14.99

$

In Stock, only 2 left!

0

13

Toro 98-9353

BOLT

$1.49

$

Usually ships in 3-6 days

0
