22303 (320-D) - Toro Dingo Compact Utility Loader (SN: 099000001 - 099999999) (1999) REAR COVER ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

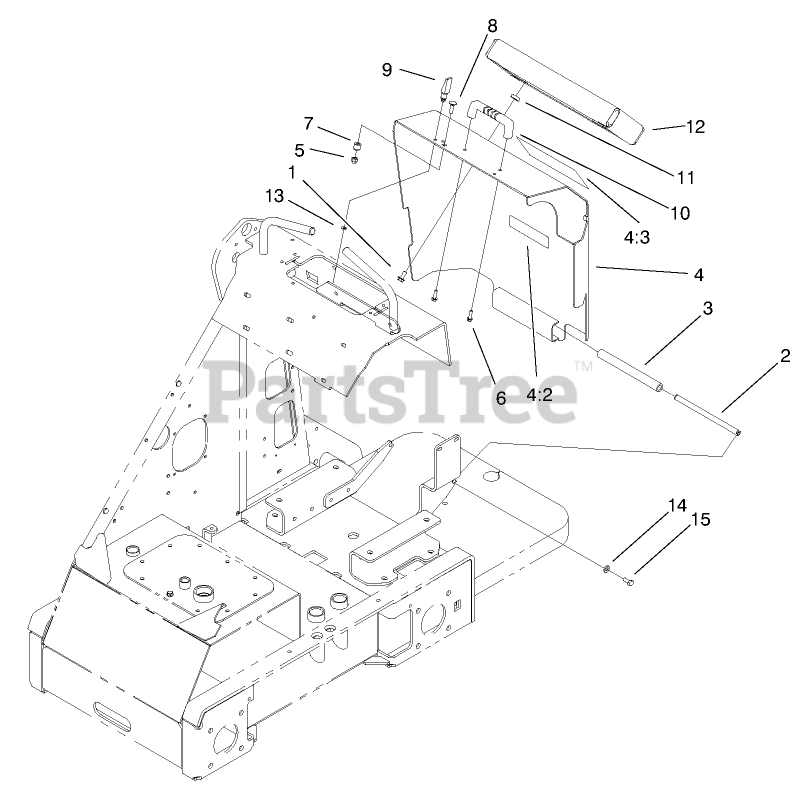

REAR COVER ASSEMBLY Parts Diagram

  • Title

1

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

2

Toro 99-3083

BAR-HINGE

$106.99

$

Usually ships in 3-6 days

0

3

Toro 99-3085

HOSE-HINGE

$20.99

$

Usually ships in 3-6 days

0

4

Toro 100-2191

Cover ASM
(Superseded to 104-9450)

$739.99

$

Usually ships in 3-6 days

0

4:2

Toro 93-7814

DECAL-DANGER

$12.99

$

Usually ships in 3-6 days

0

4:3

Toro 100-1701

DECAL-DANGER

$39.99

$

Usually ships in 3-6 days

0

5

Toro 32111-8

NUT-LOCK, CAP

$3.99

$

Usually ships in 3-6 days

0

6

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

7

Toro 99-3035

SPACER-GUIDE

$70.99

$

Usually ships in 3-6 days

0

8

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 14

0

9

Toro 74-5950

LATCH-SWELL

$23.99

$

In Stock, Qty 10

0

10

Toro 65-5100

HANDLE-DOOR

$9.99

$

In Stock, only 2 left!

0

11

Toro 26-4840

SPACER-PIN, MOUNTING

$6.99

$

Usually ships in 3-6 days

0

12

Toro 99-3101

COVER-PAD

$213.99

$

Usually ships in 3-6 days

0

13

Toro 99-3058

WASHER

$3.49

$

In Stock, Qty 20+

0

14

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

15

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
