22303 (320-D) - Toro Dingo Compact Utility Loader (SN: 099000001 - 099999999) (1999) PUMP AND FAN MOUNT ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

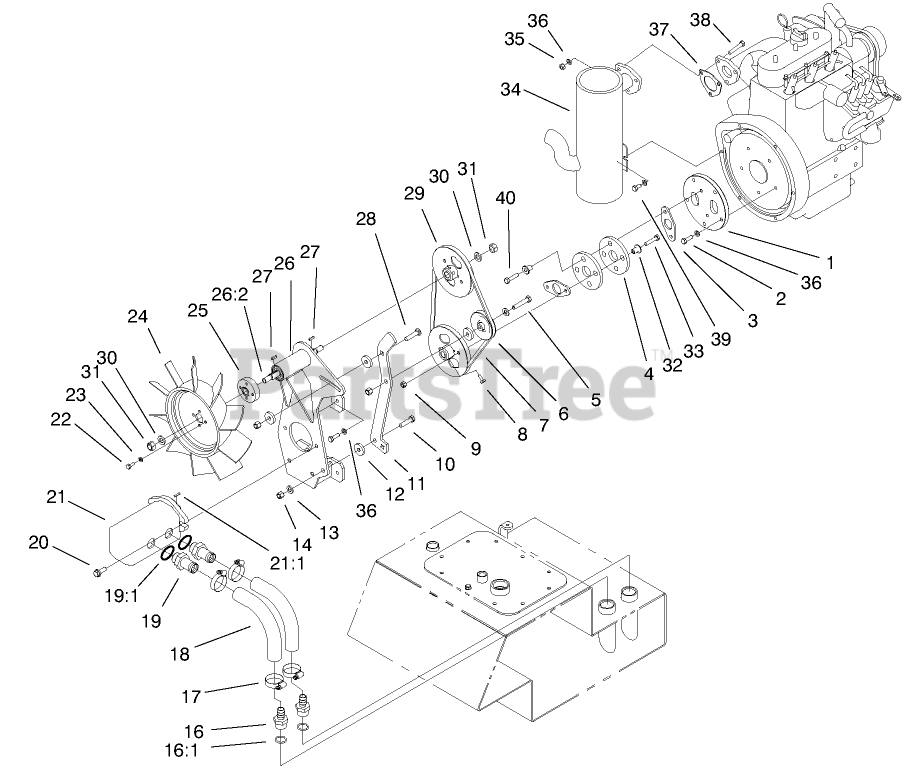

PUMP AND FAN MOUNT ASSEMBLY Parts Diagram

  • Title

1

Toro 99-1431

ADAPTER-FLYWHEEL

$718.99

$

Usually ships in 3-6 days

0

2

Toro 99-5131

BOLT

$6.99

$

Usually ships in 3-6 days

0

3

Toro 99-1430

SPACER-COUPLER

$32.99

$

Usually ships in 3-6 days

0

4

Toro 44-2230

COUPLING-RUBBER
(Superseded to 115-4523)

$56.99

$

In Stock, Qty 20+

0

5

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Toro 63-8140

PULLEY-IDLER

$51.99

$

In Stock, only 4 left!

0

7

Toro 92-8876

V-BELT

$35.99

$

In Stock, only 2 left!

0

8

Toro 3241-5

SCREW-SET

$2.49

$

In Stock, only 2 left!

0

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 100-1727-01

MOUNT-TENSIONER

$

$

Not available

12

Toro 99-5121

SPACER

$20.99

$

Usually ships in 3-6 days

0

13

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

16

Toro 354-78

FITTING-STR

$59.99

$

Usually ships in 3-6 days

0

16:1

Toro 237-146

O-RING

$4.99

$

In Stock, Qty 8

0

17

Toro 2412-111

CLAMP

$4.99

$

Usually ships in 3-6 days

0

18

Toro 99-3046

HOSE-SUCTION, FORMED

$231.99

$

Usually ships in 3-6 days

0

19

Toro 99-3017

FITTING

$91.99

$

In Stock, only 1 left!

0

19:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

20

Toro 66-9300

SCREW-HHF

$5.49

$

Usually ships in 3-6 days

0

21

Toro 98-4702

PUMP-GEAR, TANDEM

$2211.99

$

Usually ships in 3-6 days

0

21:1

Toro 98-4700

KEY-SQUARE

$15.99

$

Usually ships in 3-6 days

0

21:2

Toro 99-1353

SEAL KIT

Note: Not illustrated

$123.99

$

Usually ships in 3-6 days

0

22

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

24

Toro 99-5119

FAN

$

$

Not available

25

Toro 99-1439

ADAPTER-FAN

$

$

Not available

26

Toro 99-1449

PUMP MOUNT ASM

$

$

Not available

26:2

Toro 99-5118

Shaft-Fan
(Superseded to 98-0068)

$177.99

$

Usually ships in 3-6 days

0

26:3

Toro 38-7820

BEARING-BALL

Note: Not illustrated

$13.99

$

In Stock, Qty 20+

0

27

Toro 100-1715

KEY-SQUARE

$13.99

$

Usually ships in 3-6 days

0

28

Toro 3231-5

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

29

Toro 99-5111

PULLEY-KEYED

$241.99

$

In Stock, only 3 left!

0

30

Toro 33096-00

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

31

Toro 3296-19

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

32

Toro 71-4411

SPACER

$2.99

$

In Stock, only 3 left!

0

33

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

34

Toro 99-1442

Muffler-Kubota
(Superseded to 117-1828)

$593.99

$

Usually ships in 3-6 days

0

35

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

36

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

37

Toro 100-2238

GASKET-MUFFLER

$19.99

$

Usually ships in 3-6 days

0

38

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

39

Toro 99-5132

BOLT
(Superseded to 139-9940)

$2.49

$

Usually ships in 3-6 days

0

40

Toro 99-5133

BOLT

$11.99

$

Usually ships in 3-6 days

0
