22303 (320-D) - Toro Dingo Compact Utility Loader (SN: 099000001 - 099999999) (1999) FRAME AND LOADER ARM ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

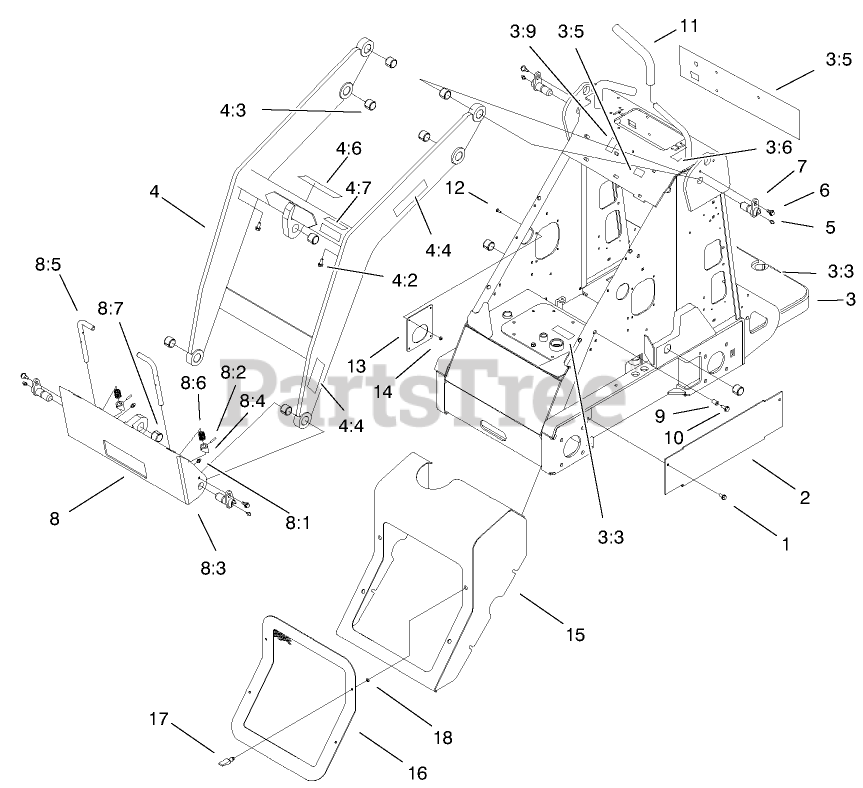

FRAME AND LOADER ARM ASSEMBLY Parts Diagram

  • Title

1

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

2

Toro 99-3020-01

COVER-HOSE

$

$

Not available

3

Toro 99-3154

Frame & Decal ASM
(Superseded to 105-8375)

$

$

Not available

3:3

Toro 98-9947

TREAD-FOOT

$35.99

$

Usually ships in 3-6 days

0

3:5

Toro 100-1706

DECAL-PANEL, CONTROL

$

$

Not available

3:6

Toro 98-8219

DECAL-THROTTLE

$18.99

$

In Stock, only 1 left!

0

3:9

Toro 98-8235

DECAL-SELECTOR

$18.99

$

Usually ships in 3-6 days

0

3:10

Toro 100-1704

DECAL-POWER, AUXILIARY

Note: Not illustrated

$33.99

$

Usually ships in 3-6 days

0

3:2

Toro 98-4871

BUSHING-TENSION

$23.99

$

In Stock, only 1 left!

0

3:7

Toro 100-1703

DECAL-LIMITER, SPEED

$31.99

$

Usually ships in 3-6 days

0

3:8

Toro 93-6686

DECAL-OIL, HYD

$9.49

$

Usually ships in 3-6 days

0

4

Toro 99-3156

LOADER ASM
(Superseded to 106-8155)

$2349.99

$

Usually ships in 3-6 days

0

4:2

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4:3

Toro 98-4871

BUSHING-TENSION

$23.99

$

In Stock, only 1 left!

0

4:4

Toro 93-9367

DECAL-WARNING

$9.99

$

In Stock, only 1 left!

0

4:6

Toro 100-1702

DECAL-CAUTION

$26.99

$

Usually ships in 3-6 days

0

4:7

Toro 99-3088

DECAL-NO RIDERS

$72.99

$

Usually ships in 3-6 days

0

4:5

Toro 100-1701

DECAL-DANGER

Note: Not illustrated

$39.99

$

Usually ships in 3-6 days

0

5

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

6

Toro 99-5105

BOLT-SHOULDER

$6.49

$

In Stock, Qty 20+

0

7

Toro 99-1414

PIN-PIVOT
(Superseded to 112-2609)

$108.99

$

In Stock, only 2 left!

0

8

Toro 98-4690

QUICK ATTACH ASM
(Superseded to 132-8418)

$1443.99

$

Usually ships in 3-6 days

0

8:1

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

8:2

Toro 32121-94

PIN-SPECIAL

$

$

Not available

8:3

Toro 98-4691-03

MOUNT-ATTACH, QUICK
(Superseded to 130-7708-03)

$1267.99

$

Usually ships in 3-6 days

0

8:4

Toro 98-4692

CAM-ATTACH, QUICK

$

$

Not available

8:5

Toro 100-3373

PIN

$52.99

$

Usually ships in 3-6 days

0

8:6

Toro 98-4694

SPRING-COMPRESSION

$11.99

$

In Stock, only 2 left!

0

8:7

Toro 98-4871

BUSHING-TENSION

$23.99

$

In Stock, only 1 left!

0

9

Toro 32148-7

NUT-INSERT

$3.99

$

Usually ships in 3-6 days

0

10

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

11

Toro 98-4845

GRIP-CUSHION

$16.99

$

Usually ships in 3-6 days

0

12

Toro 3229-34

SCREW-CARR

$2.49

$

Usually ships in 3-6 days

0

13

Toro 99-1427-03

GUARD-MUFFLER

$

$

Not available

14

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 99-5126-03

HOOD ASM

$

$

Not available

16

Toro 99-3034-03

COVER ASM

$

$

Not available

17

Toro 74-5950

LATCH-SWELL

$23.99

$

In Stock, Qty 10

0

18

Toro 99-3058

WASHER

$3.49

$

In Stock, Qty 20+

0
