22302 TE (220-D) - Toro Dingo Compact Utility Loader (SN: 099000001 - 099999999) (1999) VALVE AND ROCKER ARM ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

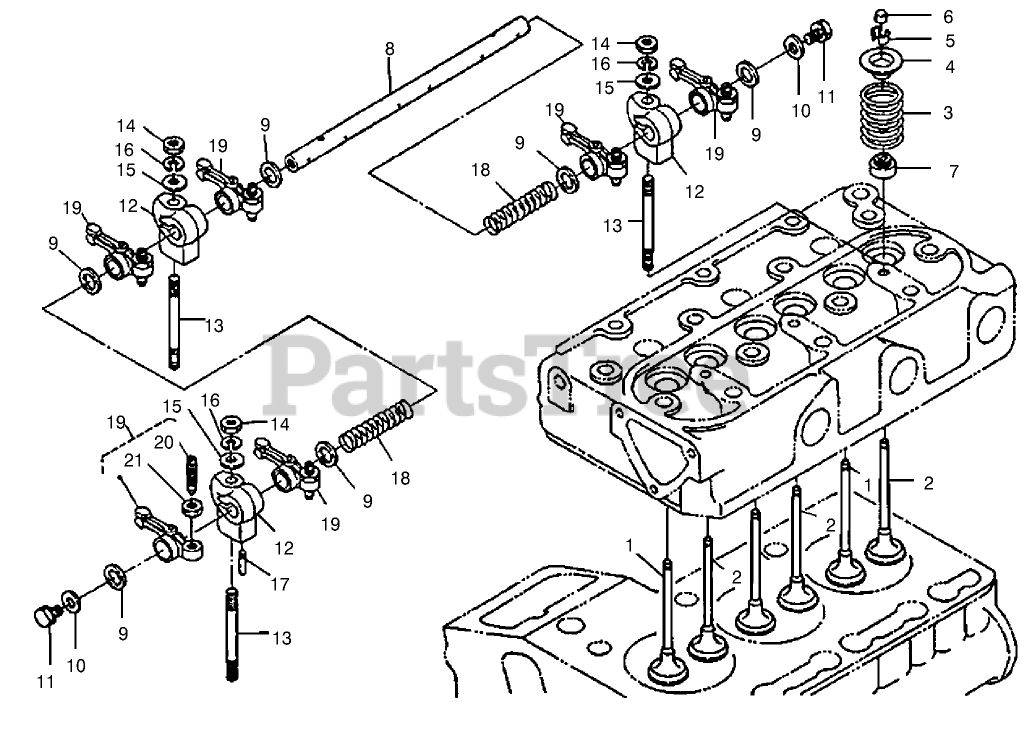

VALVE AND ROCKER ARM ASSEMBLY Parts Diagram

  • Title

1

Toro 100-1821

VALVE-INLET

$19.99

$

Usually ships in 3-6 days

0

2

Toro 100-1822

VALVE-EXHAUST

$20.99

$

Usually ships in 3-6 days

0

3

Toro 100-1823

SPRING-VALVE

$9.49

$

Usually ships in 3-6 days

0

4

Toro 100-1825

RETAINER-SPRING, VALVE

$12.99

$

Usually ships in 3-6 days

0

5

Toro 100-1826

COLLET-SPRING, VALVE
(Superseded to 120-3136)

$17.99

$

Usually ships in 3-6 days

0

6

Toro 100-1824

CAP-VALVE
(Superseded to 100-2155)

$13.99

$

Usually ships in 3-6 days

0

7

Toro 100-1797

SEAL-STEM, VALVE

$9.99

$

Usually ships in 3-6 days

0

8

Toro 100-1940

SHAFT, ROCKER ARM

$

$

Not available

9

Toro 100-2044

WASHER

$8.99

$

Usually ships in 3-6 days

0

10

Toro 100-1927

WASHER-PLAIN

$2.49

$

Usually ships in 3-6 days

0

11

Toro 100-1762

BOLT

$2.99

$

Usually ships in 3-6 days

0

12

Toro 100-1886

BRACKET-ARM, ROCKER

$

$

Not available

13

Toro 100-1829

STUD

$13.99

$

Usually ships in 3-6 days

0

14

Toro 98-7572

NUT

$0.99

$

Usually ships in 3-6 days

0

15

Toro 98-7648

WASHER-PLAIN

$0.99

$

Usually ships in 3-6 days

0

16

Toro 98-9367

WASHER-SPRING
(Superseded to 98-7699)

$0.99

$

Usually ships in 3-6 days

0

17

Toro 100-1830

SCREW, SET

$

$

Not available

18

Toro 100-1828

SPRING-ARM, ROCKER

$2.99

$

Usually ships in 3-6 days

0

19

Toro 100-1884

ROCKER ARM ASM

$51.99

$

Usually ships in 3-6 days

0

20

Toro 100-1885

SCREW-ADJUSTING

$8.99

$

Usually ships in 3-6 days

0

21

Toro 100-1827

NUT

$2.49

$

Usually ships in 3-6 days

0
