22302 TE (220-D) - Toro Dingo Compact Utility Loader (SN: 099000001 - 099999999) (1999) STARTER (COMPLETE PARTS) Parts Diagram

Dingo Compact Utility Loader

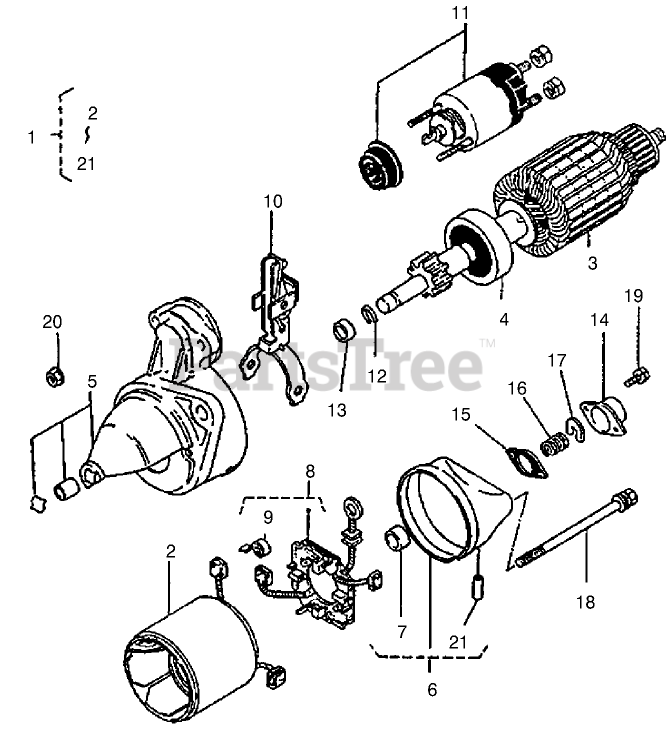

STARTER (COMPLETE PARTS) Parts Diagram

  • Title

1

Toro 100-1754

ASSY STARTER

$

$

Not available

2

Toro 100-1802

YOKE

$

$

Not available

3

Toro 100-1801

ARMATURE

$168.99

$

Usually ships in 3-6 days

0

4

Toro 100-1799

CLUTCH, OVER RUNNING

$

$

Not available

5

Toro 100-1834

ASSY HOUSING

$

$

Not available

6

Toro 100-1805

ASSY FRAME, END

$

$

Not available

7

Toro 100-1806

BUSH

$

$

Not available

8

Toro 100-1808

ASSY HOLDER, BRUSH

$

$

Not available

9

Toro 100-1809

SPRING, BRUSH

$

$

Not available

10

Toro 100-1800

LEVER, DRIVE

$

$

Not available

11

Toro 100-1833

SWITCH, MAGNETIC

$

$

Not available

12

Toro 100-1831

PIN, SNAP

$

$

Not available

13

Toro 100-1853

NUT, PINION STOP

$

$

Not available

14

Toro 100-1810

CAP, END FRAME

$3.99

$

Usually ships in 3-6 days

0

15

Toro 100-1811

GASKET

$

$

Not available

16

Toro 100-1804

SPRING, BRAKE

$

$

Not available

17

Toro 100-1803

SHOE, BRAKE

$

$

Not available

18

Toro 100-1807

BOLT, THROUGH

$

$

Not available

19

Toro 100-1780

SCREW, WITH WASHER

$

$

Not available

20

Toro 100-1813

NUT

$3.99

$

Usually ships in 3-6 days

0

21

Toro 100-1812

PIPE, BREATHER

$

$

Not available
