22302 TE (220-D) - Toro Dingo Compact Utility Loader (SN: 099000001 - 099999999) (1999) NOZZLE HOLDER AND GLOW PLUGS ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

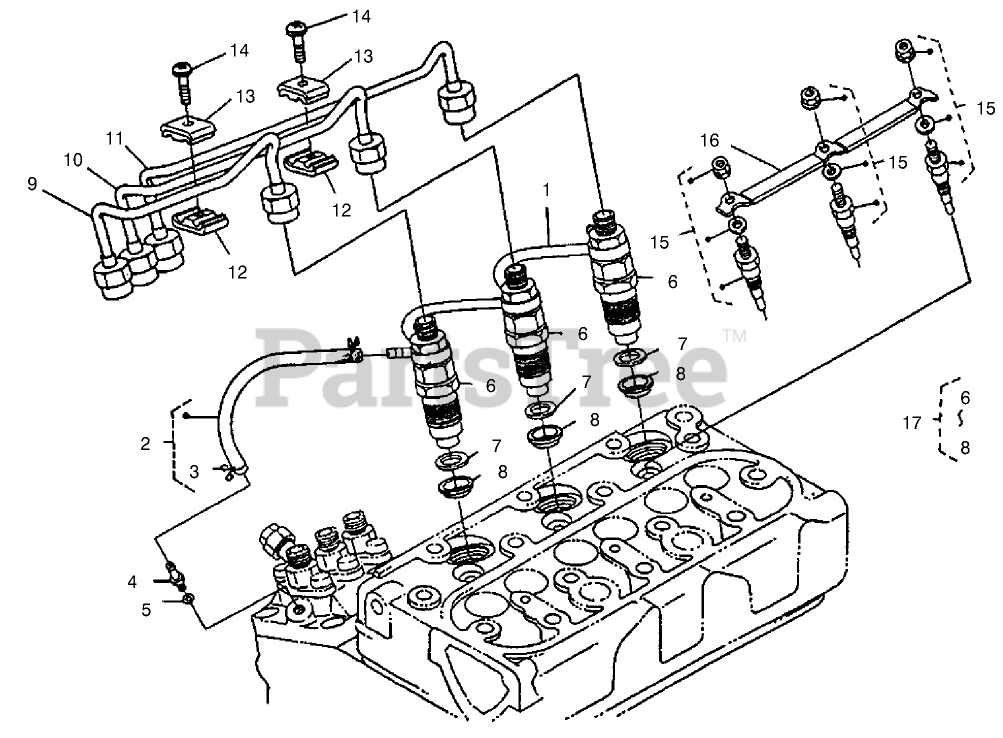

NOZZLE HOLDER AND GLOW PLUGS ASSEMBLY Parts Diagram

  • Title

1

Toro 100-1959

ASSY PIPE, OVER FLOW (S/N 497380)
(Superseded to 100-1960)

$85.99

$

Usually ships in 3-6 days

0

1

Toro 100-1960

OVER FLOW PIPE ASM

$85.99

$

Usually ships in 3-6 days

0

2

Toro 98-9420

OVERFLOW PIPE ASM

$6.49

$

Usually ships in 3-6 days

0

3

Toro 98-7671

CLIP-PIPE

$2.99

$

Usually ships in 3-6 days

0

4

Toro 98-9431

SCREW-BLEEDER, AIR

$22.99

$

Usually ships in 3-6 days

0

5

Toro 98-7654

GASKET

$12.99

$

Usually ships in 3-6 days

0

6

Toro 100-1758

NOZZLE HOLDER ASM

$432.99

$

Usually ships in 3-6 days

0

6

Toro 100-1760

NOZZLE HOLDER ASM
(Superseded to 100-1758)

$432.99

$

Usually ships in 3-6 days

0

7

Toro 98-7676

GASKET

$3.99

$

In Stock, only 2 left!

0

8

Toro 98-7677

SEAL-HEAT

$13.99

$

In Stock, only 2 left!

0

9

Toro 100-2010

PIPE, INJECTION (S/N 512877)
(Superseded to 112-2828)

$52.99

$

Usually ships in 3-6 days

0

9

Toro 100-2011

PIPE-INJECTION
(Superseded to 112-2828)

$52.99

$

Usually ships in 3-6 days

0

10

Toro 100-2012

PIPE, INJECTION (S/N 512877)
(Superseded to 112-2829)

$54.99

$

Usually ships in 3-6 days

0

10

Toro 100-2013

PIPE-INJECTION
(Superseded to 112-2829)

$54.99

$

Usually ships in 3-6 days

0

11

Toro 100-2035

PIPE, INJECTION (S/N 512877)
(Superseded to 112-2830)

$54.99

$

Usually ships in 3-6 days

0

11

Toro 100-2036

PIPE-INJECTION
(Superseded to 112-2830)

$54.99

$

Usually ships in 3-6 days

0

12

Toro 98-7682

CLAMP-PIPE

$9.49

$

Usually ships in 3-6 days

0

13

Toro 98-7683

CLAMP-PIPE

$5.49

$

In Stock, only 2 left!

0

14

Toro 98-7684

SCREW (W/WASHER)

$0.99

$

Usually ships in 3-6 days

0

15

Toro 100-1854

PLUG-GLOW

$124.99

$

Usually ships in 3-6 days

0

16

Toro 100-2037

CORD-PLUG, GLOW

$13.99

$

Usually ships in 3-6 days

0

17

Toro 100-1982

NOZZLE HOLDER KIT

$462.99

$

Usually ships in 3-6 days

0
