22302 TE (220-D) - Toro Dingo Compact Utility Loader (SN: 099000001 - 099999999) (1999) INJECTION PUMP (COMPLETE PARTS) Parts Diagram

Dingo Compact Utility Loader

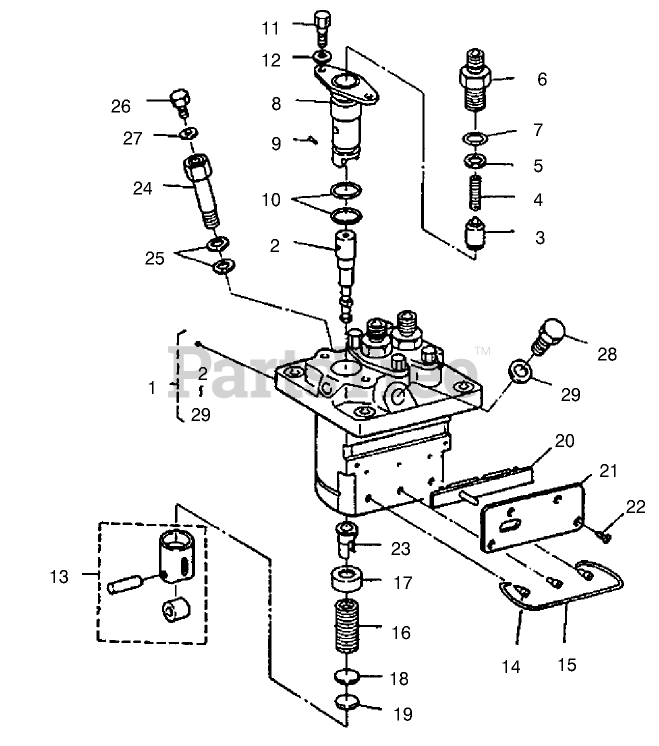

INJECTION PUMP (COMPLETE PARTS) Parts Diagram

  • Title
1

Toro 100-1759

INJECTION PUMP ASM
(Superseded to 130-1223)

$1478.99

$

Usually ships in 3-6 days

0

1

Toro 100-1761

ASSY PUMP, INJ. (S/N 489915 or lower)
(Superseded to 130-1223)

$1478.99

$

Usually ships in 3-6 days

0

2

Toro 100-2005

PLUNGER-PUMP

$130.99

$

Usually ships in 3-6 days

0

3

Toro 98-9421

VALVE-DELIVERY

$

$

Not available

4

Toro 98-9424

SPRING-VALVE, DELIVERY

$

$

Not available

5

Toro 98-9425

GASKET-VALVE, DELIVERY

$16.99

$

Usually ships in 3-6 days

0

6

Toro 100-2007

HOLDER-VALVE, DELIV.

$

$

Not available

7

Toro 98-9447

O-RING

$28.99

$

Usually ships in 3-6 days

0

8

Toro 98-9434

FLANGE-SLEEVE

$26.99

$

Usually ships in 3-6 days

0

9

Toro 98-9443

PIN-JOINT

$20.99

$

Usually ships in 3-6 days

0

10

Toro 100-1895

O-RING
(Superseded to 98-9423)

$7.99

$

Usually ships in 3-6 days

0

11

Toro 100-1935

SCREW
(Superseded to 98-9452)

$10.99

$

Usually ships in 3-6 days

0

12

Toro 100-1931

WASHER

$

$

Not available

13

Toro 98-9422

TAPPET ASM

$

$

Not available

14

Toro 98-9426

PIN-GUIDE, TAPPET

$

$

Not available

15

Toro 98-9450

PIN-CLAMP

$3.99

$

Usually ships in 3-6 days

0

16

Toro 98-9428

SPRING-PLUNGER

$

$

Not available

17

Toro 98-9427

SEAT-SPRING, UPPER

$

$

Not available

18

Toro 98-9429

SEAT-SPRING, LOWER

$

$

Not available

19

$2.99

$

Usually ships in 3-6 days

0

20

Toro 100-1949

RACK-CONTROL

$

$

Not available

21

$

$

Not available

22

Toro 98-9442

SCREW

$41.99

$

Usually ships in 3-6 days

0

23

Toro 98-9432

SLEEVE-CONTROL

$167.99

$

Usually ships in 3-6 days

0

24

Toro 100-1896

SCREW-HOLLOW

$42.99

$

Usually ships in 3-6 days

0

25

Toro 98-9445

GASKET

$2.99

$

In Stock, only 3 left!

0

26

Toro 98-9430

SCREW

$25.99

$

Usually ships in 3-6 days

0

27

Toro 98-9446

GASKET

$3.99

$

Usually ships in 3-6 days

0

28

$

$

Not available

29

Toro 98-9451

GASKET

$2.99

$

Usually ships in 3-6 days

0
