22302 TE (220-D) - Toro Dingo Compact Utility Loader (SN: 099000001 - 099999999) (1999) HYDRAULIC COVER AND HOSE ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

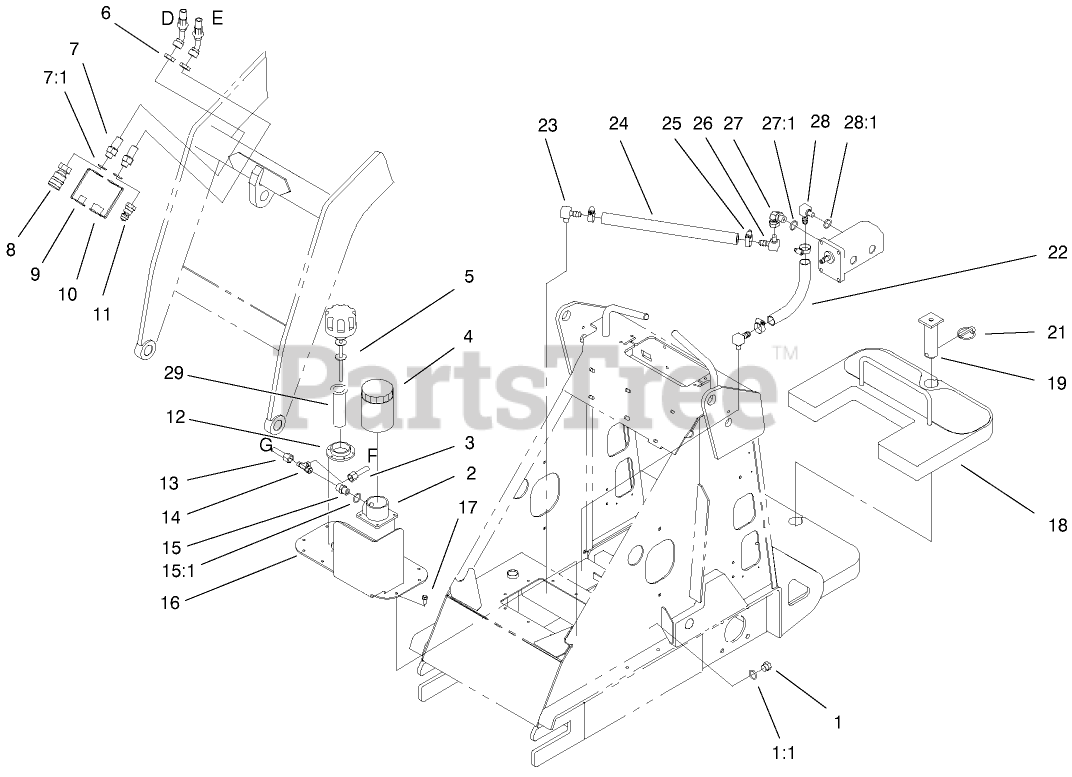

HYDRAULIC COVER AND HOSE ASSEMBLY Parts Diagram

  • Title
1

Toro 353-988

PLUG-HEX

$13.99

$

Usually ships in 3-6 days

0

1:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 13

0

2

Toro 99-3289

FILTER-MOUNT

$

$

Not available

3

Toro 99-5061

TUBE-HYD

$

$

Not available

4

Toro 99-5084

FILTER-ELEMENT

$115.99

$

Usually ships in 3-6 days

0

5

Toro 99-3287

CAP-HYD

$

$

Not available

6

Toro 99-5070

NUT-BULKHEAD

$

$

Not available

7

Toro 99-5071

UNION-BULKHEAD

$

$

Not available

7:1

Toro 99-5078

O-RING

$1.99

$

In Stock, only 3 left!

0

8

Toro 99-1394

QUICK COUPLER-FEMALE

$

$

Not available

9

Toro 98-9913

Dust Plug
(Superseded to 104-1281)

$27.99

$

Usually ships in 3-6 days

0

10

Toro 98-9912

Cap-Dust
(Superseded to 104-1282)

$

$

Not available

11

Toro 99-1393

QUICK COUPLER - MALE

$159.99

$

Usually ships in 3-6 days

0

12

Toro 99-3288

Cap-Mount
(Superseded to 99-3287)

$

$

Not available

13

Toro 99-5060

TUBE-HYD

$

$

Not available

14

Toro 94-7022

FITTING-TEE

$

$

Not available

15

Toro 99-5083

FITTING-STRAIGHT

$

$

Not available

15:1

Toro 99-5085

O-RING

$

$

Not available

16

Toro 100-2135

COVER-TANK, TOP

$382.99

$

Usually ships in 3-6 days

0

17

Toro 33113-020

SCREW-HH

$0.99

$

In Stock, Qty 10

0

18

Toro 99-8636-03

COUNTERWEIGHT ASM

$2267.99

$

Usually ships in 3-6 days

0

19

$307.99

$

Usually ships in 3-6 days

0

21

Toro 99-9978

PIN-LYNCH

$11.99

$

Usually ships in 3-6 days

0

22

Toro 100-2130

HOSE-SUCTION

$

$

Not available

23

Toro 99-5088

FITTING-BARBED 90 DEG

$163.99

$

Usually ships in 3-6 days

0

24

Toro 100-2129

HOSE-SUCTION

$110.99

$

Usually ships in 3-6 days

0

25

Toro 2412-129

CLAMP-HOSE

$4.99

$

In Stock, Qty 7

0

26

Toro 99-5086

FITTING-BARBED 90 DEG

$

$

Not available

27

Toro 99-3096

FITTING

$

$

Not available

27:1

Toro 99-5078

O-RING

$1.99

$

In Stock, only 3 left!

0

28

Toro 99-5087

FITTING-BARBED 90 DEG

$183.99

$

Usually ships in 3-6 days

0

28:1

Toro 99-5075

O-RING

$1.99

$

Usually ships in 3-6 days

0

29

Toro 61-2790

FILTER-SCREEN

$

$

Not available
