22302 TE (220-D) - Toro Dingo Compact Utility Loader (SN: 099000001 - 099999999) (1999) ENGINE MOUNTING ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

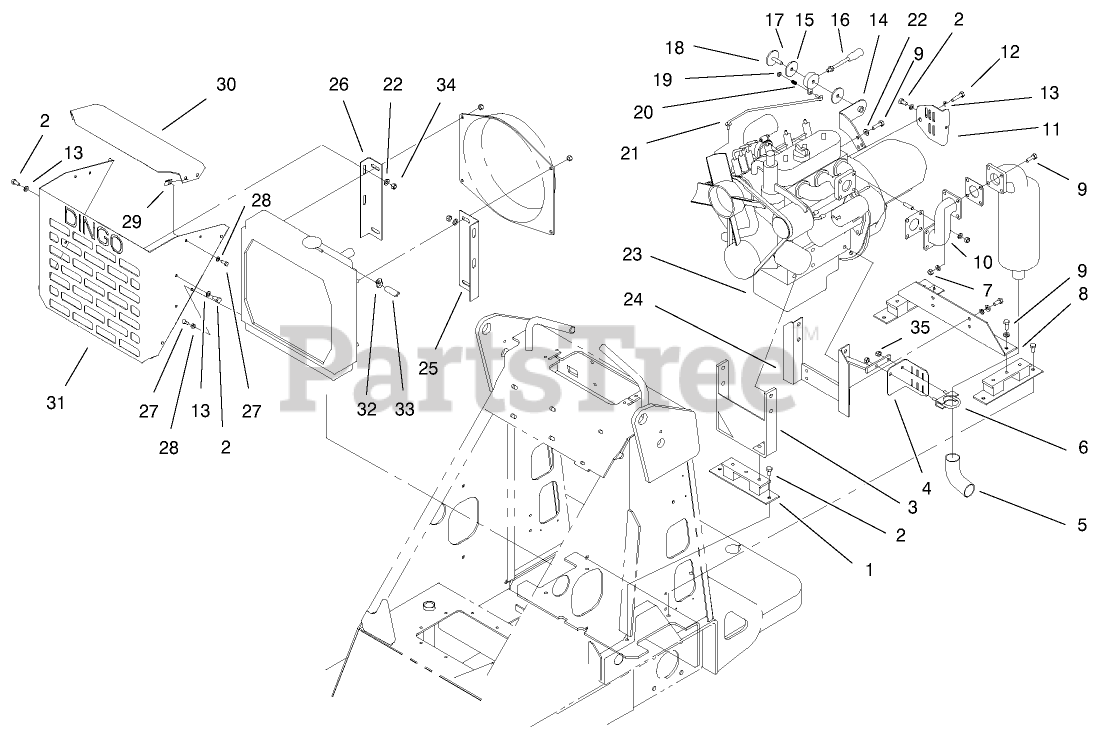

ENGINE MOUNTING ASSEMBLY Parts Diagram

  • Title
1

Toro 100-2108

MOUNT-ENGINE, RUBBER

$

$

Not available

2

Toro 48-7700

SCREW-HH
(Superseded to 33114-016)

$0.99

$

In Stock, only 4 left!

0

3

Toro 100-2109

MOUNT-ENGINE, FRONT

$352.99

$

Usually ships in 3-6 days

0

4

Toro 100-2113

EXHAUST HEAT SHIELD, LOWER

$

$

Not available

5

Toro 100-2102

TAILPIPE-MUFFLER

$

$

Not available

6

Toro 100-2140

U-BOLT

$

$

Not available

7

Toro 48-7930

Nut
(Superseded to 68-9400)

$2.99

$

In Stock, only 2 left!

0

8

Toro 100-2111

SUPPORT-ENGINE

$

$

Not available

9

Toro 48-7710

Bolt
(Superseded to 33114-020)

$0.99

$

In Stock, Qty 13

0

10

Toro 100-2105

TUBE-MOUNT, MUFFLER

$

$

Not available

11

Toro 100-2114

EXHAUST-HEAT SHIELD, MUFFLER

$

$

Not available

12

Toro 48-7740

SCREW
(Superseded to 33114-035)

$5.49

$

In Stock, only 1 left!

0

13

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

14

Toro 100-2121

BRACKET-THROTTLE

$

$

Not available

15

Toro 100-2123

CONTROL-THROTTLE

$

$

Not available

16

Toro 98-4722

LEVER - VALVE

$

$

Not available

17

Toro 100-2122

SPACER-THROTTLE

$

$

Not available

18

Toro 100-2124

RETAINER-THROTTLE

$

$

Not available

19

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

20

Toro 100-2127

SPRING-THROTTLE

$

$

Not available

21

Toro 100-2126

LINKAGE-THROTTLE

$

$

Not available

22

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

23

Toro 100-2150

ENGINE ASM-KUBOTA
(Superseded to 138-6901)

$10927.99

$

Usually ships in 3-6 days

0

24

Toro 100-2110

MOUNT-ENGINE, REAR

$388.99

$

Usually ships in 3-6 days

0

25

Toro 100-2116

RADIATOR MOUNT, BRKT-LH

$

$

Not available

26

Toro 100-2142

RADIATOR MOUNT, BRKT-RH

$

$

Not available

27

Toro 48-7620

SCREW-HH
(Superseded to 33113-016)

$0.99

$

Usually ships in 3-6 days

0

28

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

29

Toro 100-2144

CLIP-M6-1.0

$

$

Not available

30

Toro 100-2115

GUARD-FAN

$

$

Not available

31

Toro 100-2136

SHROUD-RADIATOR

$680.99

$

Usually ships in 3-6 days

0

32

Toro 2412-108

CLAMP-WORM

$3.99

$

In Stock, only 1 left!

0

33

Toro 63-7621

HOSE-FUEL
(Superseded to 110-3257)

$18.99

$

Usually ships in 3-6 days

0

34

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

35

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
