22302 TE (220-D) - Toro Dingo Compact Utility Loader (SN: 099000001 - 099999999) (1999) DYNAMO (COMPLETE PARTS) Parts Diagram

Dingo Compact Utility Loader

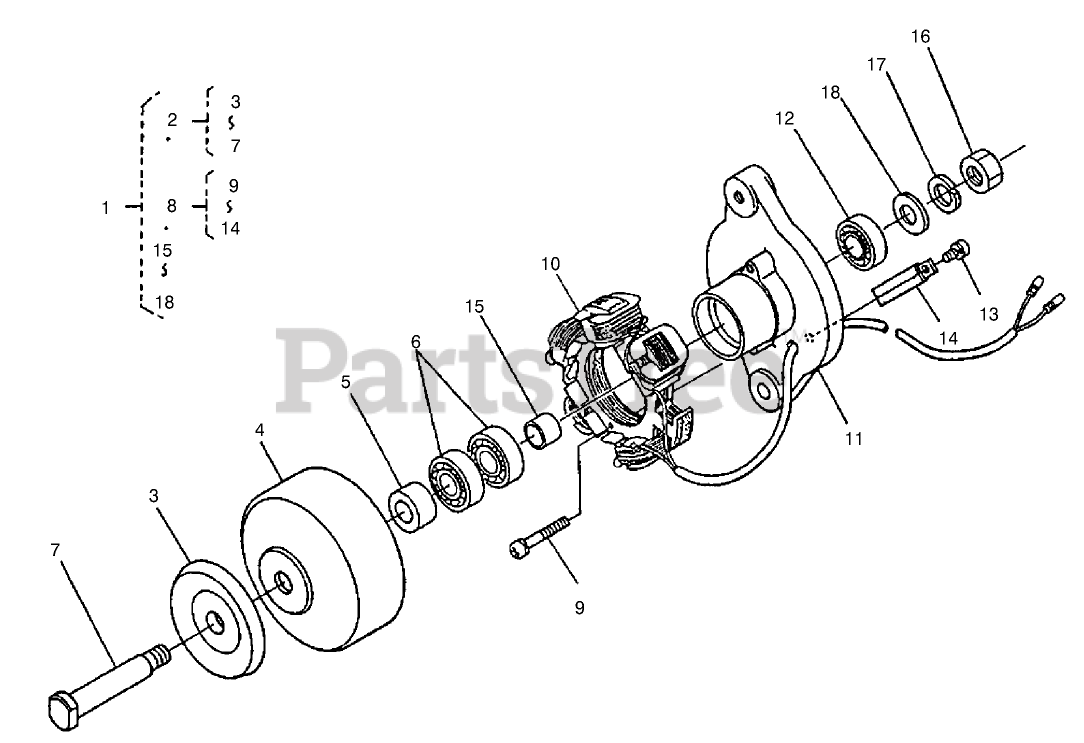

DYNAMO (COMPLETE PARTS) Parts Diagram

  • Title

1

Toro 100-1755

ASSY DYNAMO

$

$

Not available

2

Toro 100-1862

ROTOR ASM

$131.99

$

Usually ships in 3-6 days

0

3

Toro 100-1859

PULLEY
(Superseded to 100-2228)

$8.99

$

Usually ships in 3-6 days

0

4

Toro 100-1860

ROTOR

$121.99

$

Usually ships in 3-6 days

0

5

Toro 100-1863

COLLAR
(Superseded to 100-2184)

$10.99

$

Usually ships in 3-6 days

0

6

Toro 100-1756

BEARING-BALL

$21.99

$

Usually ships in 3-6 days

0

7

Toro 100-1867

SHAFT-FAN

$22.99

$

Usually ships in 3-6 days

0

8

Toro 100-1866

STATOR ASM

$136.99

$

Usually ships in 3-6 days

0

9

Toro 100-1848

SCREW-HEAD, ROUND

$2.99

$

Usually ships in 3-6 days

0

10

Toro 100-1865

STATOR

$276.99

$

Usually ships in 3-6 days

0

11

Toro 100-1861

PLATE

$104.99

$

Usually ships in 3-6 days

0

12

Toro 100-1756

BEARING-BALL

$21.99

$

Usually ships in 3-6 days

0

13

Toro 100-1868

SCREW-HEAD, ROUND

$3.49

$

Usually ships in 3-6 days

0

14

Toro 100-1864

CLAMP-CORD

$3.49

$

Usually ships in 3-6 days

0

15

Toro 100-1844

COLLAR

$11.99

$

Usually ships in 3-6 days

0

16

Toro 100-1847

NUT

$6.49

$

Usually ships in 3-6 days

0

17

Toro 100-1850

WASHER-SPRING

$3.49

$

Usually ships in 3-6 days

0

18

Toro 100-1849

WASHER-PLAIN

$3.49

$

Usually ships in 3-6 days

0
