22302 (220-D) - Toro Dingo Compact Utility Loader (SN: 099000001 - 099999999) (1999) FUEL TANK AND ENGINE ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

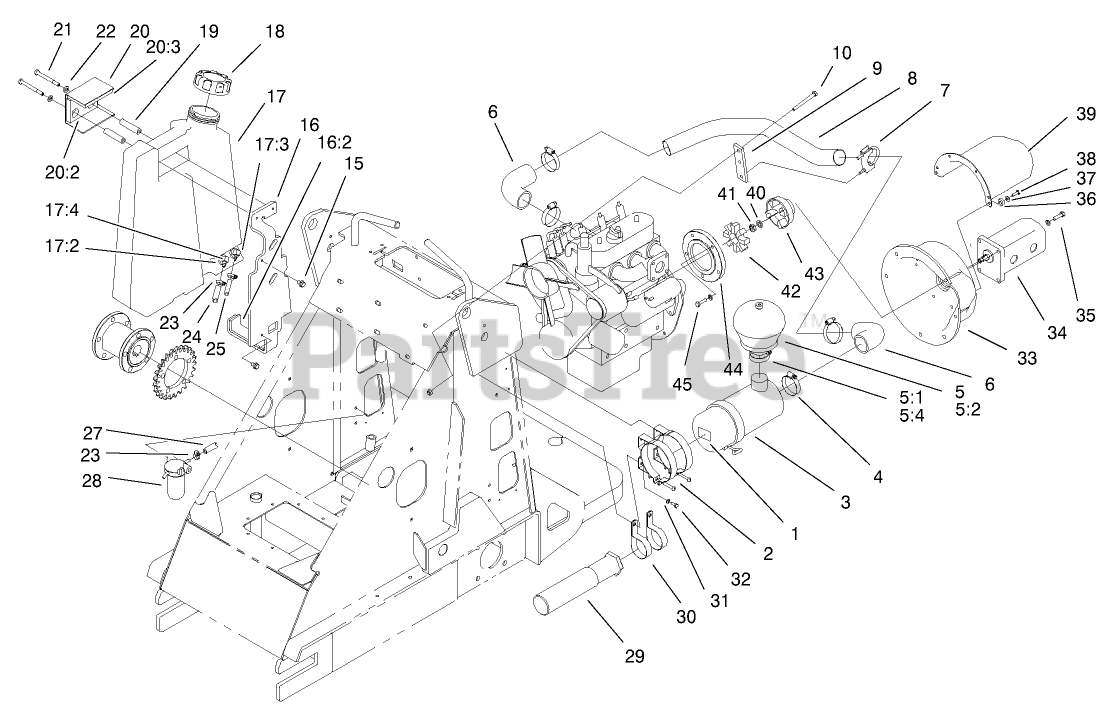

FUEL TANK AND ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 93-7275

DECAL-FLUID, STARTING

$

$

Not available

2

Toro 33-1350

MTG BAND ASM

$

$

Not available

3

Toro 85-4910

AIR CLEANER ASM

$

$

Not available

4

Toro 2412-92

CLAMP-HOSE

$3.49

$

Usually ships in 3-6 days

0

5

Toro 100-2138

PRE CLEANER

$

$

Not available

5:1

Toro 33-1260

COVER ASM

$45.99

$

Usually ships in 3-6 days

0

5:2

Toro 33-1270

BOWL-CLEAR

$15.99

$

Usually ships in 3-6 days

0

5:4

Toro 94-6873

CLAMP

$

$

Not available

5:3

Toro 100-2139

CLAMP

Note: Not illustrated

$17.99

$

Usually ships in 3-6 days

0

6

Toro 100-2103

HOSE-AIR FILTER

$

$

Not available

7

Toro 100-2141

U-BOLT

$

$

Not available

8

Toro 100-2104

TUBE-AIR FILTER

$115.99

$

Usually ships in 3-6 days

0

8:1

Toro 100-4165

SEAL KIT

$

$

Not available

9

Toro 100-2128

MOUNT-TUBE

$

$

Not available

10

Toro 322-20

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

15

Toro 100-1719

SCREW-FLANGE

$7.49

$

Usually ships in 3-6 days

0

16

Toro 100-2540

MOUNT ASM

$560.99

$

Usually ships in 3-6 days

0

16:2

Toro 100-2194

PAD-FOAM

$

$

Not available

16:3

Toro 100-2196

PAD-FOAM

Note: Not illustrated

$14.99

$

Usually ships in 3-6 days

0

17

Toro 100-1594

FUEL TANK ASM, DIESEL

$

$

Not available

17:2

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 12

0

17:3

Toro 100-1596

FITTING-90 DEG
(Superseded to 104-5228)

$18.99

$

Usually ships in 3-6 days

0

17:4

Toro 100-1597

FITTING-90 DEGREE
(Superseded to 46-6550)

$40.99

$

Usually ships in 3-6 days

0

18

Toro 98-2710

DIESEL FUEL CAP ASM

$

$

Not available

19

Toro 100-1718

SPACER

$27.99

$

Usually ships in 3-6 days

0

20

Toro 100-2541

PLATE ASM

$

$

Not available

20:2

Toro 100-2195

PAD-FOAM

$

$

Not available

20:3

Toro 100-2196

PAD-FOAM

$14.99

$

Usually ships in 3-6 days

0

21

Toro 100-1720

SCREW-HH

$

$

Not available

22

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

23

Toro 2412-108

CLAMP-WORM

$3.99

$

In Stock, only 1 left!

0

24

Toro 63-7621

HOSE-FUEL
(Superseded to 110-3257)

$18.99

$

Usually ships in 3-6 days

0

25

Toro 75-4701

HOSE-FUEL

$10.99

$

Usually ships in 3-6 days

0

27

Toro 71-3370

HOSE
(Superseded to 110-3258)

$27.99

$

Usually ships in 3-6 days

0

28

Toro 100-1855

FUEL FILTER ASM

$

$

Not available

29

Toro 74-0720

TUBE-MANUAL

$23.99

$

Usually ships in 3-6 days

0

30

Toro 2412-133

CLAMP-R

$8.99

$

Usually ships in 3-6 days

0

31

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

32

Toro 48-7620

SCREW-HH
(Superseded to 33113-016)

$0.99

$

Usually ships in 3-6 days

0

33

Toro 100-2106

MOUNT-PUMP, DIESEL

$

$

Not available

34

Toro 99-3270

PUMP-GEAR, TANDEM

$

$

Not available

34:2

Toro 99-5004

SEAL KIT - PUMP

Note: Not illustrated

$

$

Not available

34:3

Toro 48-8070

WASHER-LOCK

Note: Not illustrated

$0.99

$

Usually ships in 3-6 days

0

34:4

Toro 100-2112

NUT-JAM

Note: Not illustrated

$

$

Not available

35

Toro 48-7730

SCREW-CAP, HH
(Superseded to 33114-030)

$1.49

$

Usually ships in 3-6 days

0

36

Toro 100-2100

WASHER-RUBBER

$

$

Not available

37

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

38

Toro 48-7630

SCREW
(Superseded to 33113-020)

$0.99

$

In Stock, Qty 10

0

39

Toro 100-2101

Guard-Pump
(Superseded to 104-5750)

$

$

Not available

40

Toro 48-8070

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

41

Toro 100-2112

NUT-JAM

$

$

Not available

42

Toro 99-3268

HUB-PUMP

$

$

Not available

43

Toro 99-3269

COUPLING

$

$

Not available

44

Toro 100-2107

COUPLER-PUMP, DIESEL

$

$

Not available

45

Toro 100-1770

BOLT

$2.49

$

Usually ships in 3-6 days

0
