22302 (220-D) - Toro Dingo Compact Utility Loader (SN: 099000001 - 099999999) (1999) FUEL PUMP ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

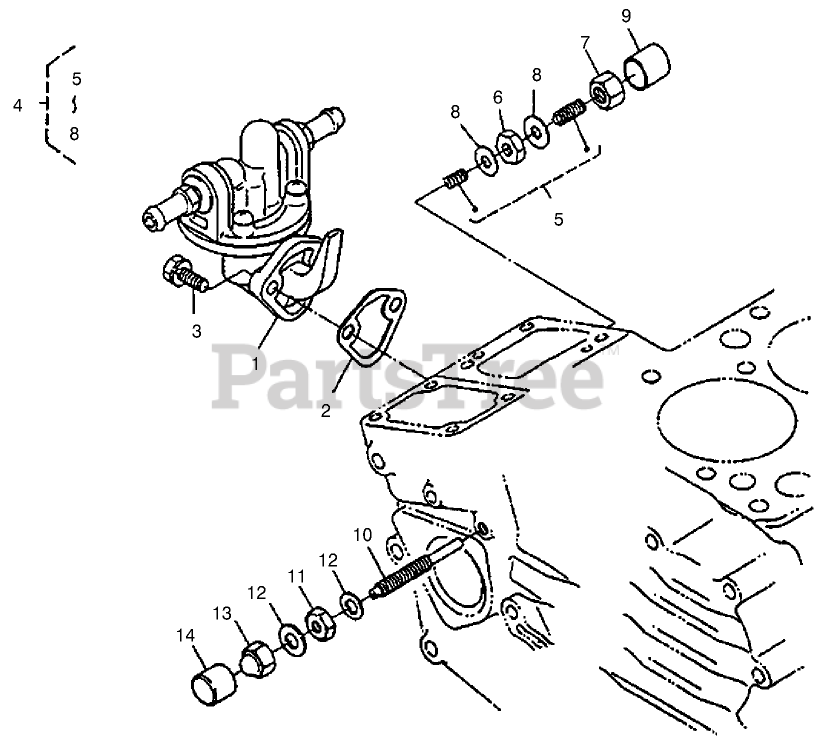

FUEL PUMP ASSEMBLY Parts Diagram

  • Title

1

Toro 100-1897

ASSY PUMP, FUEL (THRU AUG. 1994)
(Superseded to 100-2232)

$374.99

$

Usually ships in 3-6 days

0

1

Toro 100-2052

ASSY PUMP, FUEL (FROM SEPT. 1994)
(Superseded to 100-2232)

$374.99

$

Usually ships in 3-6 days

0

2

Toro 100-1961

GASKET-PUMP, FUEL
(Superseded to 98-9636)

$3.99

$

Usually ships in 3-6 days

0

2

Toro 98-9636

GASKET-PUMP, FUEL

$3.99

$

Usually ships in 3-6 days

0

3

Toro 98-7692

BOLT

$1.49

$

Usually ships in 3-6 days

0

4

Toro 100-1898

IDLE APPARATUS ASM

$28.99

$

Usually ships in 3-6 days

0

5

Toro 100-1899

ADJUSTING BOLT ASM

$12.99

$

Usually ships in 3-6 days

0

6

Toro 100-1846

NUT

$4.99

$

Usually ships in 3-6 days

0

7

Toro 100-1901

NUT-CAP

$8.99

$

Usually ships in 3-6 days

0

8

Toro 98-7428

GASKET

$1.49

$

Usually ships in 3-6 days

0

9

Toro 100-1902

CAP

$5.49

$

Usually ships in 3-6 days

0

10

Toro 100-1900

BOLT-ADJUSTING

$

$

Not available

11

Toro 98-9439

NUT

$0.99

$

Usually ships in 3-6 days

0

12

Toro 98-7654

GASKET

$12.99

$

Usually ships in 3-6 days

0

13

Toro 98-9441

NUT-CAP
(Superseded to 99-8387)

$4.49

$

Usually ships in 3-6 days

0

14

Toro 98-9558

CAP

$

$

Not available
