22302 (220-D) - Toro Dingo Compact Utility Loader (SN: 099000001 - 099999999) (1999) FRAME AND LOADER ARM ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

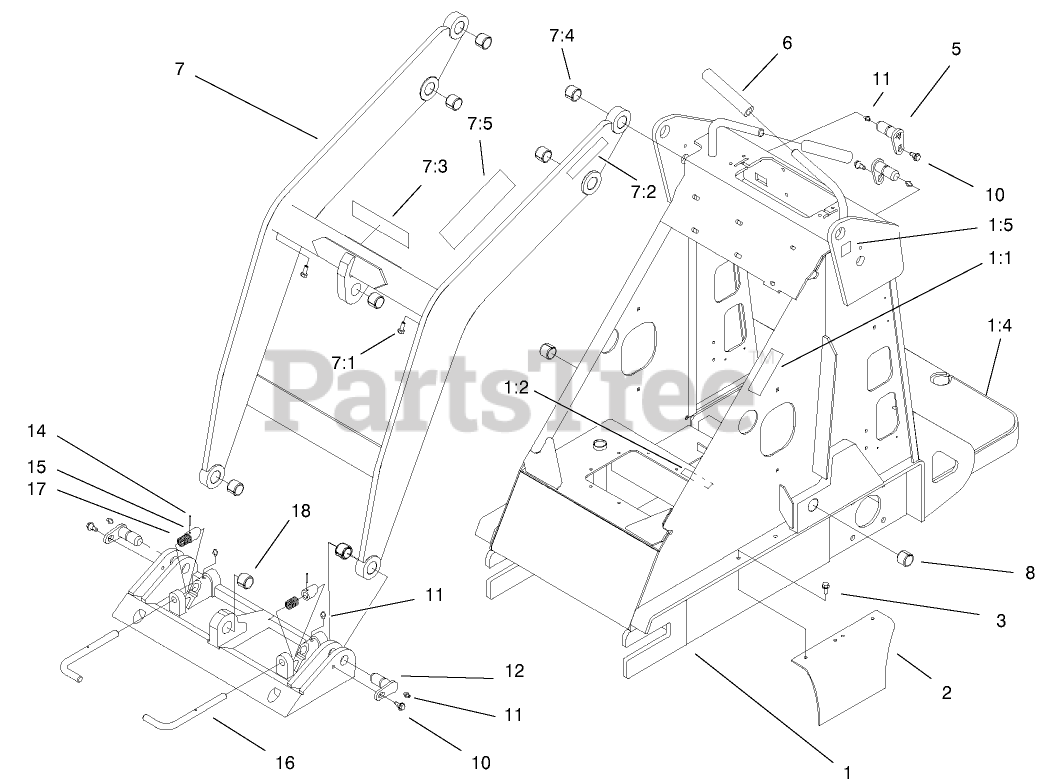

FRAME AND LOADER ARM ASSEMBLY Parts Diagram

  • Title

1

Toro 99-3039

FRAME ASM

$

$

Not available

1:1

Toro 93-9367

DECAL-WARNING

$9.99

$

In Stock, only 1 left!

0

1:2

Toro 93-7272

DECAL-WARNING

$8.99

$

Usually ships in 3-6 days

0

1:4

Toro 98-9947

TREAD-FOOT

$35.99

$

Usually ships in 3-6 days

0

1:5

Toro 93-9084

DECAL-POINT, LIFT

$9.49

$

Usually ships in 3-6 days

0

2

Toro 98-4669

Cover-Chain
(Superseded to 98-4669-01)

$88.99

$

Usually ships in 3-6 days

0

3

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

5

Toro 98-4716

PIN-PIVOT

$

$

Not available

6

Toro 99-3251

GRIP-CUSHION

$

$

Not available

7

Toro 99-1354

Loader ASM
(Superseded to 106-8155)

$2349.99

$

Usually ships in 3-6 days

0

7:1

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

7:2

Toro 80-8010

DECAL-WARNING, KEEP HANDS AWAY

$

$

Not available

7:3

Toro 98-4682

DECAL-CAUTION

$22.99

$

Usually ships in 3-6 days

0

7:4

Toro 98-4871

BUSHING-TENSION

$23.99

$

In Stock, only 2 left!

0

7:5

Toro 98-9051

DECAL-DANGER

$34.99

$

In Stock, only 1 left!

0

8

Toro 98-4871

BUSHING-TENSION

$23.99

$

In Stock, only 2 left!

0

10

Toro 99-5105

BOLT-SHOULDER

$6.49

$

In Stock, Qty 5

0

11

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

12

Toro 98-4714

PIN-PIVOT

$

$

Not available

14

Toro 32121-94

PIN-SPECIAL

$

$

Not available

15

Toro 98-4692

CAM-ATTACH, QUICK

$

$

Not available

16

Toro 100-3373

PIN

$52.99

$

Usually ships in 3-6 days

0

17

Toro 98-4694

SPRING-COMPRESSION

$11.99

$

In Stock, only 1 left!

0

18

Toro 98-4871

BUSHING-TENSION

$23.99

$

In Stock, only 2 left!

0

Toro 98-2656

QUICK ATTACH SERVICE ASM

$3526.99

$

Usually ships in 3-6 days

0
