22300 (222) - Toro Dingo Compact Utility Loader (SN: 089000001 - 089999999) (1998) HYDRAULIC CYLINDER ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

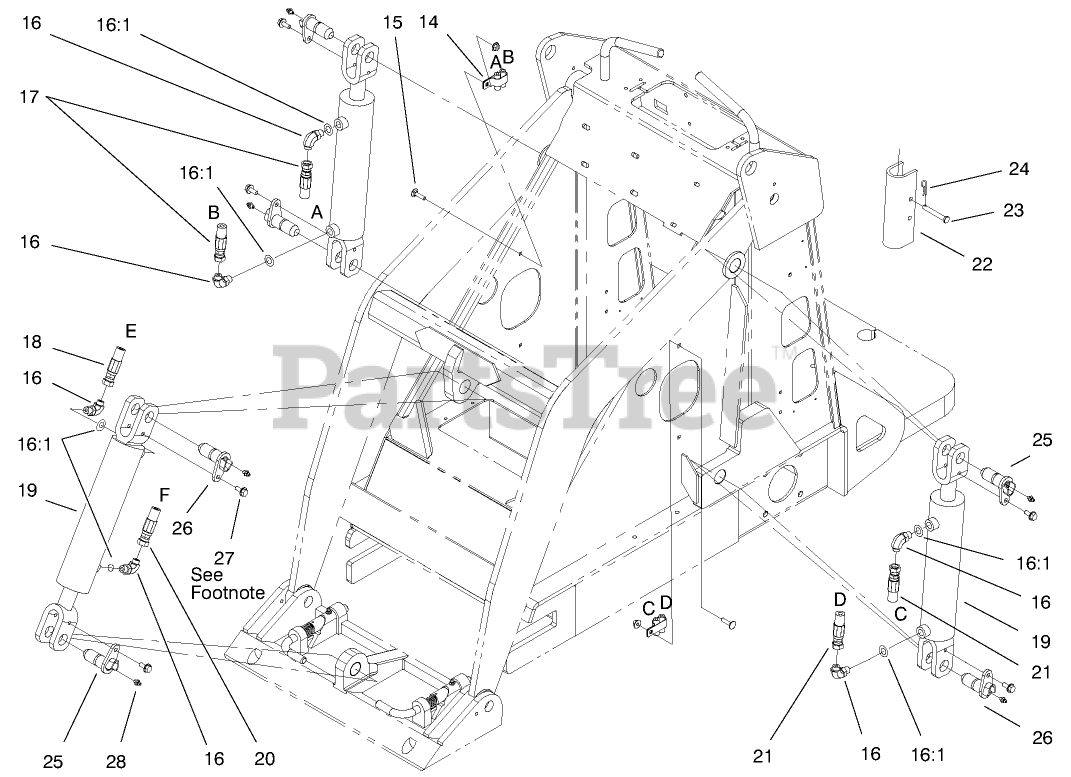

HYDRAULIC CYLINDER ASSEMBLY Parts Diagram

  • Title

14

Toro 2412-137

CLAMP-R, DOUBLE

$6.99

$

Usually ships in 3-6 days

0

15

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 14

0

16

Toro 353-374

FITTING-ELBOW, 90 DEG
(Superseded to 103-1802)

$23.99

$

In Stock, only 2 left!

0

16:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

17

Toro 99-5062

HOSE-HYD

$171.99

$

Usually ships in 3-6 days

0

18

Toro 99-5063

HOSE-HYD

$

$

Not available

19

Toro 99-3165

Hydraulic Cylinder
(Superseded to 99-3278)

$

$

Not available

19:1

Toro 99-3181

SEAL KIT-CYLINDER

Note: Not illustrated

$

$

Not available

20

Toro 99-5064

HOSE-HYD

$

$

Not available

21

Toro 99-5065

HOSE-HYD

$165.99

$

Usually ships in 3-6 days

0

22

Toro 98-4675

Lock-Cylinder
(Superseded to 98-4675-01)

$34.99

$

Usually ships in 3-6 days

0

23

Toro 283-52

PIN-CLEVIS

$12.99

$

Usually ships in 3-6 days

0

24

Toro 3290-467

PIN-HAIR

$0.99

$

In Stock, Qty 5

0

25

Toro 99-3045

ASM - PIVOT PIN, AU

Note: Pivot Pin Requires Special Bolt Number 99-5105

$

$

Not available

26

Toro 99-3044

ASM - PIVOT PIN, AU

Note: Pivot Pin Requires Special Bolt Number 99-5105

$

$

Not available

27

Toro 48-7700

SCREW-HH
(Superseded to 33114-016)

$0.99

$

In Stock, only 4 left!

0

28

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0
