22300 (222) - Toro Dingo Compact Utility Loader (SN: 089000001 - 089999999) (1998) FUEL TANK ASSEMBLY 100-2531 Parts Diagram

Dingo Compact Utility Loader

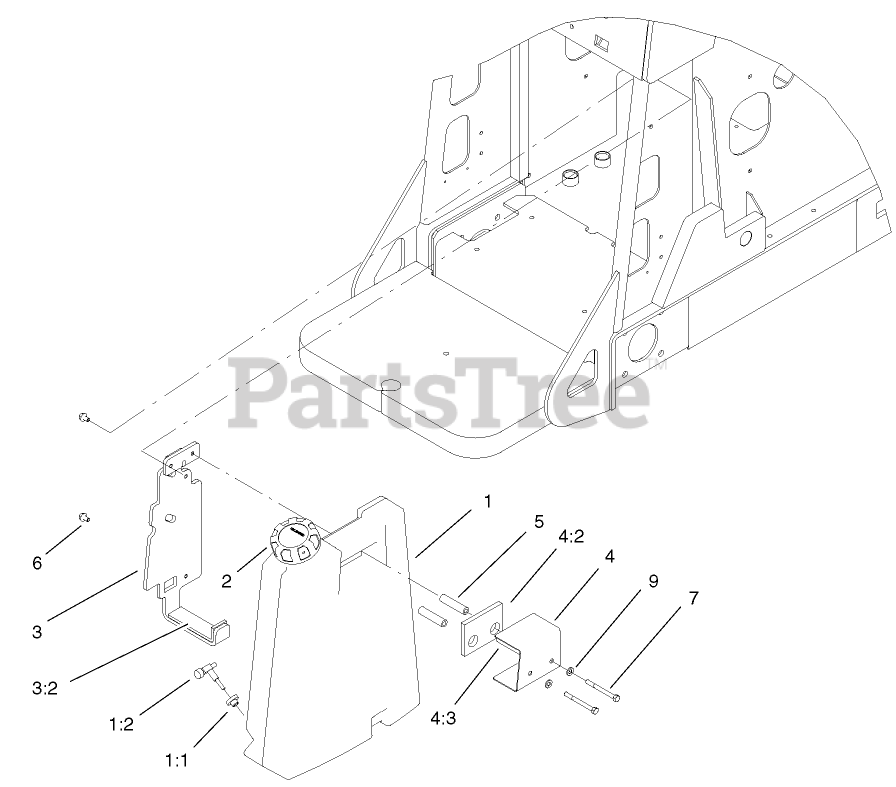

FUEL TANK ASSEMBLY 100-2531 Parts Diagram

  • Title

1

Toro 98-4654

Fuel Tank ASM
(Superseded to 105-4052)

$

$

Not available

1:1

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 12

0

1:2

Toro 104048

VALVE-FUEL

$33.99

$

In Stock, only 1 left!

0

2

Toro 88-3980

GAS CAP ASM

$33.99

$

In Stock, Qty 6

0

3

Toro 100-2540

MOUNT ASM

$560.99

$

Usually ships in 3-6 days

0

3:2

Toro 100-2194

PAD-FOAM

$

$

Not available

4

Toro 100-2541

PLATE ASM

$

$

Not available

4:2

Toro 100-2195

PAD-FOAM

$

$

Not available

4:3

Toro 100-2196

PAD-FOAM

$14.99

$

Usually ships in 3-6 days

0

5

Toro 100-1718

SPACER

$27.99

$

Usually ships in 3-6 days

0

6

Toro 100-1719

SCREW-FLANGE

$7.49

$

Usually ships in 3-6 days

0

7

Toro 100-1720

SCREW-HH

$

$

Not available

8

Toro 2412-108

CLAMP-WORM

Note: Not illustrated

$3.99

$

In Stock, only 1 left!

0

9

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
