22300 (222) - Toro Dingo Compact Utility Loader (SN: 089000001 - 089999999) (1998) ENGINE ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

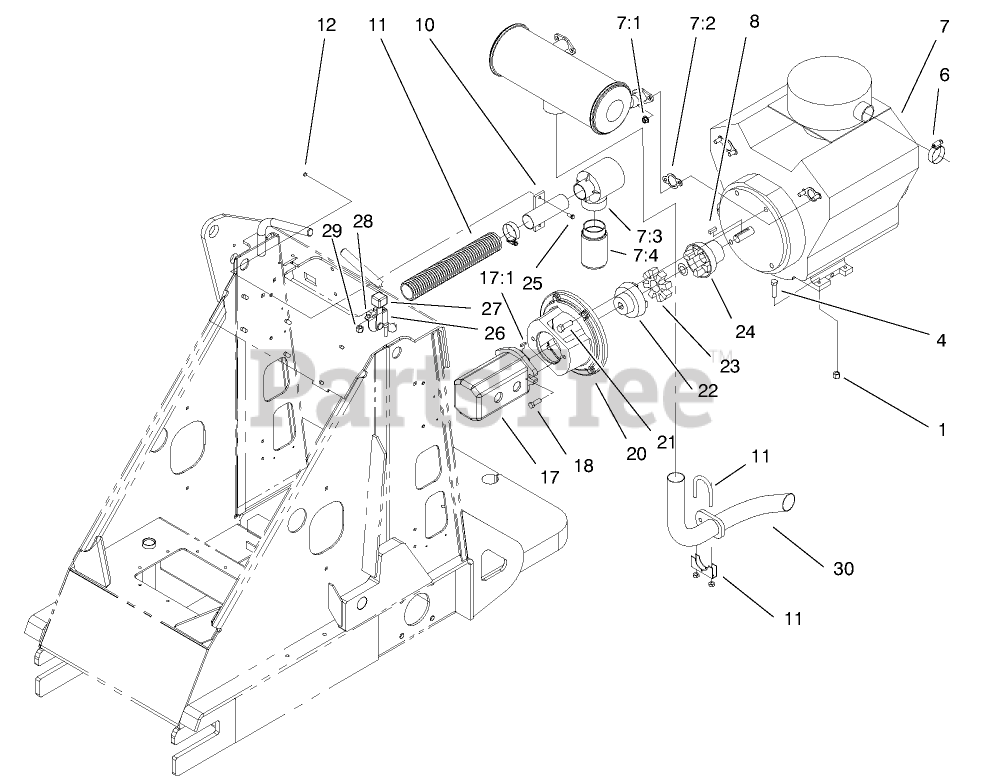

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

4

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

$4.99

$

Usually ships in 3-6 days

0

7

Engine (Ch22s 66551) Kohler 22 Hp

$

$

Not available

7:1

Toro 92-6780

NUT-HF
(Superseded to 33004-00)

$0.99

$

In Stock, Qty 11

0

7:2

Toro 93-0350

GASKET-EXHAUST
(Superseded to 110-6697)

$

$

Not available

7:3

Toro 98-9903

PRECLEANER - KOHLER F/W

$

$

Not available

7:4

Toro 98-9904

JAR - PRECLEANER

$

$

Not available

8

Toro 10-7070

KEY-SQUARE

$1.49

$

In Stock, Qty 8

0

10

Toro 99-3266

Tube Weld ASM

$

$

Not available

11

Toro 98-9073

HOSE - AIR

$

$

Not available

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 100-2531

FUEL TANK KIT-GAS
(Superseded to 105-4052)

Note: Not illustrated

$

$

Not available

16

Toro 99-3293

PLATE

$

$

Not available

17

Toro 99-3270

PUMP-GEAR, TANDEM

$

$

Not available

17:1

Toro 98-4700

KEY-SQUARE

$15.99

$

Usually ships in 3-6 days

0

17:2

Toro 99-5004

SEAL KIT - PUMP

Note: Not illustrated

$

$

Not available

17:3

Toro 48-8070

WASHER-LOCK

Note: Not illustrated

$0.99

$

Usually ships in 3-6 days

0

17:4

Toro 100-2112

NUT-JAM

Note: Not illustrated

$

$

Not available

18

Toro 48-7780

SCREW
(Superseded to 33115-025)

$1.99

$

Usually ships in 3-6 days

0

20

Toro 99-3283

COUPLING

$

$

Not available

21

Toro 324-6

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

22

Toro 99-3269

COUPLING

$

$

Not available

23

Toro 99-3268

HUB-PUMP

$

$

Not available

24

Toro 99-3267

HUB-ENGINE

$

$

Not available

25

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

26

Toro 98-4707

PLATE - CONTROL

$

$

Not available

27

Toro 85-9310

CONTROL-CHOKE / THROTTLE

$103.99

$

Usually ships in 3-6 days

0

28

Toro 3234-33

SCREW-HHF

$0.99

$

In Stock, Qty 10

0

29

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 12

0

30

Toro 99-3272

TUBE-EXHAUST
(Superseded to 105-8400)

$801.99

$

Usually ships in 3-6 days

0

Toro 2412-98

CLAMP-HOSE

Note: Not illustrated

$1.49

$

In Stock, Qty 20+

0

Toro 98-4668

HOSE-FUEL

Note: Not illustrated

$

$

Not available
