223-8521-00 - Power Streak Lawn Tractor (1985) (Goodyear) Parts Parts Diagram

Lawn Tractor

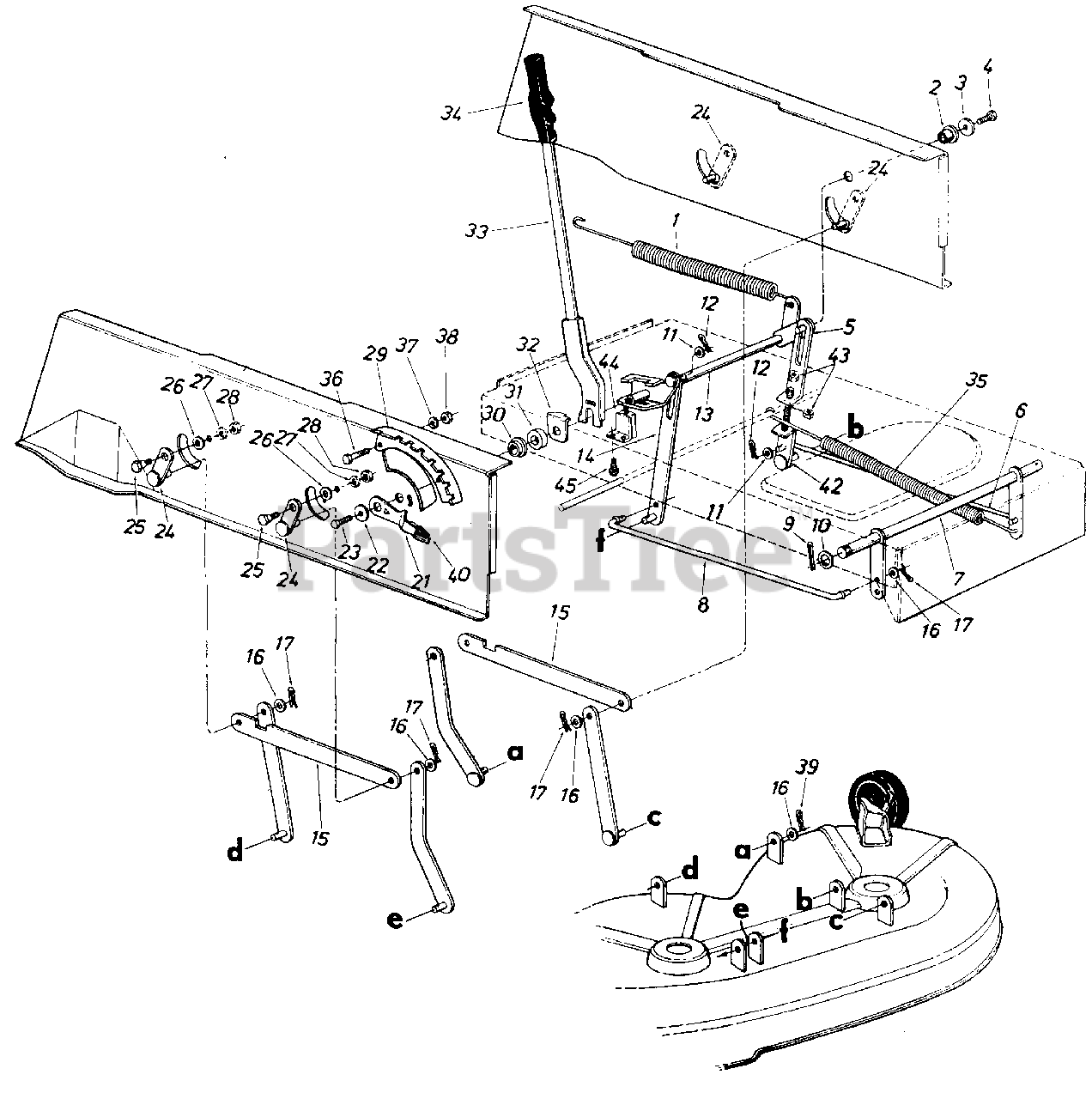

Parts Parts Diagram

  • Title

1

MTD 732-0307

Extension Spring .99" O.D. x 11.00" Lg.
(Superseded to 932-0307A)

$

$

Not available

2

MTD 741-0313

Flange Bearing .634" I.D.
(Superseded to 741-0487C)

$7.49

$

In Stock, only 2 left!

0

3

MTD 736-0231

Fl-Wash. .344" I.D. x 1.125" O.D. x .125

$4.99

$

In Stock, Qty 20+

0

4

MTD 710-0604

Hex Wash. Hd. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

5

MTD 16063

Adj. Link Lift
(Superseded to 14802A-0637)

$

$

Not available

6

MTD 711-0738

Stabilizer Rod

$

$

Not available

7

MTD 14647

Stabilizer Shaft Ass'y.

$

$

Not available

8

MTD 711-0738

Stabilizer Rod

$

$

Not available

9

MTD 714-0470

Cotter Pi n 118" Dia. x 11/4"

$4.49

$

In Stock, Qty 20+

0

10

MTD 736-0156

Fl-Wash. .635" I.D. x 1.12" O.D.

$4.49

$

In Stock, Qty 12

0

11

MTD 736-0192

Fl-Wash. .531" I.D. x .940"O.D.

$4.49

$

In Stock, Qty 18

0

12

MTD 714-0101

Inter. Cotter Pin .50" Dia.

$4.99

$

In Stock, only 2 left!

0

13

MTD 14641

Lift Shaft Ass'y.

Variations

MTD 14641-0637

No Longer Available SHAFT-LIFT - POWDER BLACK (0637)

$

$

Not available

$

$

14

MTD 14802

Link Deck Lift Ass'y.
(Superseded to 14802A-0637)

$

$

Not available

15

MTD 09735

Connecting Rod

$

$

Not available

16

MTD 736-0300

Fl-Wash. .40" I.D. x .88"O.D.

$4.49

$

In Stock, Qty 20+

0

17

MTD 714-0104

Inter. Cotter Pin For 3/8" Rod

$4.49

$

In Stock, Qty 20+

0

21

MTD 732-0412

Deck Lift-Down Stop
(Superseded to 983-0003)

$

$

Not available

22

MTD 736-0231

Fl-Wash. .344" I.D. x 1.125" O.D. x .125

$4.99

$

In Stock, Qty 20+

0

23

MTD 710-0604

Hex Wasn. Hd. Self-Tap Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

24

MTD 09721

Pivot Link Ass'y.

$

$

Not available

25

MTD 738-0140

Shld. Bolt .437" Dia. x .180" Lg. (5/16-18)

$5.99

$

In Stock, Qty 15

0

26

MTD 736-0264

Fl-Wash. .344" I.D. x .62"O.D.

$6.99

$

Usually ships in 3-6 days

0

27

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

28

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

29

MTD 14633

Index Brkt.

$

$

Currently unavailable

30

MTD 736-0341

Flange Wash. .628" I.D. x 1.25" O.D.
(Superseded to 736-0341B)

$

$

Not available

31

MTD 735-0216

Rubber Wash. 1.50" O.D. x .63" I.D. x .60

$

$

Not available

32

MTD 14654

Retainer Washer-Lift Handle

$

$

Currently unavailable

33

MTD 14645

Lift Handle Ass'y.

$

$

Currently unavailable

34

MTD 720-0157

Grip
(Superseded to 920-0233)

Note: (Lift Handle)

$

$

Not available

35

MTD 732-0410

Extension Spring .99" O.D. x 13.25" Lg.

$

$

Not available

36

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

37

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

38

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

39

MTD 714-0101

Inter. Cotter Pin

$4.99

$

In Stock, only 2 left!

0

40

MTD 08540

Knob

$

$

Not available

42

MTD 16064

Adj. Link Lift Ass'y.
(Superseded to 14802A-0637)

$

$

Not available

43

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

44

MTD 725-0803

Safety Switch
(Superseded to 725-0803B)

$33.99

$

In Stock, only 1 left!

0

45

MTD 710-0351

Hex B-Tap Scr. #10 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0
