22298 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 315000001 - 315999999) (2015) TRANSMISSION ASSEMBLY Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

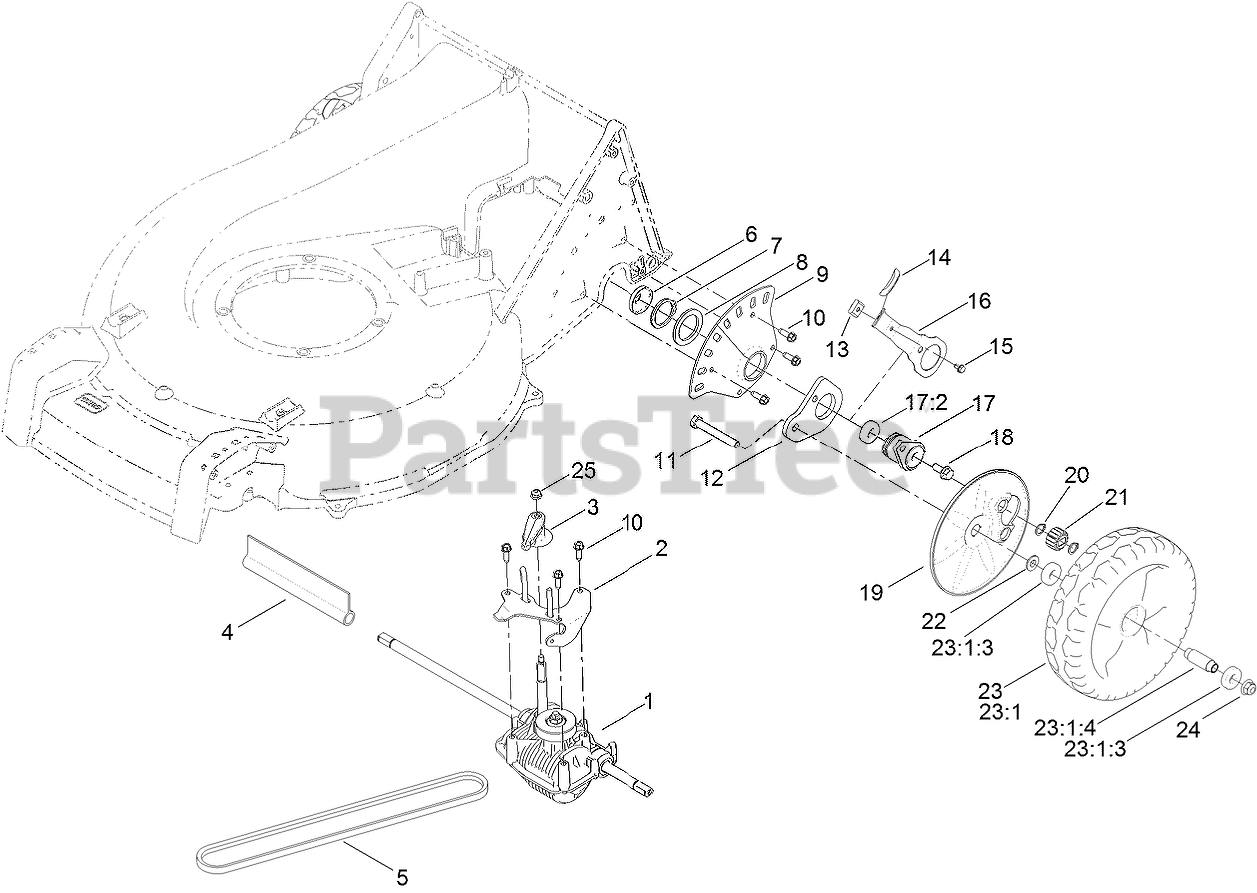

TRANSMISSION ASSEMBLY Parts Diagram

  • Title
1

Toro 131-0859

TRANSMISSION-HD
(Superseded to 131-5350)

$444.99

$

In Stock, only 2 left!

0

2

Toro 125-5090-03

GUIDE-BELT

$34.99

$

Usually ships in 3-6 days

0

3

Toro 125-5040

LEVER-SHIFT

$6.49

$

Usually ships in 3-6 days

0

4

Toro 130-9681

COVER-SHAFT, TRANSMISSION

$4.49

$

Usually ships in 3-6 days

0

5

Toro 125-1011

BELT-V

$13.99

$

In Stock, Qty 10

0

6

Toro 127-6848

COVER-BEARING

$3.49

$

In Stock, Qty 20+

0

7

Toro 32151-10

RING-RETAINING

$1.49

$

In Stock, only 4 left!

0

8

Toro 98-1452

Washer-Thrust

$1.49

$

In Stock, Qty 20+

0

9

Toro 130-6422

PLATE-HOC, REAR

$14.99

$

In Stock, Qty 13

0

10

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

11

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 14

0

12

Toro 130-6421

ARM-PIVOT, REAR
(Superseded to 133-2641)

$11.99

$

In Stock, only 3 left!

0

13

Toro 130-9690

KEY-ARM, SPRING
(Superseded to 131-5377)

$1.99

$

In Stock, Qty 20+

0

14

Toro 125-1093

KNOB-LEVER, HOC

$4.99

$

In Stock, Qty 15

0

15

Toro 104-2065

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

16

Toro 121-1448-03

ARM-SPRING, REAR

$10.99

$

In Stock, Qty 9

0

17

Toro 121-1424

RETAINER ASM
(Superseded to 136-5894)

$45.99

$

In Stock, only 4 left!

0

17:2

Toro 52-2450

BEARING-WHEEL

$18.99

$

In Stock, Qty 20+

0

18

Toro 130-9692

SCREW-HWH
(Superseded to 133-2668)

$1.99

$

In Stock, Qty 7

0

19

Toro 125-1082

COVER-WHEEL

$5.99

$

In Stock, Qty 20+

0

20

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

21

Toro 110-9417

GEAR-PINION, 15T
(Superseded to 131-5399)

$5.49

$

In Stock, Qty 20+

0

22

Toro 74-1671

SPACER-COVER, WHEEL

$1.99

$

In Stock, Qty 12

0

23

Toro 125-1081

WHEEL ASM
(Superseded to 136-5850)

$77.99

$

In Stock, Qty 5

0

23:1

WHEEL

Note: Not serviced separately

$

$

Not available

23:1:3

Toro 52-2450

BEARING-WHEEL

$18.99

$

In Stock, Qty 20+

0

23:1:4

Toro 125-1077

SPACER

$6.99

$

In Stock, only 3 left!

0

24

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

25

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0
