22297 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 316000001 - 316999999) (2016) HANDLE AND CONTROL ASSEMBLY Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

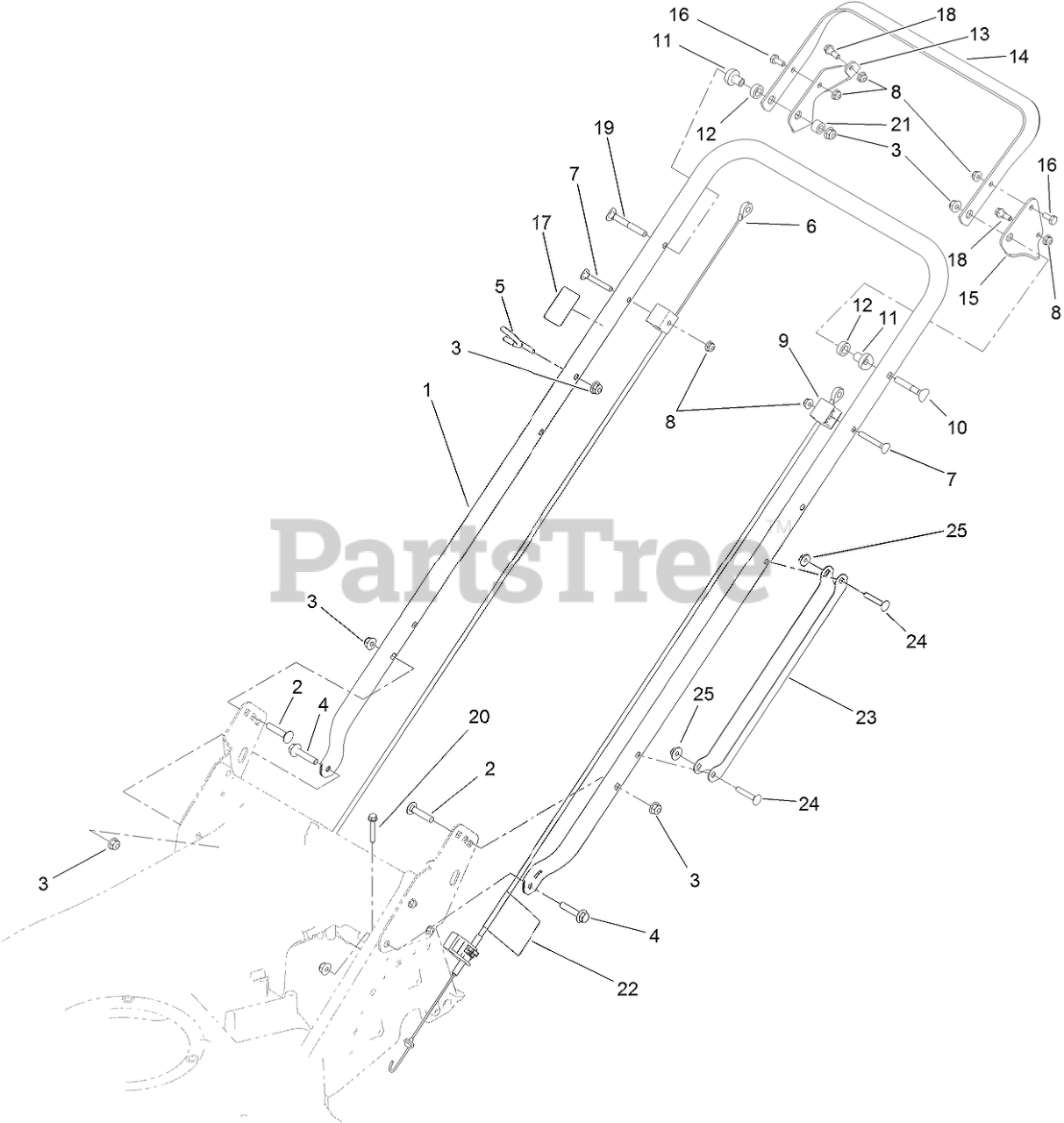

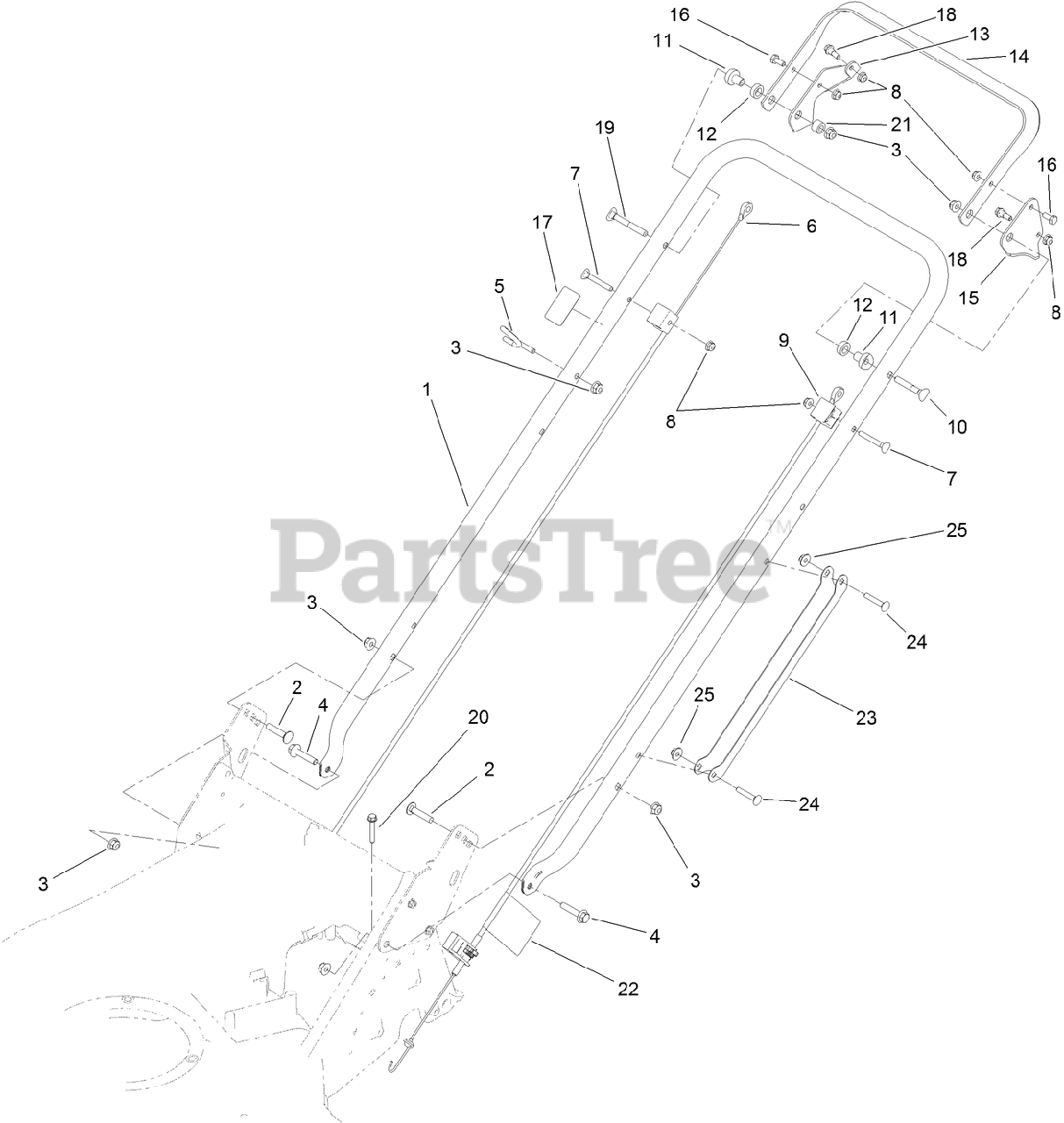

HANDLE AND CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 125-1016-03

HANDLE
(Superseded to 136-5861-03)

$111.99

$

In Stock, only 1 left!

0

2

Toro 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 6

0

3

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

4

Toro 115-1794

SCREW-HHF

$1.99

$

In Stock, Qty 11

0

5

Toro 116-1056

GUIDE,ROPE

$6.49

$

In Stock, only 2 left!

0

6

Toro 130-9704

CABLE-BRAKE
(Superseded to 136-7000)

$38.99

$

In Stock, Qty 10

0

7

Toro 95-4453

SCREW

$3.49

$

In Stock, only 1 left!

0

8

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

9

Toro 130-9689

CABLE-TRACTION

$56.99

$

In Stock, Qty 6

0

10

Toro 17-9428

SCREW-HANDLE

$1.99

$

Usually ships in 3-6 days

0

11

Toro 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

12

Toro 256-276

SPACER-NYLON

$2.99

$

Usually ships in 3-6 days

0

13

Toro 125-8398-03

BRACKET-CONTROL, BRAKE

$15.99

$

Usually ships in 3-6 days

0

14

Toro 125-8355-03

BAR-CONTROL, ZONE START

$33.99

$

In Stock, only 1 left!

0

15

Toro 125-1068-03

LEVER-CONTROL, TRACTION

$10.99

$

Usually ships in 3-6 days

0

16

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 125-8404

DECAL-PRIMER

$

$

Currently unavailable

18

Toro 42-3560

BOLT-SHOULDER

$5.99

$

In Stock, only 3 left!

0

19

Toro 125-8408

SCREW-HANDLE

$2.49

$

Usually ships in 3-6 days

0

20

Toro 94-2691

SCREW-HWH

$1.49

$

Usually ships in 3-6 days

0

21

Toro 98-4695

SPACER

$7.99

$

Usually ships in 3-6 days

0

22

Toro 130-6722

DECAL-ADJUST, SELF PROPEL DRIVE

$4.99

$

Usually ships in 3-6 days

0

23

Toro 127-6897-03

GUARD-CABLE, HANDLE

$9.49

$

Usually ships in 3-6 days

0

24

Toro 108-0988

SCREW-CARR

$0.99

$

In Stock, only 3 left!

0

25

Toro 114-3778

NUT-HEX FLG

$1.49

$

In Stock, Qty 12

0
