22297 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 315000001 - 315999999) (2015) ENGINE, FUEL-TANK AND BLADE ASSEMBLY Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

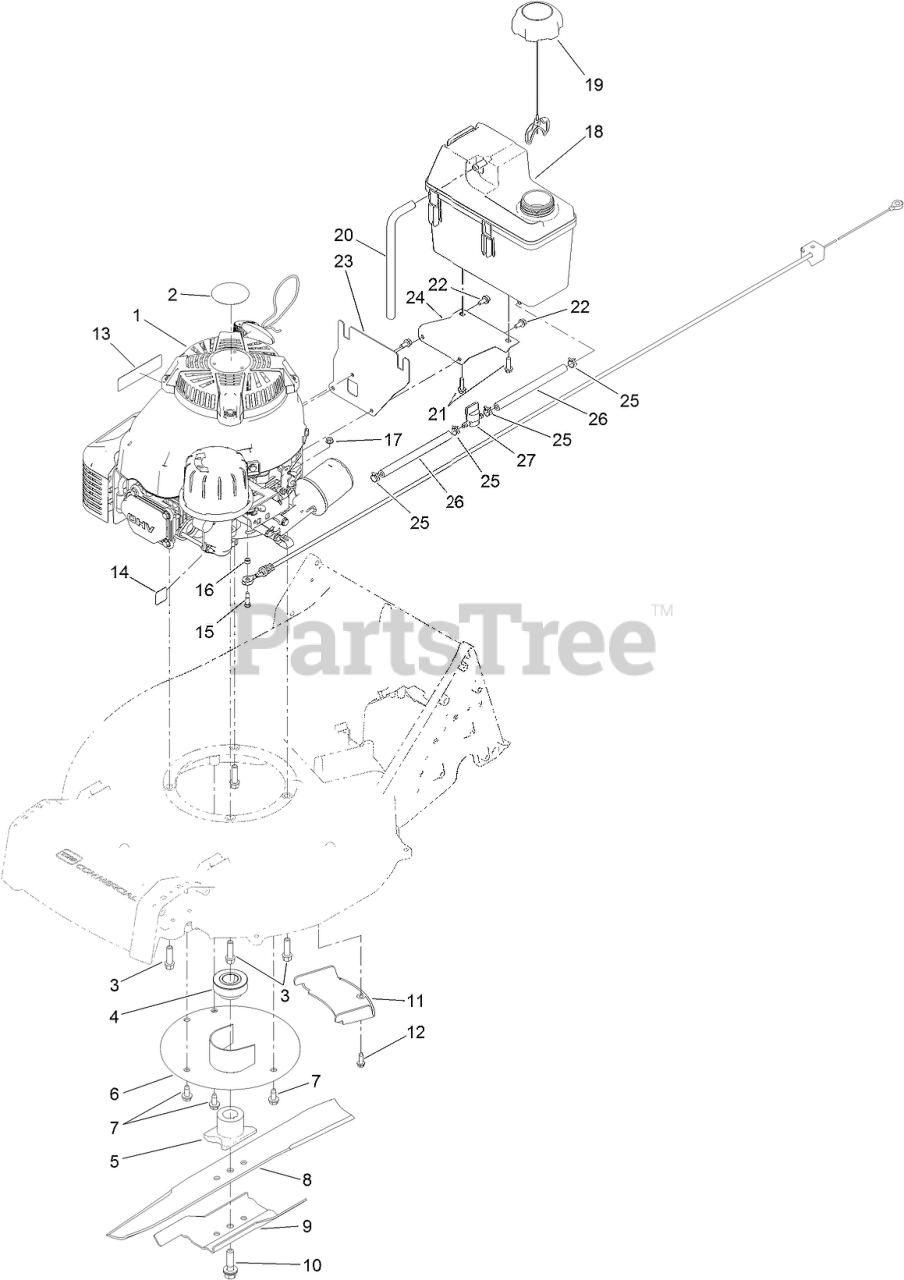

ENGINE, FUEL-TANK AND BLADE ASSEMBLY Parts Diagram

  • Title
1

Toro 121-1406

ENGINE-KAWASAKI, FJ180V

$1106.99

$

Usually ships in 3-6 days

0

2

$34.99

$

Usually ships in 3-6 days

0

3

Toro 95-1727

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

4

Toro 125-8396

PULLEY-DRIVER

$47.99

$

Usually ships in 3-6 days

0

5

Toro 125-1004

DRIVER-BLADE

$34.99

$

In Stock, Qty 10

0

6

Toro 125-8370

PROTECTOR-CRANKSHAFT

$104.99

$

Usually ships in 3-6 days

0

7

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

8

Toro 108-3762-03

BLADE-RECYCLING
(Superseded to 108-3762-S)

$29.99

$

In Stock, Qty 9

0

9

Toro 125-1069-03

ACCELERATOR-BLADE

$17.99

$

In Stock, Qty 15

0

10

Toro 125-2466

BOLT-BLADE

$3.49

$

In Stock, Qty 20+

0

11

Toro 125-1024

COVER-BELT

$11.99

$

Usually ships in 3-6 days

0

12

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

13

Toro 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!

0

14

Toro 125-8403

DECAL-PRIMER

$3.49

$

Usually ships in 3-6 days

0

15

Toro 125-8434

SCREW-SHOULDER

$5.49

$

In Stock, only 1 left!

0

16

Toro 130-9691

SPACER

$2.99

$

Usually ships in 3-6 days

0

17

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 17

0

18

Toro 114-0280

TANK-FUEL

$144.99

$

In Stock, only 4 left!

0

19

Toro 115-7788

CAP-FUEL
(Superseded to 137-4127)

$23.99

$

In Stock, only 2 left!

0

20

Toro 115-0962

HOSE-VENT, CANISTER

$8.99

$

In Stock, only 2 left!

0

21

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

22

Toro 125-8383

SCREW-HWH

$2.99

$

Usually ships in 3-6 days

0

23

Toro 125-8381-03

BRACKET-TANK, MOUNTING

$13.99

$

In Stock, only 3 left!

0

24

Toro 125-8382-03

BRACKET-TANK, SUPPORT

$11.99

$

Usually ships in 3-6 days

0

25

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

26

Toro 107-0588

HOSE-FUEL

$5.99

$

In Stock, only 4 left!

0

27

Toro 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0
