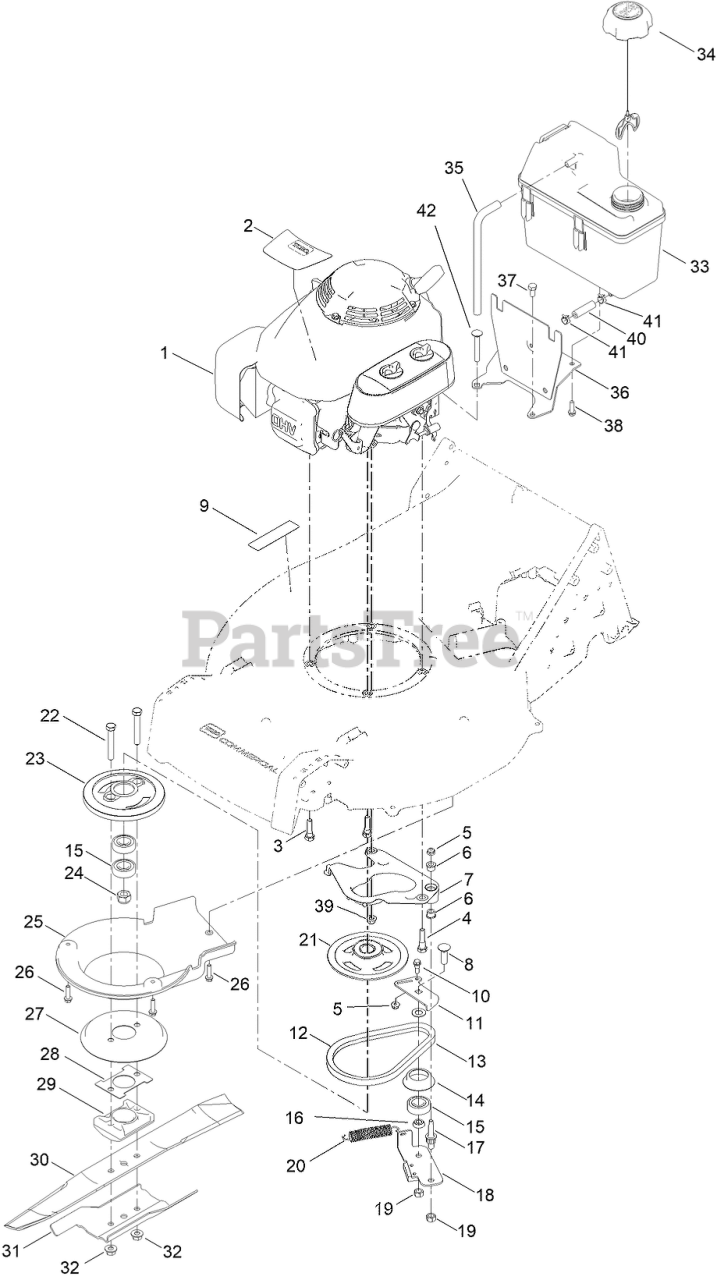

22296 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 410200000 - 412799999) Engine and Blade Assembly Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

Engine and Blade Assembly Parts Diagram

  • Title

1

ENGINE-HONDA, GXV160 GAS

Note: Not serviced separately

$

$

Not available

1

ENGINE-HONDA, GXV160 GAS

Note: This is a Honda part. Please use the Honda Engines catalog.

$

$

Not available

2

Toro 125-8405

DECAL-ENGINE, HONDA

$7.99

$

In Stock, only 2 left!

0

3

Toro 125-1074

SCREW-HHSH

$3.49

$

In Stock, Qty 9

0

4

Toro 103-2678

SCREW-SHOULDER

$6.49

$

In Stock, Qty 9

0

5

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

6

Toro 130-2377

BUSHING-FLANGE

$1.99

$

In Stock, Qty 20+

0

7

Toro 130-2375

PLATE-ANCHOR

$47.99

$

In Stock, Qty 8

0

8

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 15

0

9

Toro 133-8062

DECAL-ARRESTOR, SPARK

$2.99

$

Usually ships in 3-6 days

0

10

Toro 42-3560

BOLT-SHOULDER

$5.99

$

In Stock, only 3 left!

0

11

Toro 125-8446

PLATE-GUIDE, BBC

$9.49

$

In Stock, only 1 left!

0

12

Toro 110-1790

BELT
(Superseded to 110-1790-SL)

$35.99

$

Usually ships in 3-6 days

0

13

Toro 605256

SPACER

$2.99

$

In Stock, Qty 20+

0

14

Toro 138-3217

RETAINER-BELT

$3.49

$

In Stock, Qty 11

0

15

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 18

0

16

Toro 107-0758

SPACER-BEARING

$3.49

$

In Stock, Qty 6

0

17

Toro 130-9699

BOLT-SHOULDER

$7.49

$

In Stock, Qty 10

0

18

Toro 125-1063

PLATE-BRAKE

$23.99

$

In Stock, Qty 9

0

19

Toro 125-5069

NUT-HEX
(Superseded to 603773)

$2.99

$

In Stock, Qty 8

0

20

Toro 108-3792

SPRING-TENSION, BRAKE

$11.99

$

In Stock, Qty 11

0

21

Toro 117-5970

PULLEY

$41.99

$

Usually ships in 3-6 days

0

22

Toro 3211-42

SCREW-HH

$5.49

$

Usually ships in 3-6 days

0

23

Toro 126-8108

DRUM

$55.99

$

Usually ships in 3-6 days

0

24

Toro 108-9342

NUT-HEX

$5.49

$

In Stock, only 2 left!

0

25

Toro 125-1006

COVER

$18.99

$

In Stock, only 2 left!

0

26

Toro 32144-86

SCREW-HWHTF

$1.49

$

In Stock, Qty 20+

0

27

Toro 138-3225

DISK

$12.99

$

In Stock, only 3 left!

0

28

Toro 130-6404-01

SPACER-DRIVER, BLADE

$11.99

$

Usually ships in 3-6 days

0

29

Toro 107-7487

SUPPORT-BLADE

$22.99

$

In Stock, only 1 left!

0

30

Toro 133-8183-03

BLADE-21IN, RECYCLING

$22.99

$

In Stock, Qty 17

0

31

Toro 125-1069-03

ACCELERATOR-BLADE

$17.99

$

In Stock, Qty 15

0

32

Toro 127-6852

NUT-FLANGE, LOCK

$2.99

$

In Stock, Qty 20+

0

33

Toro 114-0280

TANK-FUEL

$144.99

$

In Stock, only 4 left!

0

34

Toro 137-4127

CAP-FUEL

$23.99

$

In Stock, only 2 left!

0

35

Toro 115-0962

HOSE-VENT, CANISTER

$8.99

$

In Stock, only 2 left!

0

36

Toro 119-7837-03

MOUNT-TANK

$72.99

$

Usually ships in 3-6 days

0

37

Toro 3210-2

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

38

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

39

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

40

Toro 119-7856

HOSE-FUEL

$5.49

$

Usually ships in 3-6 days

0

41

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

42

Toro 3230-7

BOLT-CARR

$0.99

$

In Stock, Qty 10

0
