22296 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 402020000 - 404329999) HANDLE AND CONTROL ASSEMBLY Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

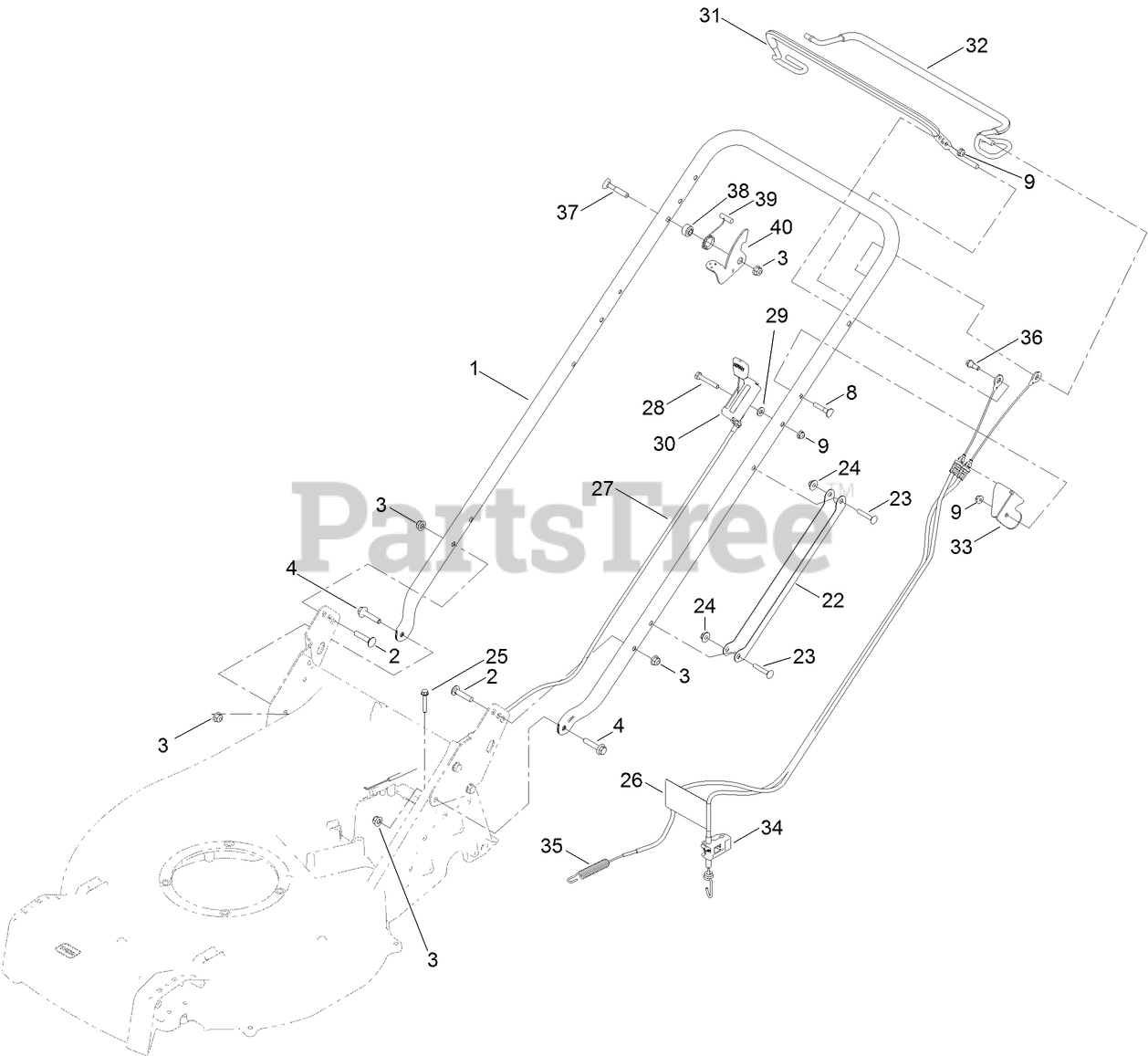

HANDLE AND CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 137-4817-03

HANDLE

$111.99

$

Usually ships in 3-6 days

0

2

Toro 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 13

0

3

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 115-1794

SCREW-HHF

$2.49

$

In Stock, Qty 11

0

8

Toro 117-7737

SCREW-HANDLE

$2.49

$

In Stock, Qty 11

0

9

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

22

Toro 127-6897-03

GUARD-CABLE, HANDLE

$9.49

$

Usually ships in 3-6 days

0

23

Toro 108-0988

SCREW-CARR

$0.99

$

In Stock, only 3 left!

0

24

Toro 114-3778

NUT-HF

$1.49

$

In Stock, Qty 19

0

25

Toro 94-2691

SCREW-HWH

$1.49

$

Usually ships in 3-6 days

0

26

Toro 130-6722

DECAL

$4.99

$

Usually ships in 3-6 days

0

27

Toro 125-8374

CONTROL-THROTTLE/CHOKE

$56.99

$

In Stock, Qty 14

0

28

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Toro 130-9656

DECAL-THROTTLE, CHOKE

$2.99

$

In Stock, Qty 8

0

31

Toro 137-4810

BAIL-BBC, COATED

$39.99

$

In Stock, Qty 18

0

32

Toro 137-4811

BAIL-TRACTION, COATED

$39.99

$

In Stock, Qty 7

0

33

Toro 137-4766-03

BRACKET-CABLE

$28.99

$

Usually ships in 3-6 days

0

34

Toro 137-4768

CABLE-TRACTION

$47.99

$

In Stock, Qty 15

0

35

Toro 137-4769

CABLE-BBC

$34.99

$

In Stock, Qty 20+

0

36

Toro 42-3560

BOLT-SHOULDER

$5.99

$

In Stock, Qty 17

0

37

Toro 112-8876

SCREW-HANDLE
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 20+

0

38

Toro 116-2690

BUSHING-STEPPED

$13.99

$

In Stock, Qty 5

0

39

Toro 109-9318

SPRING-LEVER, BBC

$6.49

$

In Stock, Qty 8

0

40

Toro 116-2998

LEVER-BBC

$18.99

$

In Stock, only 1 left!

0
