22296 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 315000001 - 315999999) (2015) HANDLE AND CONTROL ASSEMBLY Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

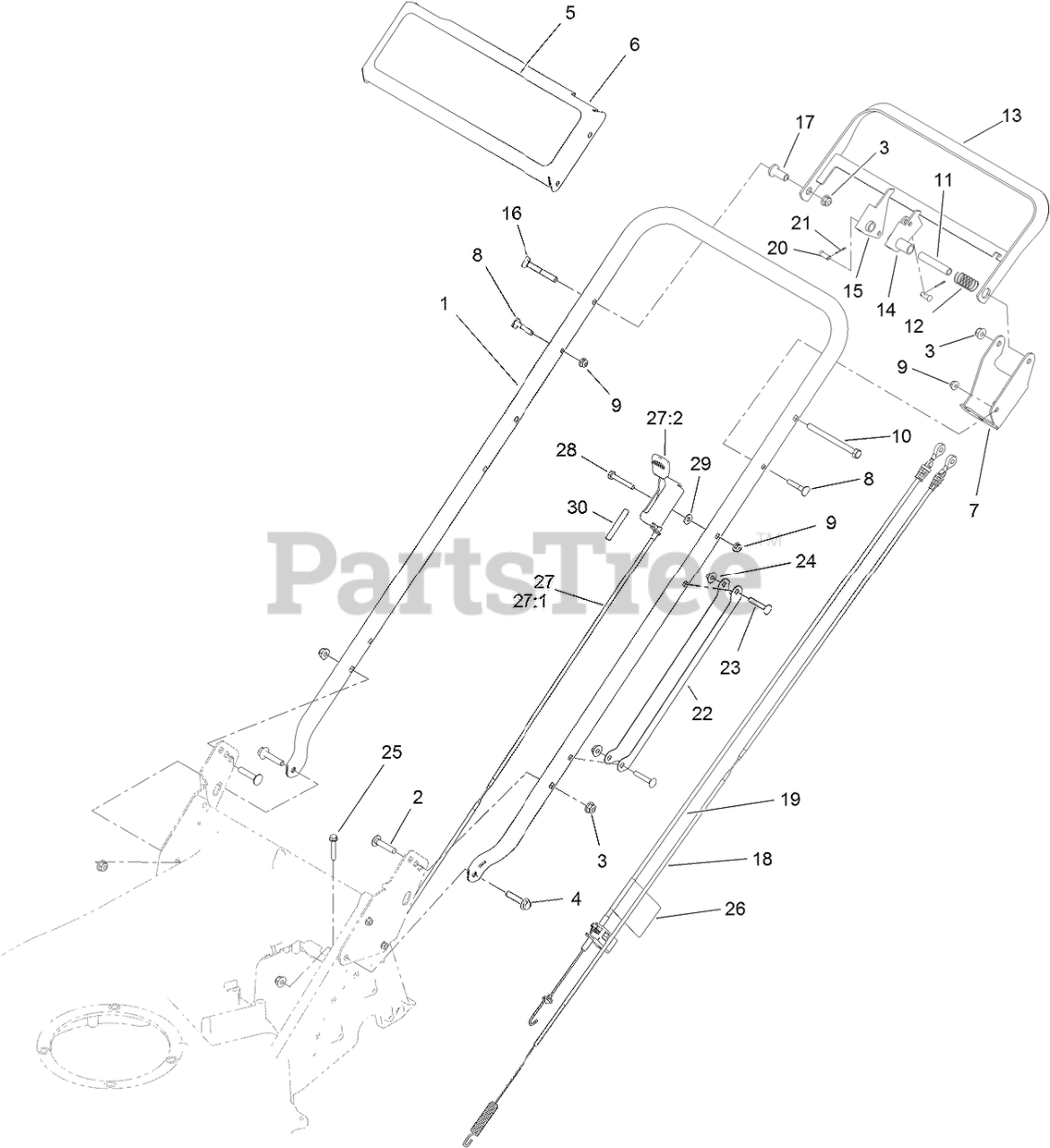

HANDLE AND CONTROL ASSEMBLY Parts Diagram

  • Title
1

Toro 125-1016-03

HANDLE
(Superseded to 136-5861-03)

$111.99

$

In Stock, only 2 left!

0

2

Toro 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 13

0

3

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 115-1794

SCREW-HHF

$2.49

$

In Stock, Qty 11

0

5

Toro 125-8421

DECAL-TORO, COMMERCIAL

$14.99

$

In Stock, only 4 left!

0

6

Toro 125-8350-01

PANEL-CONTROL

$37.99

$

Usually ships in 3-6 days

0

7

Toro 125-8358-03

BRACKET-CONTROL

$26.99

$

Usually ships in 3-6 days

0

8

Toro 117-7737

SCREW-HANDLE

$2.49

$

In Stock, Qty 11

0

9

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Toro 322-19

SCREW-HH

$6.49

$

In Stock, only 1 left!

0

11

Toro 125-8424

SPACER

$8.99

$

Usually ships in 3-6 days

0

12

Toro 85-6750

SPRING-CONTROL

$10.99

$

Usually ships in 3-6 days

0

13

Toro 125-8357-03

BAR-CONTROL

$62.99

$

Usually ships in 3-6 days

0

14

Toro 125-8352

LEVER-CONTROL

$37.99

$

Usually ships in 3-6 days

0

15

Toro 125-8354

LEVER-TRACTION

$37.99

$

Usually ships in 3-6 days

0

16

Toro 125-8408

SCREW-HANDLE

$2.49

$

Usually ships in 3-6 days

0

17

Toro 125-8359

SPACER-FLANGE

$4.99

$

Usually ships in 3-6 days

0

18

Toro 130-9702

CABLE-BBC

$38.99

$

In Stock, Qty 14

0

19

Toro 130-9703

CABLE-TRACTION, BBC

$56.99

$

In Stock, Qty 6

0

20

Toro 84-9040

PIN-CABLE

$12.99

$

Usually ships in 3-6 days

0

21

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 16

0

22

Toro 127-6897-03

GUARD-CABLE, HANDLE

$9.49

$

Usually ships in 3-6 days

0

23

Toro 108-0988

SCREW-CARR

$0.99

$

In Stock, only 3 left!

0

24

Toro 114-3778

NUT-HEX FLG

$1.49

$

In Stock, Qty 19

0

25

Toro 94-2691

SCREW-HWH

$1.49

$

Usually ships in 3-6 days

0

26

Toro 130-6722

DECAL-ADJUST, SELF PROPEL DRIVE

$4.99

$

Usually ships in 3-6 days

0

27

Toro 125-8374

CONTROL-THROTTLE/CHOKE

$56.99

$

In Stock, Qty 14

0

27:1

Toro 130-6400

CABLE-THROTTLE

$35.99

$

In Stock, Qty 13

0

27:2

Toro 130-6401

CONTROL-THROTTLE

$51.99

$

Usually ships in 3-6 days

0

28

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Toro 130-9656

DECAL-THROTTLE, CHOKE

$2.99

$

In Stock, Qty 8

0
