22296 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 314000001 - 314999999) (2014) FUEL TANK ASSEMBLY Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

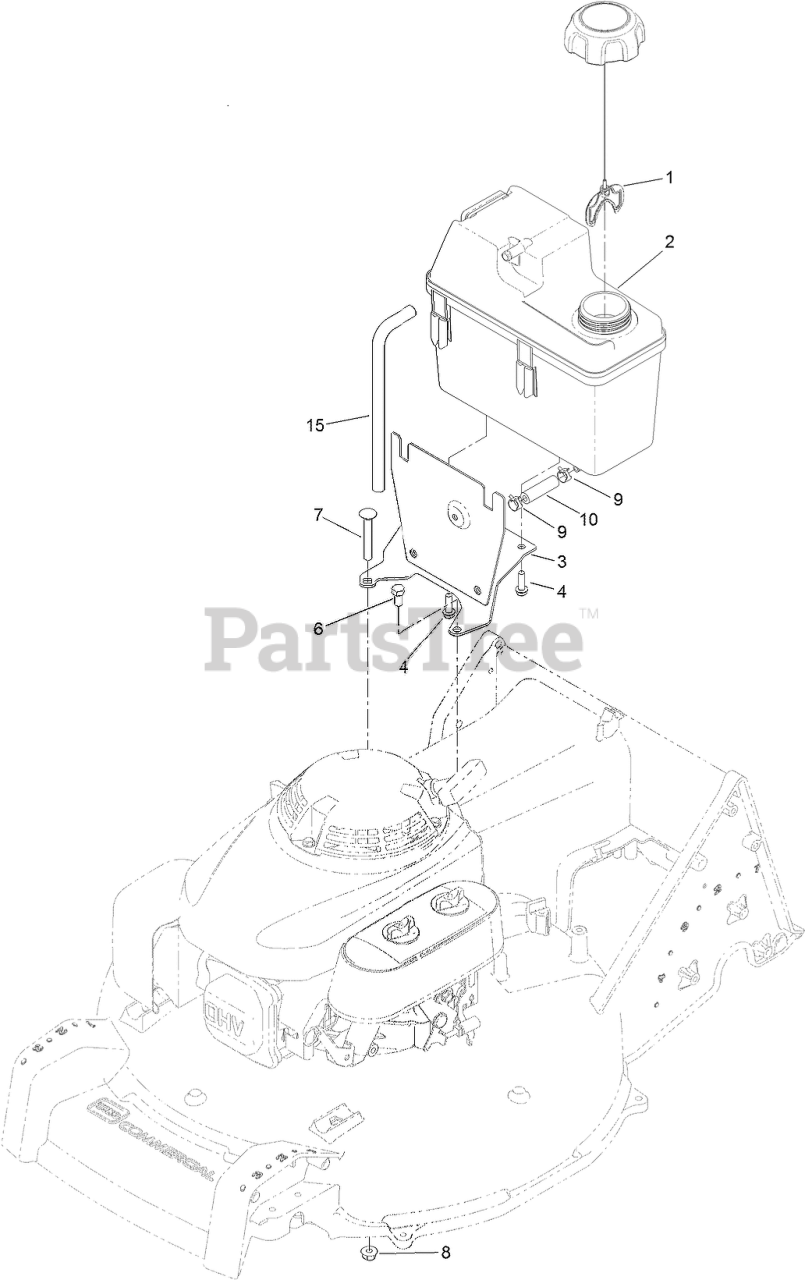

FUEL TANK ASSEMBLY Parts Diagram

  • Title
1

Toro 109-6776

CAP-RATCHET, TETHERED
(Superseded to 137-4127)

$23.99

$

In Stock, only 2 left!

0

2

Toro 114-0280

TANK-FUEL

$144.99

$

In Stock, only 4 left!

0

3

Toro 119-7837-03

MOUNT-TANK

$72.99

$

Usually ships in 3-6 days

0

4

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

6

Toro 3210-2

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

7

Toro 3230-7

BOLT-CARR

$0.99

$

In Stock, Qty 10

0

8

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

9

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

10

Toro 119-7856

HOSE-FUEL

$5.49

$

Usually ships in 3-6 days

0

15

Toro 115-0962

HOSE-VENT, CANISTER

$8.99

$

In Stock, only 2 left!

0
