22293 - Toro 53cm Heavy-Duty Recycler Walk-Behind Mower (SN: 314000001 - 314999999) (2014) HOUSING ASSEMBLY Parts Diagram

53cm Heavy-Duty Recycler Walk-Behind Mower

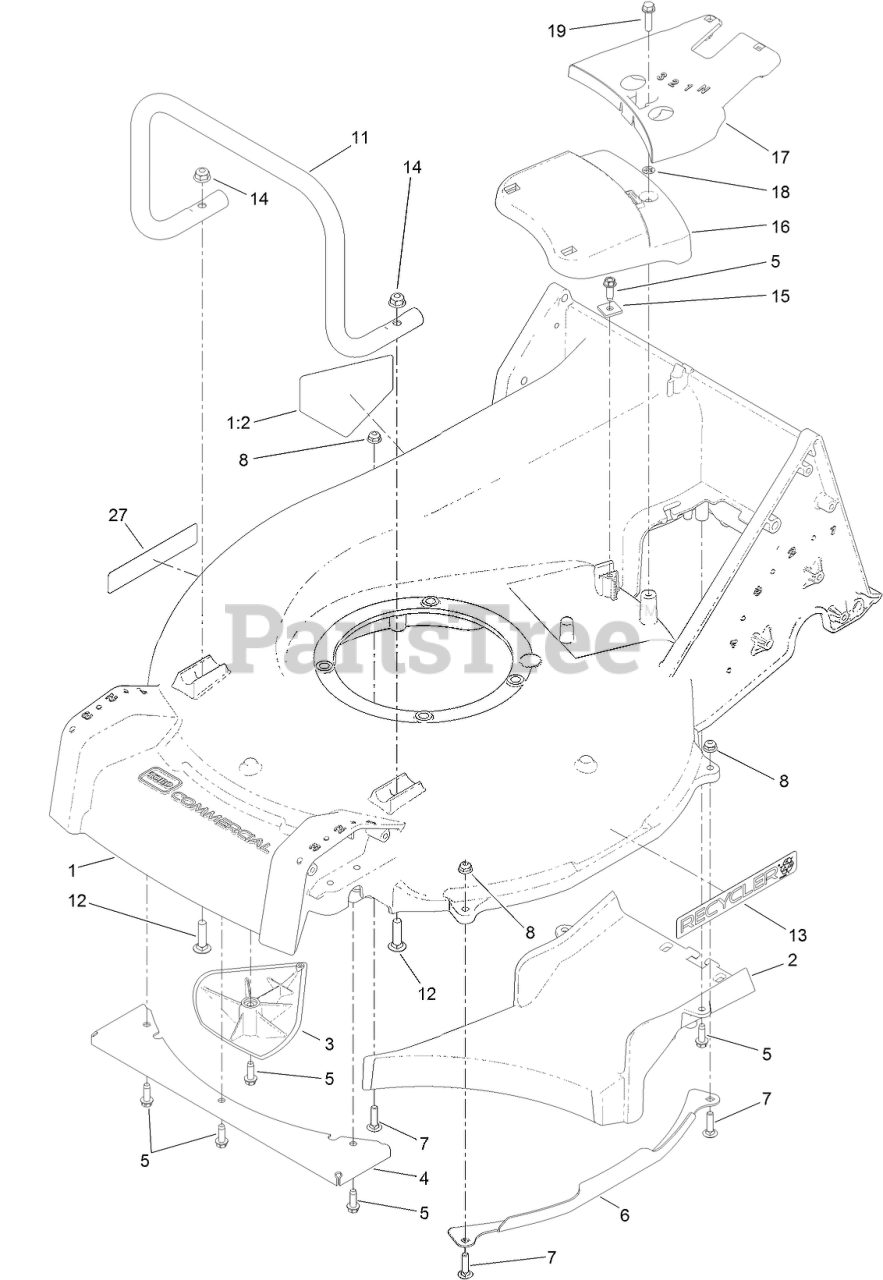

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 125-8401

HOUSING ASM

$

$

Currently unavailable

1:2

Toro 112-8760

DECAL-DANGER

$12.99

$

In Stock, only 3 left!

0

2

Toro 125-1002-01

FLOOR-CHUTE

$61.99

$

Usually ships in 3-6 days

0

3

Toro 125-5041

KICKER

$8.49

$

Usually ships in 3-6 days

0

4

Toro 125-8435-03

GUARD-TOE, FRONT

$24.99

$

Usually ships in 3-6 days

0

5

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

6

Toro 125-1047-03

GUARD-SIDE, DECK

$12.99

$

In Stock, Qty 9

0

7

Toro 3229-2

SCREW-CARR

$3.49

$

In Stock, only 4 left!

0

8

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

11

Toro 125-1003-03

GUARD-ENGINE
(Superseded to 140-3880-03)

$41.99

$

In Stock, Qty 6

0

12

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

13

Toro 119-2368

DECAL-RECYCLER

$6.49

$

In Stock, only 2 left!

0

14

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 125-8387

CLAMP-CABLE

$2.49

$

Usually ships in 3-6 days

0

16

Toro 125-5038

COVER-BELT, FRONT

$12.99

$

In Stock, Qty 5

0

17

Toro 125-5039

COVER-BELT, REAR

$14.99

$

In Stock, Qty 5

0

18

Toro 106-8737

NUT-RETAINER
(Superseded to 32115-15)

$1.49

$

In Stock, Qty 20+

0

19

Toro 32144-86

SCREW-HWHTF

$1.49

$

In Stock, Qty 20+

0

27

Toro 125-8420

DECAL

$4.49

$

Usually ships in 3-6 days

0
