22291 - Toro 53cm Heavy-Duty Recycler Walk-Behind Mower (SN: 405400000 - 407869999) Housing Assembly Parts Diagram

53cm Heavy-Duty Recycler Walk-Behind Mower

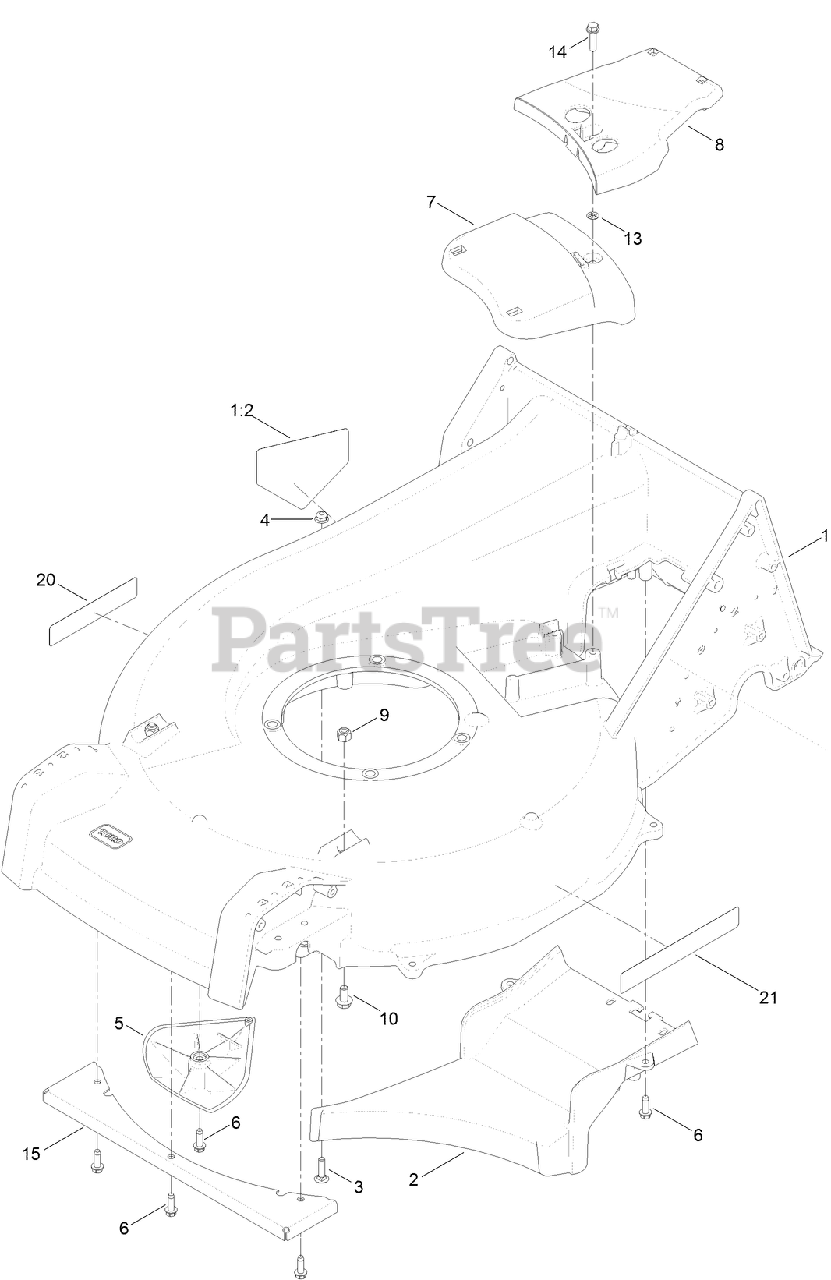

Housing Assembly Parts Diagram

  • Title
1

Toro 136-5897

HOUSING ASM

$311.99

$

Usually ships in 3-6 days

0

1:2

Toro 112-8760

DECAL-DANGER

$11.99

$

In Stock, Qty 5

0

2

Toro 125-1002-01

FLOOR-CHUTE

$58.99

$

Usually ships in 3-6 days

0

3

Toro 3229-2

SCREW-CARR

$3.49

$

Usually ships in 3-6 days

0

4

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

5

Toro 125-5041

KICKER

$7.99

$

Usually ships in 3-6 days

0

6

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

7

Toro 125-5038

COVER-BELT, FRONT

$11.99

$

In Stock, only 1 left!

0

8

Toro 125-8380

COVER-BELT, REAR

$11.99

$

Usually ships in 3-6 days

0

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 3234-7

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

13

Toro 106-8737

NUT-RETAINER
(Superseded to 32115-15)

$1.49

$

In Stock, Qty 20+

0

14

Toro 32144-86

SCREW-HWHTF

$1.49

$

In Stock, Qty 20+

0

15

Toro 125-8435-03

GUARD-TOE, FRONT

$23.99

$

Usually ships in 3-6 days

0

20

$3.99

$

Usually ships in 3-6 days

0

21

Toro 119-2368

DECAL-RECYCLER

$6.49

$

In Stock, only 2 left!

0
