22291 - Toro 53cm Heavy-Duty Recycler Walk-Behind Mower (SN: 315000001 - 315999999) (2015) ENGINE ASSEMBLY Parts Diagram

53cm Heavy-Duty Recycler Walk-Behind Mower

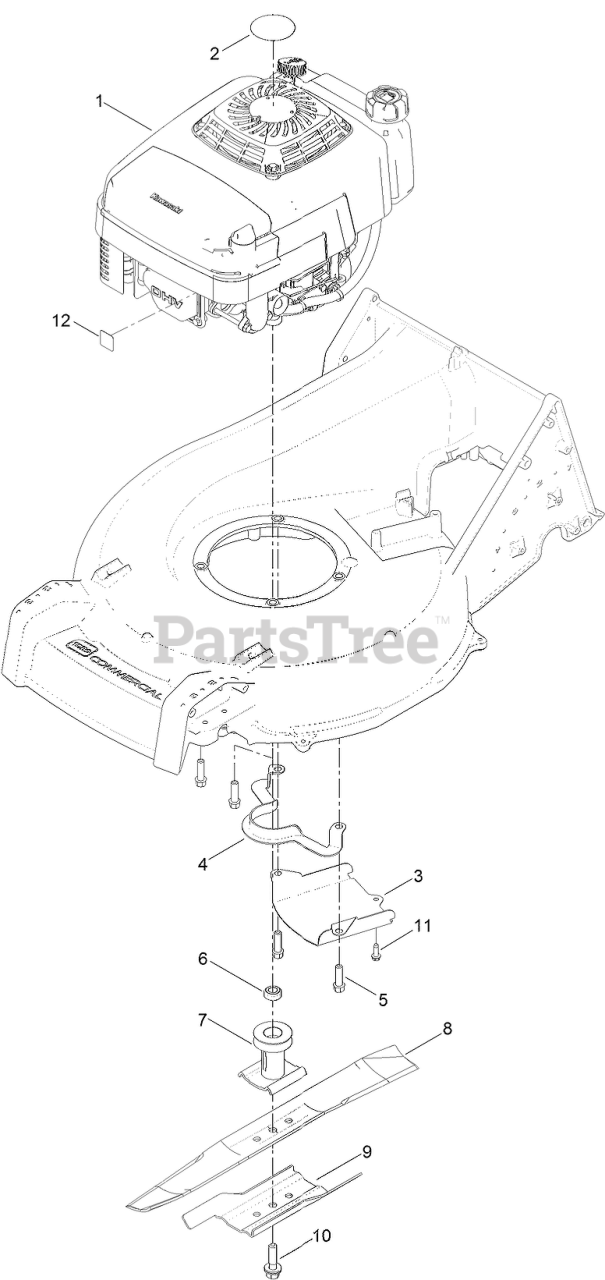

ENGINE ASSEMBLY Parts Diagram

  • Title

1

ENGINE-KAWASAKI, FJ180V

Note: Not serviced separately

$

$

Not available

1

ENGINE-KAWASAKI, FJ180V

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

2

Toro 110-0520

DECAL

$30.99

$

Usually ships in 3-6 days

0

3

Toro 125-1005-03

SHIELD-GRASS

$20.99

$

Usually ships in 3-6 days

0

4

Toro 108-8110-03

GUIDE-BELT

$15.99

$

In Stock, only 1 left!

0

5

Toro 95-1727

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

6

Toro 125-8432

SPACER-DRIVER, BLADE

$2.99

$

Usually ships in 3-6 days

0

7

Toro 106-3987

DRIVER-BLADE

$30.99

$

In Stock, only 2 left!

0

8

Toro 108-3762-03

BLADE-RECYCLING
(Superseded to 108-3762-S)

$29.99

$

In Stock, Qty 9

0

9

Toro 125-1069-03

ACCELERATOR-BLADE

$17.99

$

In Stock, Qty 17

0

10

Toro 125-2466

BOLT-BLADE

$3.49

$

In Stock, Qty 20+

0

11

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

12

Toro 125-8403

DECAL-PRIMER

$2.99

$

Usually ships in 3-6 days

0
