22290 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 314000001 - 314999999) (2014) TRANSMISSION ASSEMBLY Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

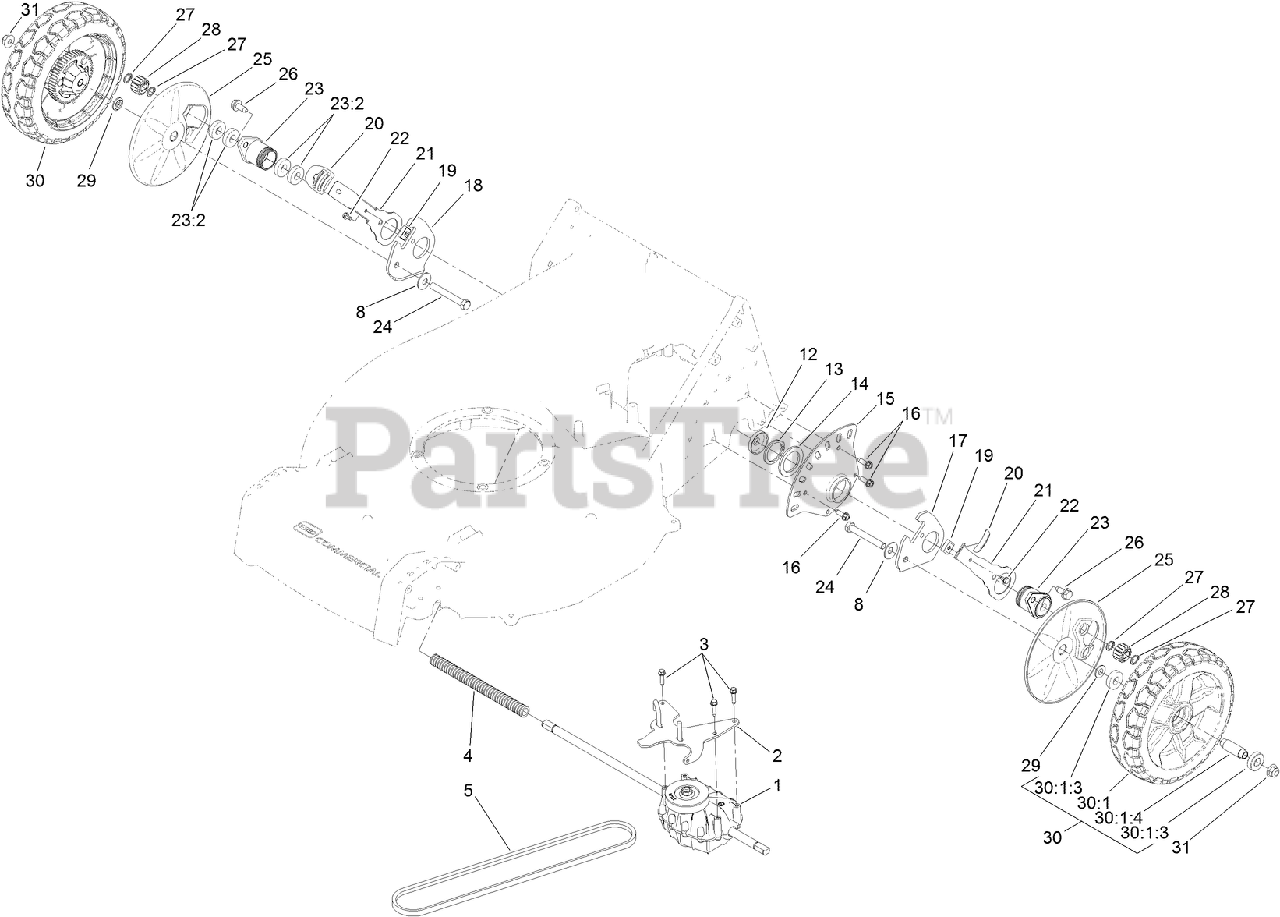

TRANSMISSION ASSEMBLY Parts Diagram

  • Title
1

Toro 125-1020

TRANSMISSION

$232.99

$

Usually ships in 3-6 days

0

2

Toro 125-8430-03

GUIDE-BELT

$34.99

$

Usually ships in 3-6 days

0

3

Toro 27-0220

SCREW-SPECIAL

$7.99

$

In Stock, only 4 left!

0

4

Toro 117-5260

Cover-Shaft, Drive

$2.99

$

In Stock, only 2 left!

0

5

Toro 125-8395

BELT-V

$18.99

$

In Stock, only 2 left!

0

8

Toro 3290-461

WASHER-SPRING

$5.49

$

In Stock, only 2 left!

0

12

Toro 127-6848

COVER-BEARING

$3.49

$

In Stock, Qty 20+

0

13

Toro 32151-10

RING-RETAINING

$1.49

$

In Stock, only 4 left!

0

14

Toro 98-1452

Washer-Thrust

$1.49

$

In Stock, Qty 20+

0

15

Toro 121-1447

PLATE-HOC, REAR
(Superseded to 131-5305)

$21.99

$

In Stock, Qty 5

0

16

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

17

Toro 121-1445

ARM-PIVOT, REAR LH
(Superseded to 131-5305)

$21.99

$

In Stock, Qty 5

0

18

Toro 121-1446

ARM-PIVOT, REAR RH
(Superseded to 131-5305)

$21.99

$

In Stock, Qty 5

0

19

Toro 121-1432

KEY-ARM, SPRING
(Superseded to 131-5377)

$1.99

$

In Stock, Qty 20+

0

20

Toro 125-1093

KNOB-LEVER, HOC

$4.99

$

In Stock, Qty 15

0

21

Toro 121-1448

ARM-SPRING, REAR
(Superseded to 121-1448-03)

$10.99

$

In Stock, Qty 9

0

22

Toro 104-2065

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

23

Toro 121-1424

RETAINER ASM
(Superseded to 136-5894)

$45.99

$

In Stock, only 2 left!

0

23:2

Toro 52-2450

BEARING-WHEEL

$18.99

$

In Stock, Qty 20+

0

24

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 15

0

25

Toro 125-1082

COVER-WHEEL

$5.99

$

In Stock, Qty 20+

0

26

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

27

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

28

Toro 110-9417

GEAR-PINION, 15T
(Superseded to 131-5399)

$5.49

$

In Stock, Qty 20+

0

29

Toro 74-1671

SPACER-COVER, WHEEL

$1.99

$

In Stock, Qty 12

0

30

Toro 125-1081

WHEEL ASM
(Superseded to 136-5850)

$77.99

$

In Stock, Qty 5

0

30:1

WHEEL

Note: Not serviced separately

$

$

Not available

30:1:3

Toro 52-2450

BEARING-WHEEL

$18.99

$

In Stock, Qty 20+

0

30:1:4

Toro 125-1077

SPACER

$6.99

$

In Stock, only 3 left!

0

31

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
