22289 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 402100000 - 404339999) REAR WHEEL AND HEIGHT-OF-CUT ASSEMBLY Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

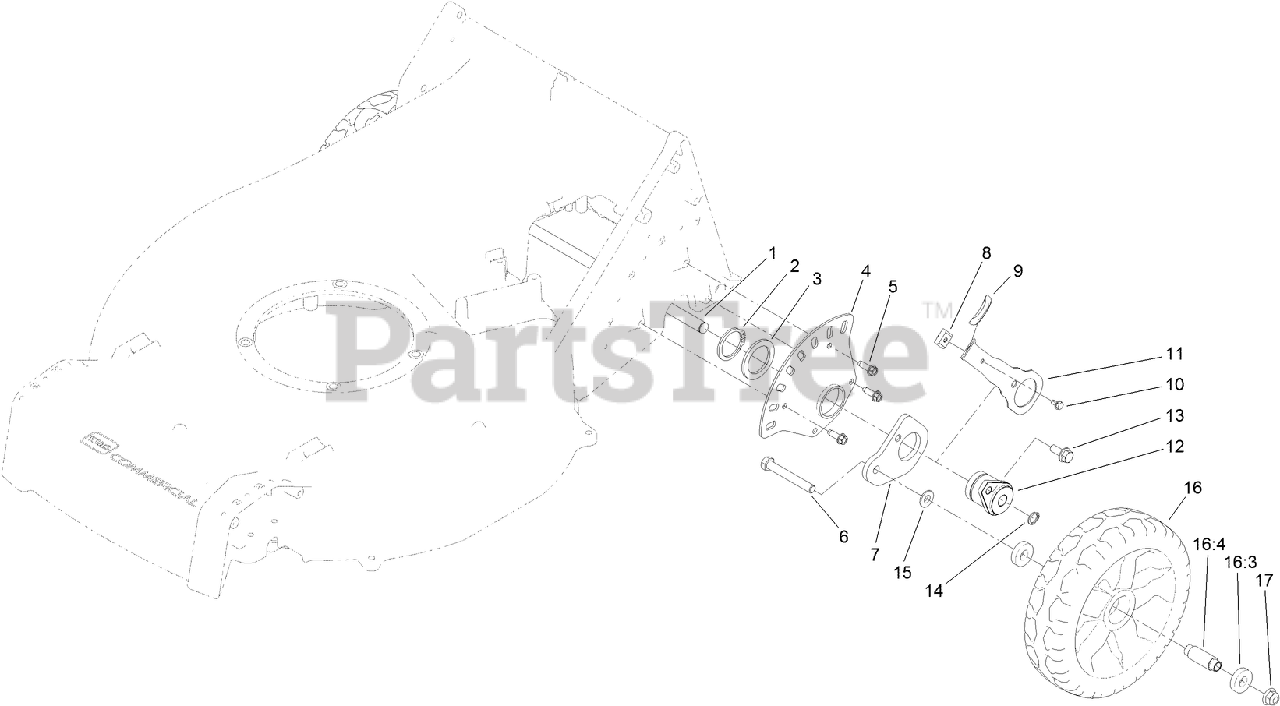

REAR WHEEL AND HEIGHT-OF-CUT ASSEMBLY Parts Diagram

  • Title

1

Toro 130-9727

SHAFT-REAR, HOC

$72.99

$

Usually ships in 3-6 days

0

2

Toro 32151-10

RING-RETAINING

$1.49

$

In Stock, only 4 left!

0

3

Toro 98-1452

Washer-Thrust

$1.49

$

In Stock, Qty 20+

0

4

Toro 130-6422

PLATE-HOC, REAR

$14.99

$

In Stock, Qty 13

0

5

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

6

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 15

0

7

Toro 133-2641

ARM-PIVOT, REAR

$11.99

$

In Stock, only 3 left!

0

8

Toro 131-5377

KEY-ARM, SPRING

$1.99

$

In Stock, Qty 20+

0

9

Toro 125-1093

KNOB-LEVER, HOC

$4.99

$

In Stock, Qty 15

0

10

Toro 104-2065

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

11

Toro 121-1448-03

ARM-SPRING, REAR

$10.99

$

In Stock, Qty 9

0

12

Toro 130-9726

RETAINER-REAR, HOC

$31.99

$

Usually ships in 3-6 days

0

13

Toro 133-2668

SCREW-HH

$1.99

$

In Stock, Qty 7

0

14

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

15

Toro 74-1671

SPACER-COVER, WHEEL

$1.99

$

In Stock, Qty 13

0

16

Toro 125-1080

WHEEL
(Superseded to 133-2639)

$62.99

$

In Stock, only 1 left!

0

16:3

Toro 133-2603

BEARING-BALL

$26.99

$

In Stock, Qty 20+

0

16:4

Toro 125-1077

SPACER

$6.99

$

In Stock, only 3 left!

0

17

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
