22287 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 409722975 - 409999999) Handle and Control Assembly Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

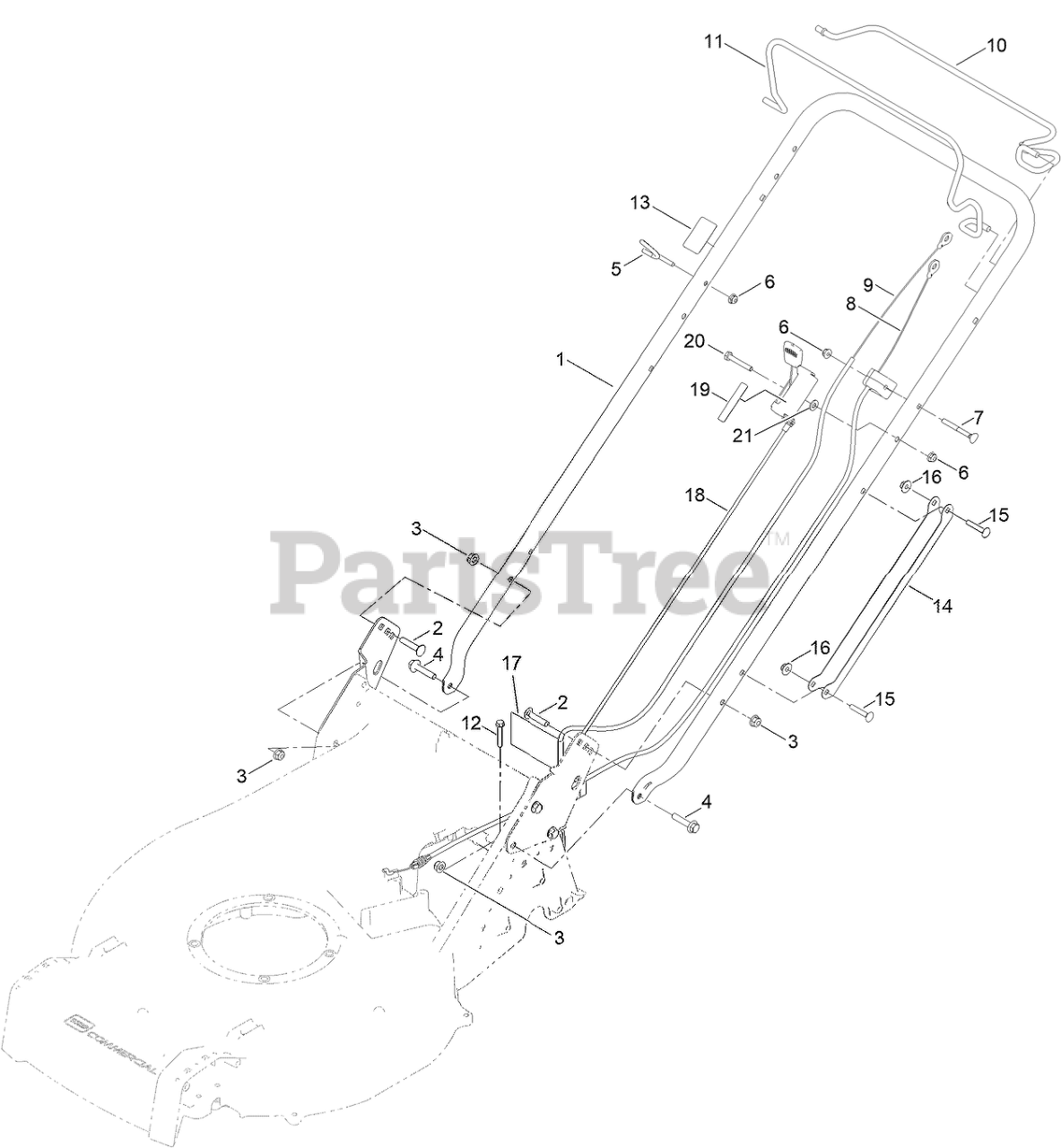

Handle and Control Assembly Parts Diagram

  • Title

1

Toro 137-4817-03

HANDLE

$111.99

$

Usually ships in 3-6 days

0

2

Toro 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 6

0

3

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

4

Toro 115-1794

SCREW-HHF

$1.99

$

In Stock, Qty 11

0

5

Toro 114-2775

GUIDE-ROPE

$10.99

$

Usually ships in 3-6 days

0

6

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

7

Toro 92-2270

SCREW-HANDLE

$8.49

$

In Stock, only 2 left!

0

8

Toro 140-3884

CABLE-BRAKE, KOHLER

$44.99

$

In Stock, only 1 left!

0

9

Toro 125-8372

CABLE-TRACTION

$56.99

$

Usually ships in 3-6 days

0

10

Toro 125-8437-03

BAIL-TRACTION

$22.99

$

In Stock, only 2 left!

0

11

Toro 125-8436-03

BAIL-BRAKE

$27.99

$

Usually ships in 3-6 days

0

12

Toro 94-2691

SCREW-HWH

$1.49

$

Usually ships in 3-6 days

0

13

Toro 125-8404

DECAL-PRIMER

$

$

Currently unavailable

14

Toro 127-6897-03

GUARD-CABLE, HANDLE

$9.49

$

Usually ships in 3-6 days

0

15

Toro 108-0988

SCREW-CARR

$0.99

$

In Stock, only 3 left!

0

16

Toro 114-3778

NUT-HF

$1.49

$

In Stock, Qty 12

0

17

Toro 130-6722

DECAL

$4.99

$

Usually ships in 3-6 days

0

18

Toro 139-1821

CONTROL-THROTTLE

$50.99

$

In Stock, only 2 left!

0

19

Toro 125-8406

DECAL-THROTTLE, CHOKE

$5.49

$

In Stock, only 3 left!

0

20

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
