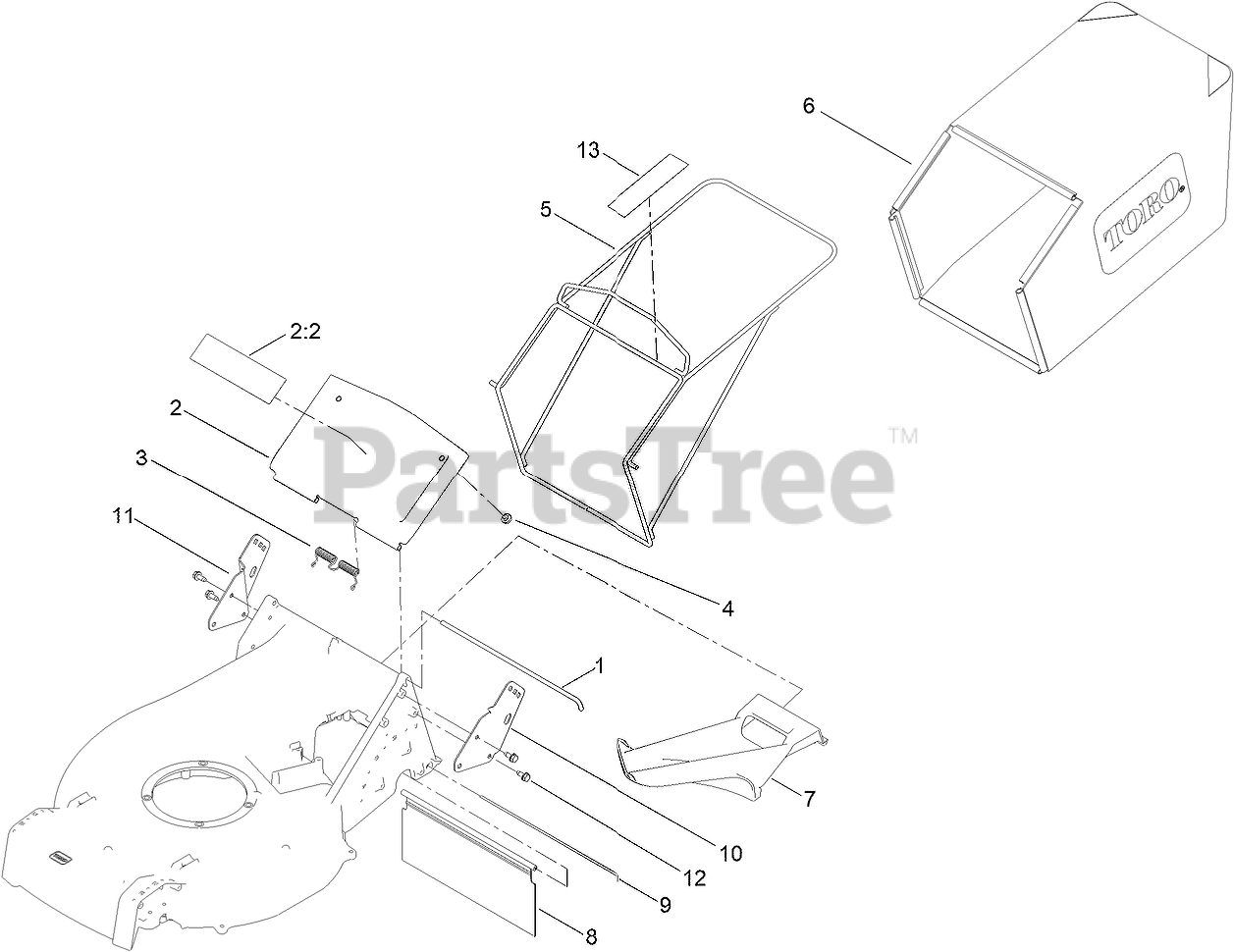

22282 - Toro 21" Heavy-Duty 60V Recycler Walk-Behind Mower (SN: 409172980 - 413999999) Mulch Plug and Grass Bag Assembly Parts Diagram

21" Heavy-Duty 60V Recycler Walk-Behind Mower

Mulch Plug and Grass Bag Assembly Parts Diagram

  • Title

1

Toro 125-1017

ROD-DOOR, BAG

$9.49

$

In Stock, only 2 left!

0

2

Toro 125-8402

BAG DOOR ASM

$47.99

$

In Stock, only 2 left!

0

2:2

Toro 116-7583

DECAL-WARNING

$17.99

$

In Stock, Qty 11

0

3

Toro 125-1019

SPRING-TORSION

$10.99

$

In Stock, only 2 left!

0

4

Toro 1-513658

BUMPER

$6.49

$

In Stock, Qty 9

0

5

Toro 121-1399-03

FRAME-BAG

$77.99

$

In Stock, Qty 14

0

6

Toro 125-1030

BAG-GRASS

$54.99

$

In Stock, Qty 20+

0

7

Toro 125-1008

PLUG-MULCH

$20.99

$

In Stock, Qty 20+

0

8

Toro 125-1007

SHIELD-TRAILING

$26.99

$

In Stock, only 2 left!

0

9

Toro 125-8413

ROD-SHIELD, TRAILING

$4.49

$

In Stock, only 2 left!

0

10

Toro 133-8193-03

BRACKET-MOUNT, HANDLE (LH)

$11.99

$

Usually ships in 3-6 days

0

11

Toro 133-8194-03

BRACKET-MOUNT, HANDLE (RH)

$11.99

$

Usually ships in 3-6 days

0

12

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

13

Toro 139-8986

Decal-Warning

$1.99

$

Usually ships in 3-6 days

0
