22282 - Toro 21" Heavy-Duty 60V Recycler Walk-Behind Mower (SN: 409172980 - 413999999) Motor Module Assembly No. 140-4120 Parts Diagram

21" Heavy-Duty 60V Recycler Walk-Behind Mower

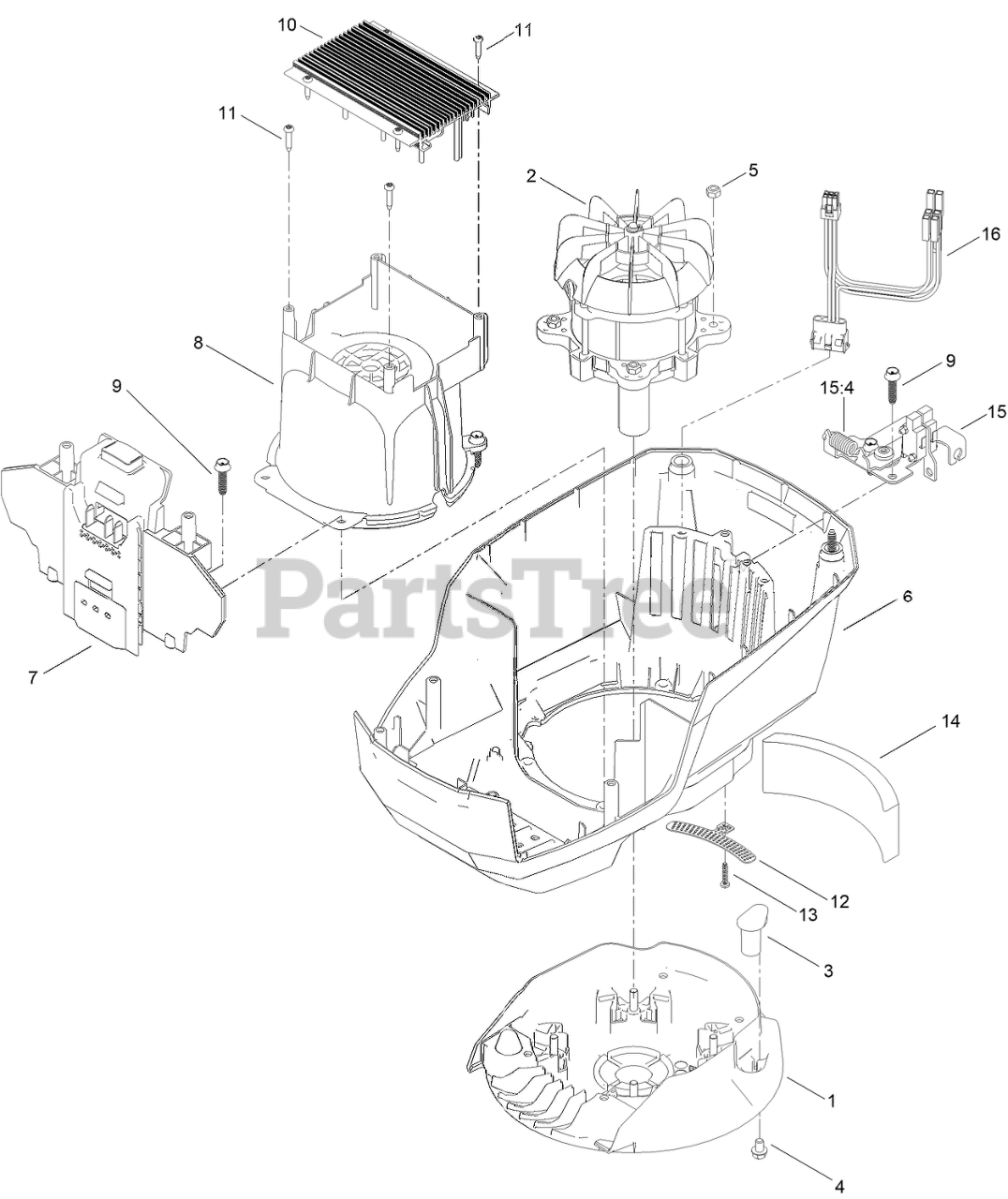

Motor Module Assembly No. 140-4120 Parts Diagram

  • Title
1

Toro 140-3886

SHROUD-UPPER

$37.99

$

Usually ships in 3-6 days

0

1

Toro 139-6628

BASE-MOUNT, MOTOR

$35.99

$

Usually ships in 3-6 days

0

2

Toro 114-5896

MAGNET

$6.49

$

In Stock, only 1 left!

0

2

Toro 140-4119

MOTOR-2KW

$247.99

$

Usually ships in 3-6 days

0

3

Toro 131-9732

INSERT-MOUNT, Motor

$13.99

$

Usually ships in 3-6 days

0

3

Toro 130-6658

SCREW-FLANGE, PLASTIC

$1.49

$

In Stock, Qty 20+

0

4

$1.49

$

In Stock, Qty 20+

0

4

$17.99

$

In Stock, only 1 left!

0

5

Toro 115-7373

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

5

Toro 139-6640

SPRING-LH

$1.49

$

Usually ships in 3-6 days

0

6

Toro 140-4118

SHROUD-LOWER

$39.99

$

Usually ships in 3-6 days

0

6

Toro 139-6641

SPRING-RH

$1.49

$

Usually ships in 3-6 days

0

7

Toro 95-4234

SCREW-PPH

$2.49

$

In Stock, Qty 5

0

7

Toro 139-6632

BATTERY RECIEVER ASM

$37.99

$

Usually ships in 3-6 days

0

8

Toro 139-6633

SHROUD-MOTOR

$26.99

$

Usually ships in 3-6 days

0

8

Toro 140-4126

DECAL-HOOD, TOP

$14.99

$

Usually ships in 0 days

0

9

Toro 140-4127

DECAL-HOOD, FRONT

$14.99

$

Usually ships in 0 days

0

9

Toro 130-6658

SCREW-FLANGE, PLASTIC

$1.49

$

In Stock, Qty 20+

0

10

Toro 140-4117

CONTROLLER-MOTOR [2 SPD]

$151.99

$

Usually ships in 3-6 days

0

11

$0.99

$

Usually ships in 3-6 days

0

12

Toro 139-6635

BRACKET-FOAM

$4.99

$

Usually ships in 3-6 days

0

13

Toro 138-3273

SCREW-PLASTIC, PPH

$1.49

$

Usually ships in 3-6 days

0

14

$3.49

$

Usually ships in 3-6 days

0

15

Toro 133-1918

BAIL SWITCH ASM

$50.99

$

Usually ships in 3-6 days

0

15:4

Toro 104-6478

SPRING-EXTENSION

$15.99

$

In Stock, only 3 left!

0

16

Toro 139-6637

HARNESS-WIRE

$21.99

$

Usually ships in 3-6 days

0
