22280 - Toro 53cm Heavy-Duty Recycler Walk-Behind Mower (SN: 400000000 - 405399999) Frame Assembly Parts Diagram

53cm Heavy-Duty Recycler Walk-Behind Mower

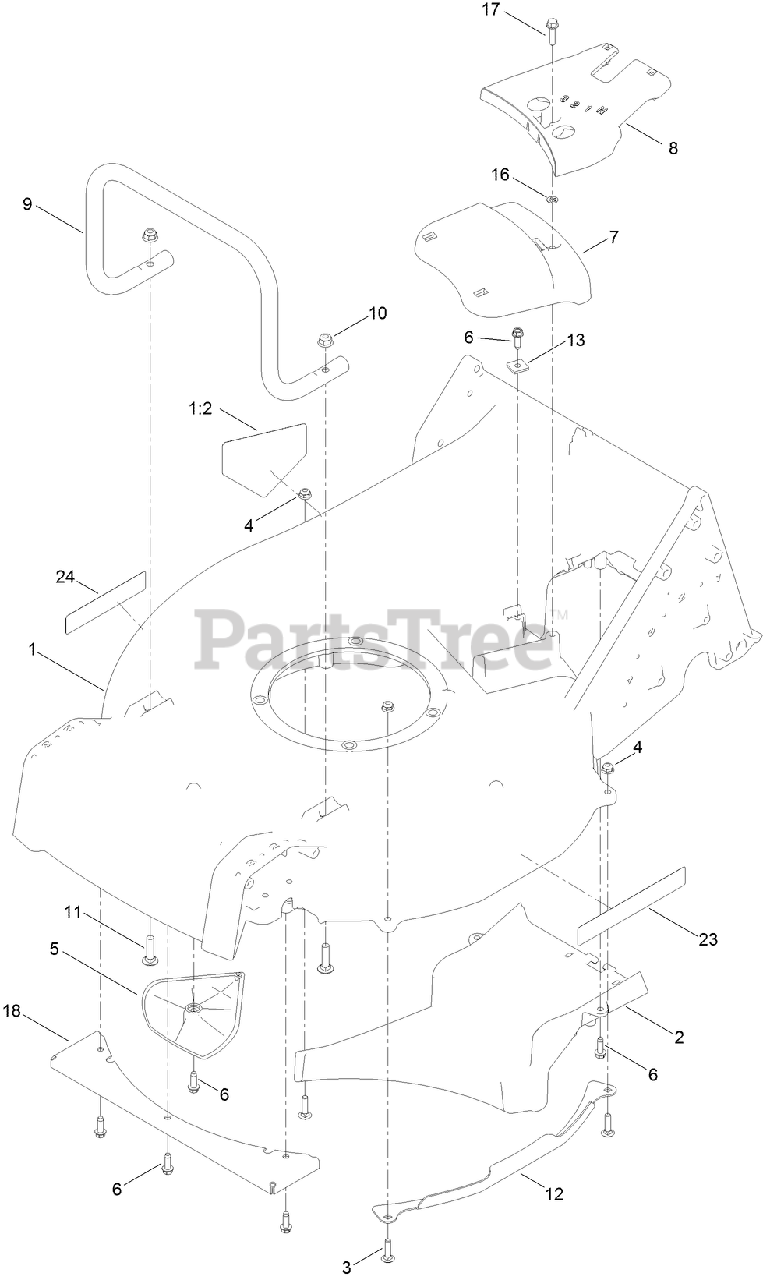

Frame Assembly Parts Diagram

  • Title

1

Toro 136-5897

HOUSING ASM

$311.99

$

Usually ships in 3-6 days

0

1:2

Toro 112-8760

DECAL-DANGER

$11.99

$

In Stock, Qty 5

0

2

Toro 125-1002-01

FLOOR-CHUTE

$58.99

$

Usually ships in 3-6 days

0

3

Toro 3229-2

SCREW-CARR

$3.49

$

Usually ships in 3-6 days

0

4

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

5

Toro 125-5041

KICKER

$7.99

$

Usually ships in 3-6 days

0

6

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

7

Toro 125-5038

COVER-BELT, FRONT

$11.99

$

In Stock, only 1 left!

0

8

Toro 125-5039

COVER-BELT, REAR

$13.99

$

In Stock, only 1 left!

0

9

Toro 125-1003-03

GUARD-ENGINE
(Superseded to 140-3880-03)

$38.99

$

In Stock, Qty 8

0

10

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

11

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

12

Toro 125-1047-03

GUARD-SIDE, DECK

$11.99

$

In Stock, only 2 left!

0

13

Toro 125-8387

CLAMP-CABLE

$2.49

$

In Stock, only 1 left!

0

16

Toro 106-8737

NUT-RETAINER
(Superseded to 32115-15)

$1.49

$

In Stock, Qty 20+

0

17

Toro 32144-86

SCREW-HWHTF

$1.49

$

In Stock, Qty 20+

0

18

Toro 125-8435-03

GUARD-TOE, FRONT

$23.99

$

Usually ships in 3-6 days

0

23

Toro 119-2368

DECAL-RECYCLER

$6.49

$

In Stock, only 2 left!

0

24

Toro 125-8420

DECAL

$3.99

$

Usually ships in 3-6 days

0
