22276 - Toro 53cm Heavy-Duty 60V Recycler Walk-Behind Mower (SN: 400000000 - 999999999) Handle Assembly Parts Diagram

53cm Heavy-Duty 60V Recycler Walk-Behind Mower

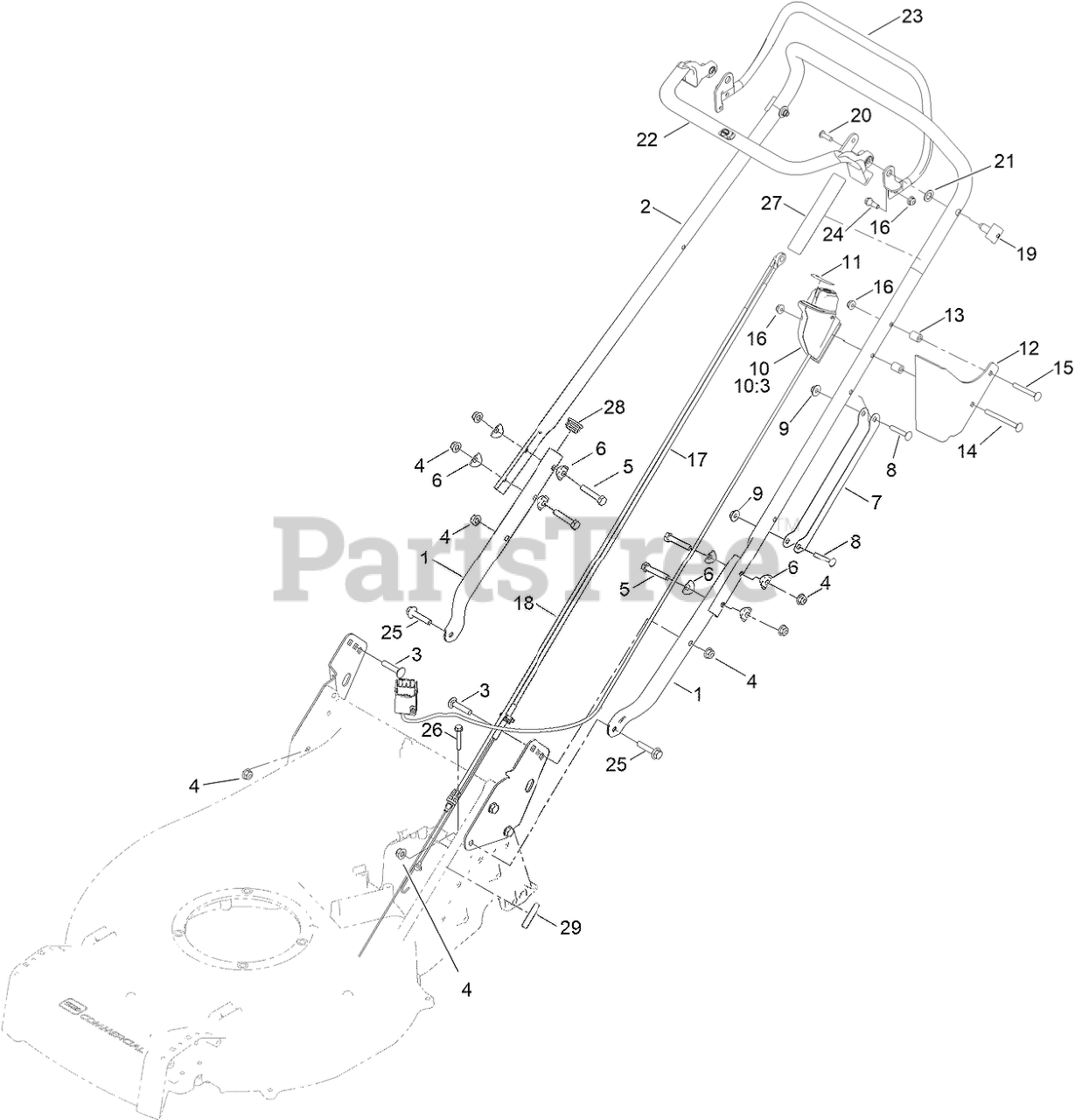

Handle Assembly Parts Diagram

  • Title

1

Toro 134-5087-03

LOWER HANDLE

$36.99

$

Usually ships in 3-6 days

0

2

Toro 145-4022-03

HANDLE-UPPER

$111.99

$

Usually ships in 0 days

0

3

Toro 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 10

0

4

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Toro 322-39

SCREW-HH
(Superseded to 322-13)

$3.49

$

In Stock, Qty 20+

0

6

Toro 137-3009

WASHER-CUP

$0.99

$

In Stock, Qty 10

0

7

Toro 134-5187-03

GUARD-CABLE, HANDLE

$17.99

$

Usually ships in 3-6 days

0

8

Toro 108-0988

SCREW-CARR

$0.99

$

In Stock, only 3 left!

0

9

Toro 114-3778

NUT-HF

$1.49

$

In Stock, Qty 15

0

10

Toro 140-3891

STARTER SWITCH ASM

$41.99

$

Usually ships in 3-6 days

0

10:3

Toro 140-4231

STARTER BUTTON SERVICE ASM

$5.99

$

Usually ships in 3-6 days

0

11

Toro 134-4691

DECAL CONTROL SPEED

$

$

Currently unavailable

12

Toro 140-4168-03

GUARD-HOUSING, SWITCH

$18.99

$

Usually ships in 3-6 days

0

13

Toro 134-5188

SPACER

$1.49

$

Usually ships in 3-6 days

0

14

Toro 137-9142

SCREW-CARR

$3.49

$

Usually ships in 3-6 days

0

15

Toro 136-7081

SCREW-CARR

$2.99

$

Usually ships in 3-6 days

0

16

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

17

Toro 145-1483

CABLE-TRACTION, 60V

$49.99

$

Usually ships in 3-6 days

0

18

Toro 144-3180

CABLE-BRAKE

$29.99

$

Usually ships in 3-6 days

0

19

Toro 340182

PIN-PIVOT

$

$

Currently unavailable

20

Toro 09687

SCREW

$

$

Currently unavailable

21

Toro 09688

WASHER-NYLON

$

$

Currently unavailable

22

Toro 111-9662

OPC LEVER - ENGINE

$

$

Currently unavailable

23

Toro 111-9381-03

LEVER-CLUTCH, GEARBOX

$

$

Currently unavailable

24

Toro 42-3560

BOLT-SHOULDER

$5.99

$

In Stock, Qty 11

0

25

Toro 115-1794

SCREW-HHF

$2.49

$

In Stock, Qty 8

0

26

Toro 94-2691

SCREW-HWH

$1.49

$

Usually ships in 3-6 days

0

27

Toro 144-3175

DECAL-CONTROLS (60V START)

$6.99

$

Usually ships in 3-6 days

0

28

Toro 144-6379

PLUG-ROUND TUBE, 1 IN.

$4.49

$

Usually ships in 3-6 days

0

29

Toro 131-0822

DECAL

$5.99

$

Usually ships in 3-6 days

0
